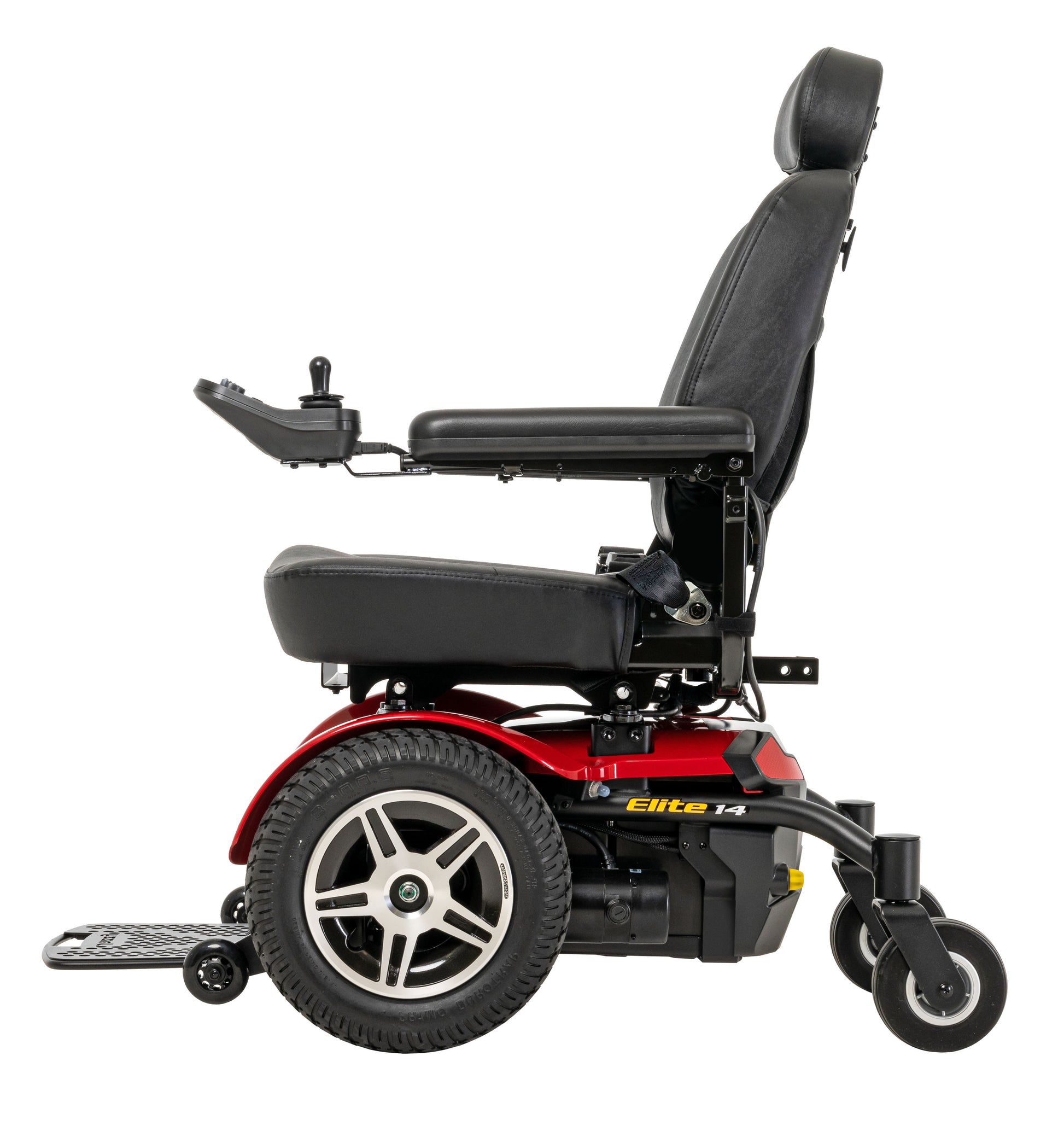

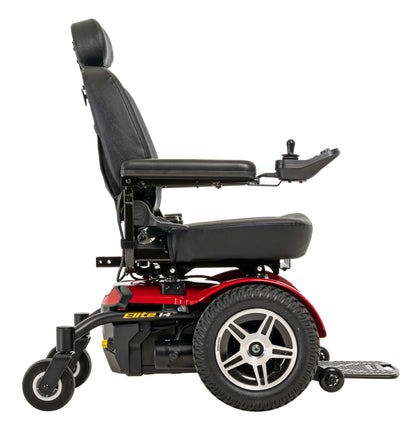

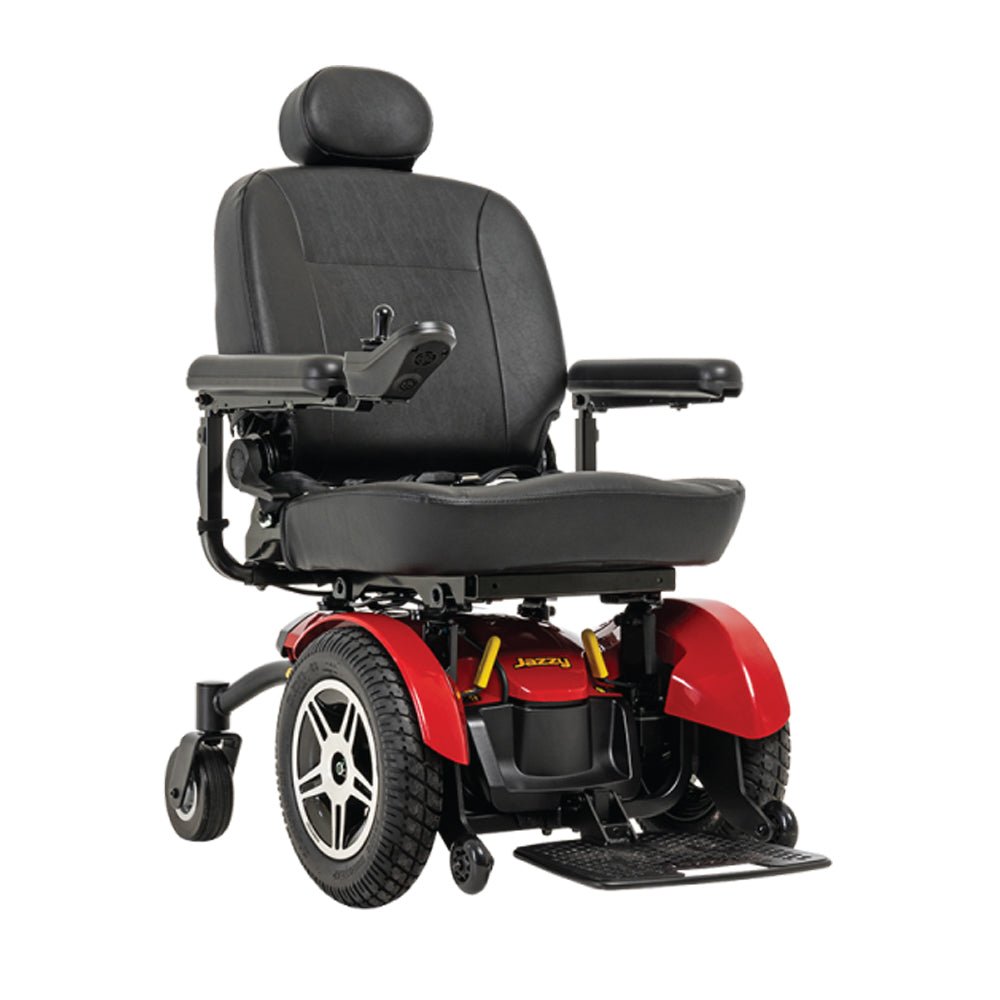

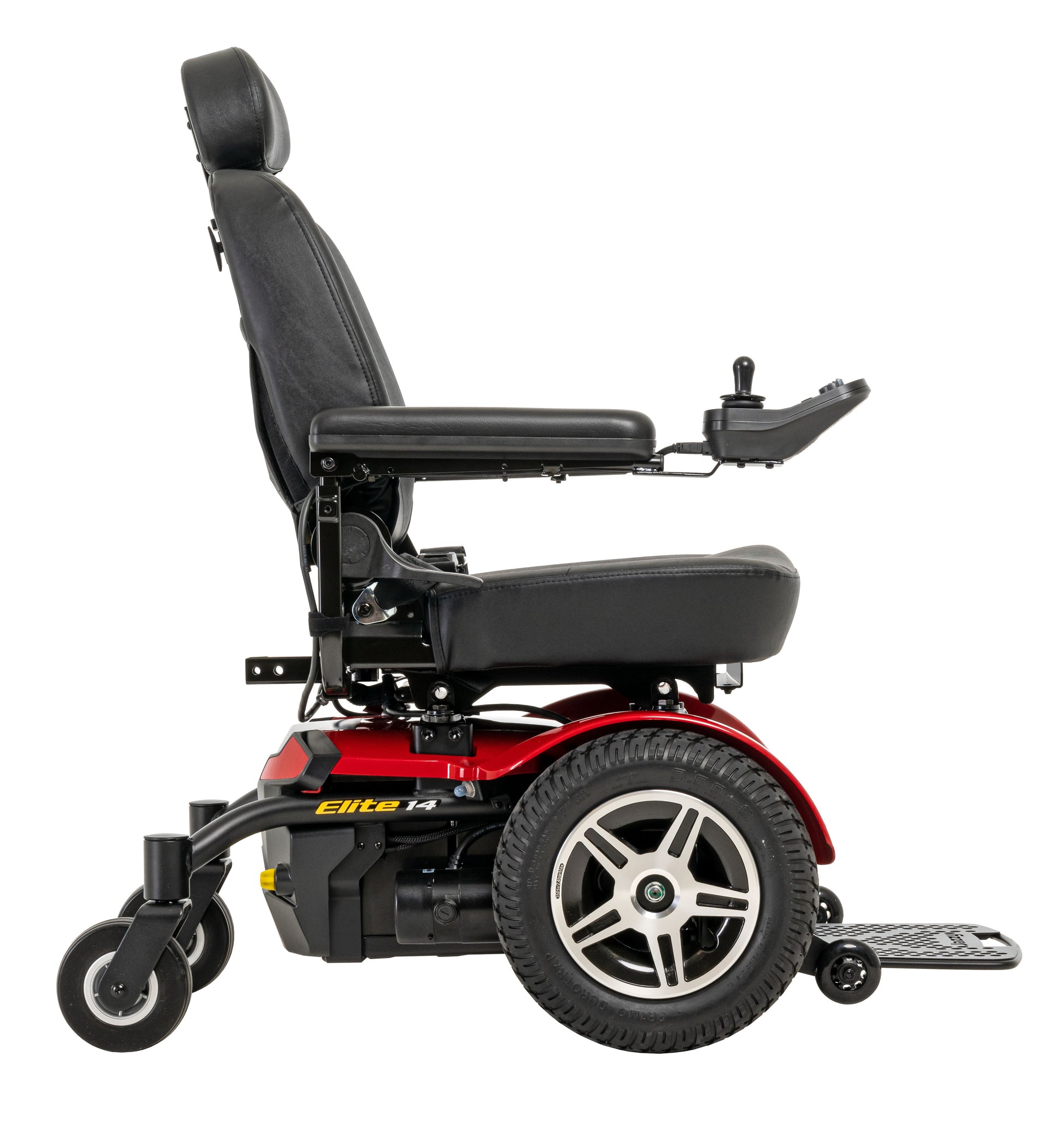

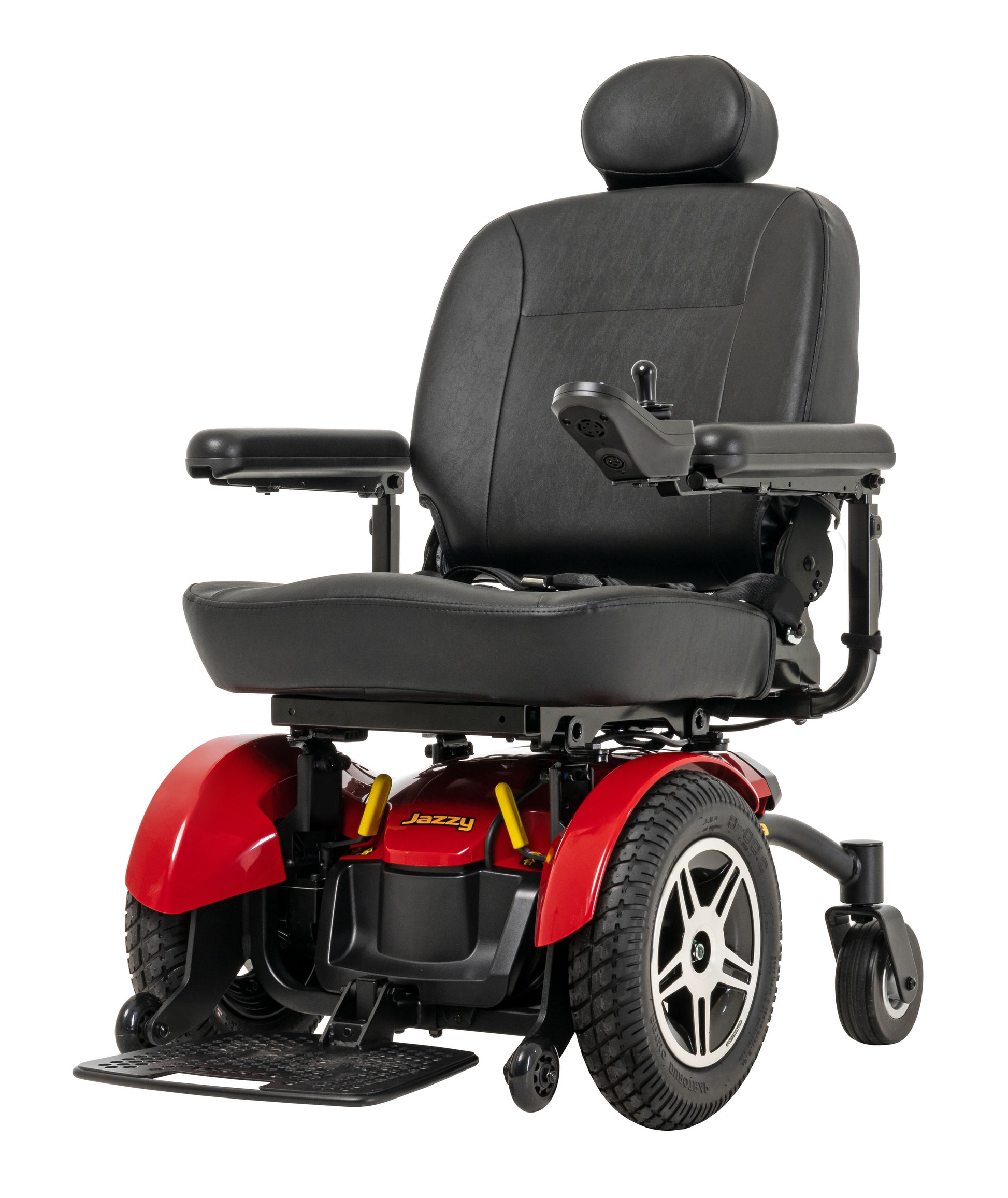

Jazzy Elite 14 (FDA Class II Medical Device)

Jazzy Elite 14 (FDA Class II Medical Device)

by Pride Mobility
SKU JELITE14
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in San Diego County)
Description

An elite design delivers elite performance. The Jazzy® Elite 14 features front-wheel drive for the tightest turns. Large drive wheels provide superior climbing power over life’s obstacles. A high-back seat ensures absolute comfort all day.

The Jazzy  Elite 14 offers a 300 lbs. weight capacity and excellent performance in a stylish, highly maneuverable package.

Features
  • 300 lbs. weight capacity
  • Up to 4 mph maximum speed
  • 24" turning radius
  • Up to 18 miles per charge at 300 lbs., Up to 21 miles at 200 lbs.
  • Comfortable, depth-adjustable, limited recline high-back seat with headrest
  • Easy rear access to batteries
  • Intuitive controller is easy to operate
  • Angle-adjustable foot platform offers greater comfort
  • Front-wheel drive design for excellent maneuverability
  • 14" knobby tires and optimum weight distribution provide superior traction
  • Red or blue color-through shroud
  • 40A Dynamic Linx controller
  • Extended 13-month limited warranty
  • HCPCS Code: Group 2: Standard (K0822/K0823)
Specification

Size

  • Overall Dimensions:
    • With Foot path: 42.5" l x 24.25" w (108x61cm)
    • Without Foot path: 35.5" l x 24.25" w (90x61cm)
  • Seat Dimensions:
    • 18" x 18"-20" (46x46x51cm)
    • 20" x 18"-20" (51x46x51cm)
    • 22" x 20"-22" (56x51x56cm)
  • Turning Radius: 24" (61cm)
  • Wheel Size:
    • Front Wheels (Solid anti- tips): 3” (8cm)
    • Drive Wheels Foam Filled: 14" (35cm)
    • Rear Wheels Solid Casters: 6" (15cm)

Details

  • Maximum Speed: Up to 4 mph
  • Ground Clearance: 3” at battery tray
  • Range Per Charge: Up to 18 miles @ 300 lbs.; Up to 21 miles @ 200 lbs.
  • Drivetrain: Two motor, front-wheel drive
  • Braking System: Regenerative and electro-mechanical
  • Suspension Type: Limited
  • Standard Electronics: 40A, Dynamic LiNX controller
  • Battery Requirements: (2) 12 volt, NF-22 batteries
  • Battery Charger: 5 amp, off-board
  • Battery HCPCS Code: E2361
  • Ground Clearance: 3” at battery tray
  • Front Wheels: 3” solid anti-tips
  • Drive Wheels: 14” foam filled
  • Rear Wheels: 6” solid casters
  • Weight Capacity: 300 lbs.
  • Component Weights:
    • Base: 99 lbs. (heaviest piece)
    • Seat Wide: 18” - 51.8 lbs.
    • Seat wide: 20” - 54 lbs.
    • Seat Wide: 22” - 57.6 lbs.
    • Batteries: 37 lbs. each
  • Warranty
    • Frame: 5-year limited
    • Drivetrain: 13-month
    • Electronics: 13-month
    • Battery: 13-month
