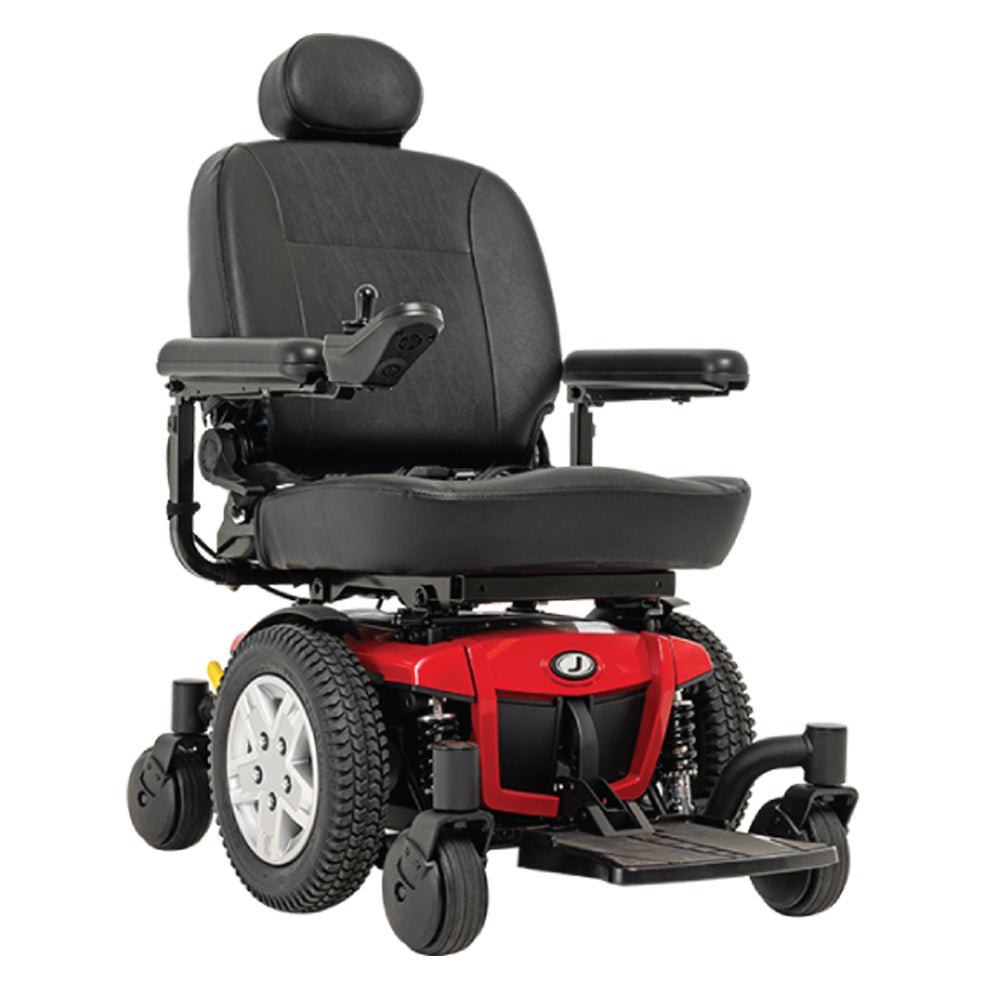

Jazzy 600 ES (FDA Class II Medical Device)

SKU J600ES
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in San Diego County)
Description

Life may be complicated, yet your power chair should be simple. The Jazzy 600 ES has 14-inch drive wheels and independent front casters that handle terrain changes easily. Enjoy aggressive precision, a tight turning radius and a flawless design.

The Jazzy 600 ES provides excellent performance and outstanding stability. Its compact design and standard Active-Trac ATX Suspension allow it to excel indoors and out, making it a superb, all-around power chair choice.

Features
  • 300 lbs. weight capacity
  • Up to 4 mph
  • 20.5" turning radius
  • Mid-Wheel 6 Technology
  • Up to 24.8 miles per charge (300 lbs.)
  • Depth adjustable, limited recline high back seat
  • In-line joystick mount
  • Flip-up, height adjustable foot platform
  • Black, flat-free, non-marking tires
  • OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
  • Side-mounted, easily accessible freewheel levers
  • Active-Trac ATX Suspension for enhanced performance over more varied terrain
  • Easy front access to batteries
  • HCPCS Code: Group 2: Standard (K0822/K0823)
Specification

Size

  • Overall Dimensions:
    • With Footpath: 40.25" l x 24.5" w (102x62cm)
    • Without Footpath: 35.5" l x 24.5" w (90x62cm)
  • Seat Dimensions:
    • 18” x 18 - 20” (45.7x46-51cm)
    • 20” x 18 - 20” (51x46-51cm)
    • 22" x 20 - 22" (56x51-56cm)
  • High-Back Seat (max. size): 20" w x 20" d (51x51cm)
  • Seat-to-Floor Range: 21”– 24” (53-61cm)
  • Synergy Seating: 20” w x 20” d (51x51cm)
  • Synergy Seat-to-Floor Range: 17.25” - 19.25" (44-49cm)
  • Turning Radius: 20.5" (52cm)
  • Wheel Size:
    • Front Wheels solid OMNI-Casters : 6" (15cm)
    • Drive Wheels foam filled: 14" (35cm)
    • Rear Wheels solid OMNI-Casters: 6" (15cm)

Details

  • Maximum Speed: Up to 4 mph
  • Ground Clearance: 2.75"
  • Range Per Charge: Up to 24.8 miles (300 lbs.), up to 29.5 miles (200 lbs.)
  • Drivetrain: Two-motor, mid-wheel drive
  • Braking System: Regenerative and electro-mechanical
  • Suspension Type: Active-Trac (ATX) with Mid Wheel 6 Technology
  • Standard Electronics: 50A, Dynamic LiNX
  • Battery Requirements: (2) 12 volt, NF-22
  • Battery Charger: 5 amp, off-board
  • Standard Seat Weight: 18" wide - 51.8 lbs.; 20" wide - 54 lbs.
  • Weight Capacity: 300 lbs.
  • Component Weights:
    • Base: 124 lbs. (heaviest piece)
    • Seat: 52 lbs. (comfortable high-back)
    • Batteries: 37 lbs. each
  • Warranty
    • Frame: 5-year limited
    • Drivetrain: 13-month
    • Electronics: 13-month
    • Battery: 13-month
