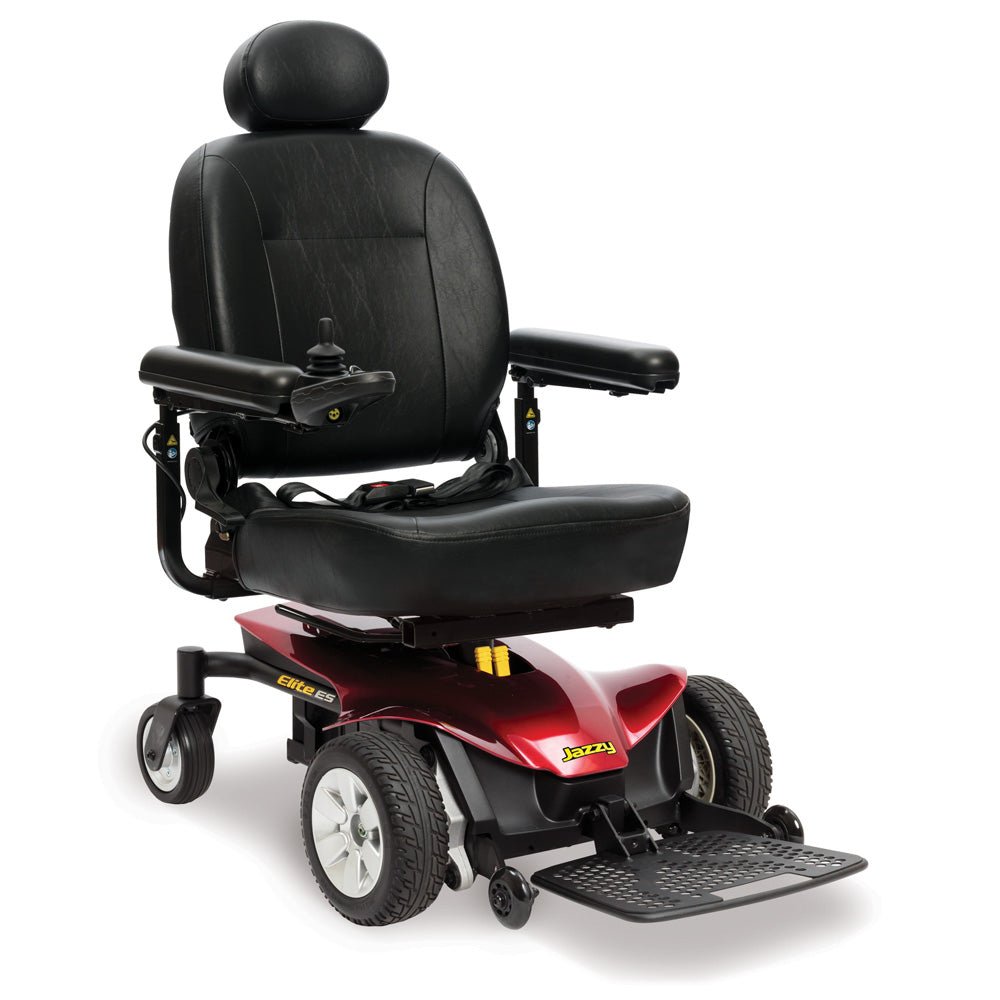

Jazzy Elite ES (FDA Class II medical device)

Jazzy Elite ES (FDA Class II Medical Device)

by Pride Mobility
SKU JELITEES
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in             San Diego County)
Description

An experience so superior, it can only be elite. The Jazzy Elite ES features large, front-drive wheels to absorb the bumps and uneven surfaces of everyday life. The comfortable, high-back seat gives you the support you need all day, every day.

The Jazzy Elite ES delivers a reliable blend of power, performance and style. In-line, front-wheel drive technology gives the Elite ES excellent stability and maneuverability for solid performance indoors and out.

Features
  • 300 lbs. weight capacity
  • Up to 4 mph
  • 24.75" turning radius
  • Up to 13.5 miles per charge
  • In-line, front-wheel drive technology provides tight turns around corners
  • Comfortable, depth-adjustable, limited recline high-back seat with headrest
  • 40-apm, PG GC 3 controller
  • Optimal indoor maneuverability in small spaces
  • Large front wheels for extra absorption over obstacles
  • Available in Candy Apple Red
  • HCPCS Code: Group 2: Standard (K0822/K0823)
Specification

Size

  • Overall Dimensions
    • With Footplate: 41" l x 22.75" w (104x58cm)
    • Without Footplate: 34.75" l x 22.75" w (89x58cm)
  • Seat Dimensions:
    • 16" x 16" - 18" (41x41x46cm)
    • 18" x 18" - 20" (41x41x51cm)
    • 20" x 18" - 20" (51x41x51cm)
  • Turning Radius: 24.75" (63cm)
  • Wheel size
    • Front Wheels solid anti-tips: 3" (8cm)
    • Drive Wheels solid: 9" (23cm)
    • Rear Wheels solid casters: 6" (15cm)
  • Ground Clearance at motors: 1.85" (5cm)
  • High-Back Seat (max. size): 20" w x 20" d (51x51cm)
  • High-Back Seat-to-Floor Range: 21.5" - 23.5" (55-60cm)

Details

  • Maximum Speed: Up to 4 mph
  • Drivetrain: Two-motor, in-line, front-wheel drive
  • Braking System: Regenerative and electro-mechanical
  • Suspension Type: Limited
  • Per Charge Range: Up to 15 miles
  • Standard Electronics: 40A, PG GC3
  • Battery Requirements: (2) 12 volt, U-1 batteries
  • Battery Charger: 3.5 amp, off-board
  • Weight Capacity: 300 lbs.
  • Weight of Heaviest Piece: 69 lbs.
  • Standard Seat Weight: 50.2 lbs. (comfort, high-back)
  • Battery Weight: 25 lbs. each
  • Warranty:
    • Frame: 5-year limited
    • Drivetrain: 13-month
    • Electronics: 13-month
    • Battery: 13-month
