Description

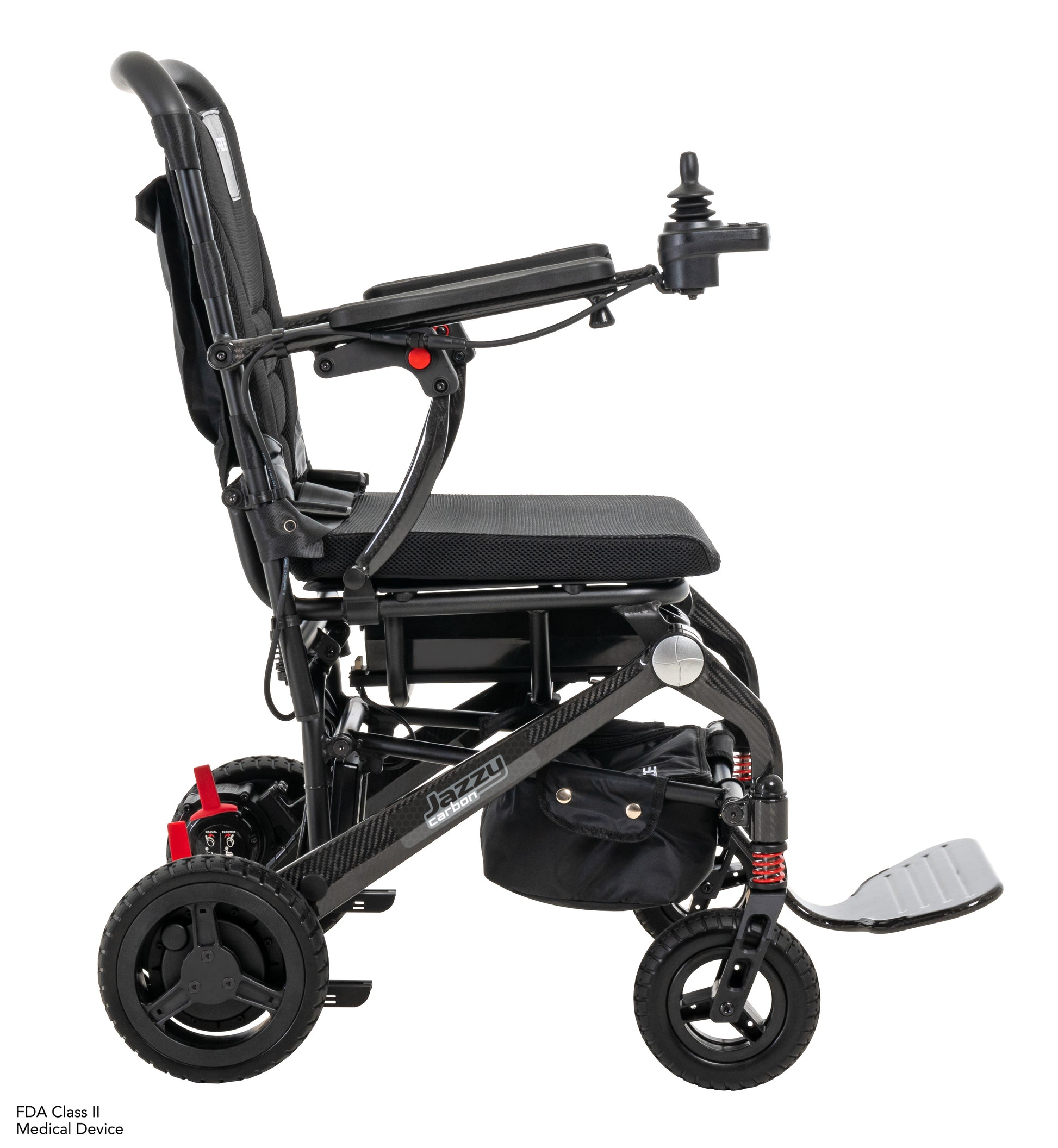

You know Jazzy for its industry-leading performance and quality. Now let’s talk about portability. the Jazzy Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery. With carbon fiber technology, the Jazzy Carbon Power Wheelchair becomes your greatest travel companion. Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.
Jazzy EVO 614HD has tall 13.75-inch drive wheels, the centerpiece for Pride’s beloved Mid-Wheel 6 platform. Active-Trac ATX Suspension adapts to the terrain, so grassy fields and paths feel smoother than they ever have before.
Features
- 300 lb. weight capacity
- Removable joystick for transporting with built in USB charger
- Airline compliant lithium battery
- Front suspension for a smooth ride
- Ultra-lightweight, carbon fiber frame specifically designed for traveling
- Compact base easily folds and unfolds for easy transport in a few easy steps
- Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
- Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
- Included under-seat storage and adjustable lap belt

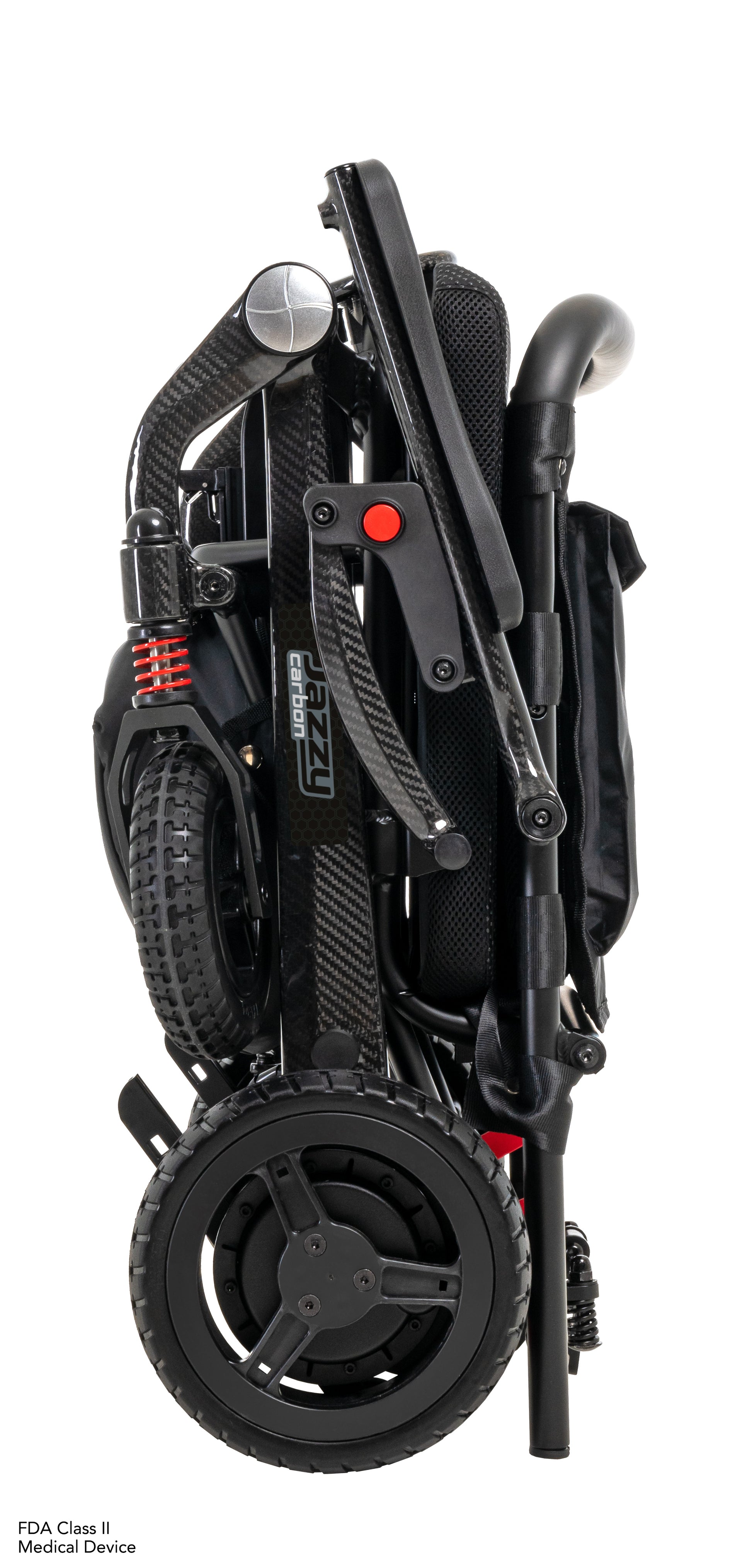

- When folded 28.3"x12.2"x24"
Specification
Size
- Overall Dimensions: 37" l x 24" w (94x61cm)
- Seat Dimensions: 17" x 17" (43x43cm)
- Seat-to-Floor Range with Standard Cushion: 20.75" (53cm)
- Seat-to-Floor Range without Cushion: 18.75" (48cm)
- Seat-to-Ground Height: 19" (48cm)
- Seat-to-Foot Platform Height no adjustment: 14.5" (37cm)
- Turning Radius: 24" (61cm)
- Wheel Size:
- Front Wheels: 7" (18cm)
- Rear Wheels: 8.5" (21cm)
Details
- Maximum Speed: Up to 3.7 mph
- Battery Sizes: 24V 12AH (288WH)
- Suspension: Front
- Standard Seating: Material: Black, Foam
- Per Charge Range: Up to 9.3 miles
- Drivetrain: 24v/250W Brushless motors
- Standard Electronics: 35A Brushless Micon
- Braking System: Regenerative and electromechanical
- Battery Charger: Off-board, 2-amp lithium-ion
- Battery Requirements: 24V 12AH (288WH) lithium-ion
- Weight:
- Weight Capacity: 300 lbs.
- Component Weights:
- Base: 39.6 lbs.
- Battery: 4 lbs.
- Total Weight: 43.6 lbs. with batteries
- Warranty:
- Frame: Lifetime limited
- Drivetrain: 1-year limited
- Electronics: 1year limited
- Batteries: 1-year limited
