Description

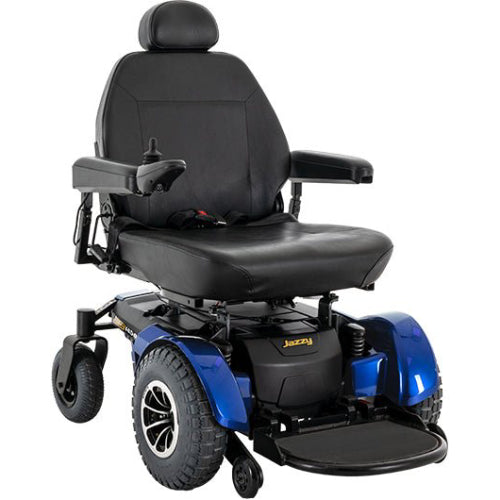

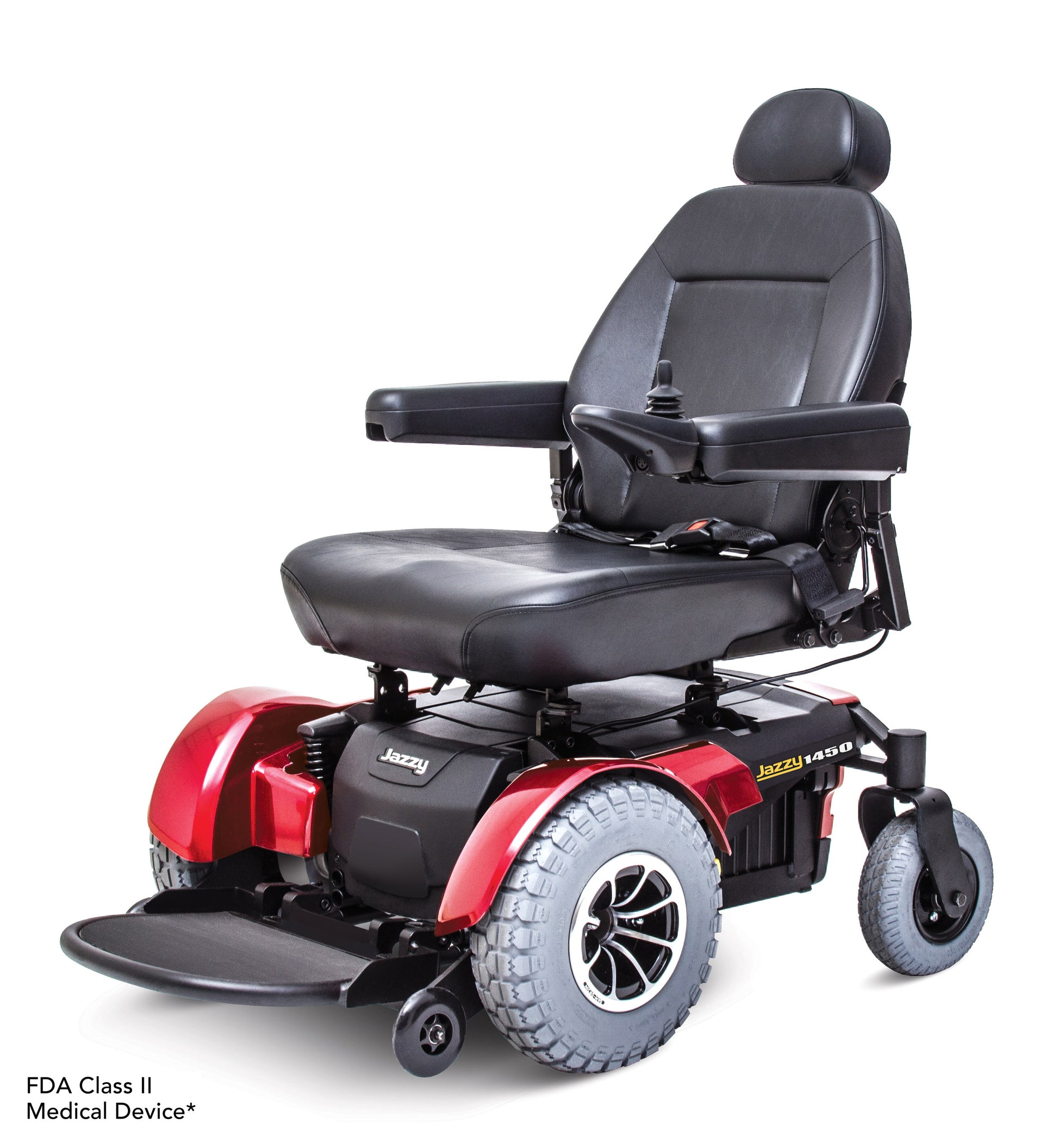

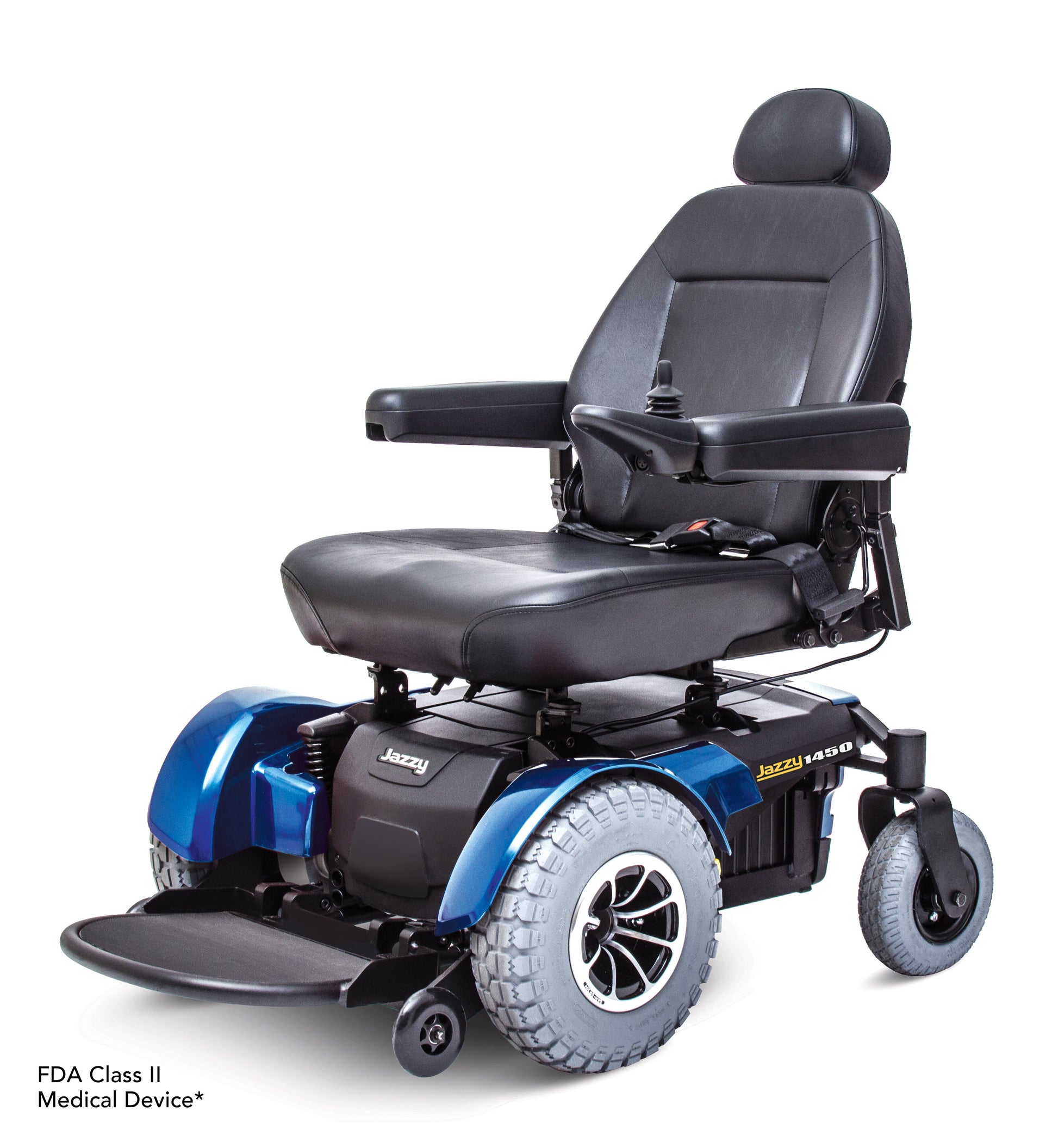

With a robust and heavy-duty design, the Jazzy 1450 ensures powerful performance with front-wheel drive and efficient motors. Knobby drive tires provide the traction you need over uneven terrain. With speeds up to 4.5 mph, live life on your terms.
Jazzy EVO 614HD has tall 13.75-inch drive wheels, the centerpiece for Pride’s beloved Mid-Wheel 6 platform. Active-Trac ATX Suspension adapts to the terrain, so grassy fields and paths feel smoother than they ever have before.
Features
- Black vinyl high-back seat
- Flat-free drive tires
- Universal, fixed, in-line joystick mount
- Large 17" x 13" foot platform
- 600 lbs. weight capacity
- Up to 4.5 mph maximum speed
- 26.5" turning radius
- Up to 15.7 miles per charge
- Maximum performance, extremely efficient motor package
- HCPCS Code: Group 2: Very Heavy Duty (K0826/K0827)
Single Power Very Heavy Duty (K0839)
Specification
Size
- Overall Dimensions: 38.25" l x 29.25" w (97x74cm)
- Seat Dimensions:
- 22" x 20" (56x51cm)
- 24" x 24" (61x61cm)
- High-Back Seat (max. size): 32" x 28" (81x71cm)
- High-Back Seat-to-Floor Range: 20.5” – 22.5” (52x57cm)
- Synergy Seating: 32” w – 28” d (81-71cm)
- Synergy Seat-to-Floor Range: 17.25” – 19.25” (44-49cm)
- Turning Radius: 26.5" (67cm)
- Wheel Size:
- Front Wheels solid anti-tips: 4" (10cm)
- Drive Wheels solid: 14" (35cm)
- Rear Wheels solid casters: 9" (23cm)
Details
- Maximum Speed: Up to 4.9 mph
- Turning Radius: 26.5"
- Ground Clearance: 1.5” at anti-tips
- Drivetrain: Two-motor, front-wheel drive
- Braking System: Regenerative and electro-mechanical
- Suspension Type: Swing Arm
- Per Charge Range: Up to 16.5 miles
- Standard Electronics: 90A, PG VR2
- Battery Requirements: (2) 12 volt, Group 24
- Battery Charger: 8 amp, off-board
- Weight Capacity: 600 lbs.
- Component Weights:
- Base: 195 lbs. (heaviest piece)
- Seat: 52 lbs. (high-back)
- Batteries: 52 lbs. each
- Warranty:
- Frame: Lifetime limited
- Drive Motors: 13-month
- Electronics: 13-month
- Battery: 13-month
