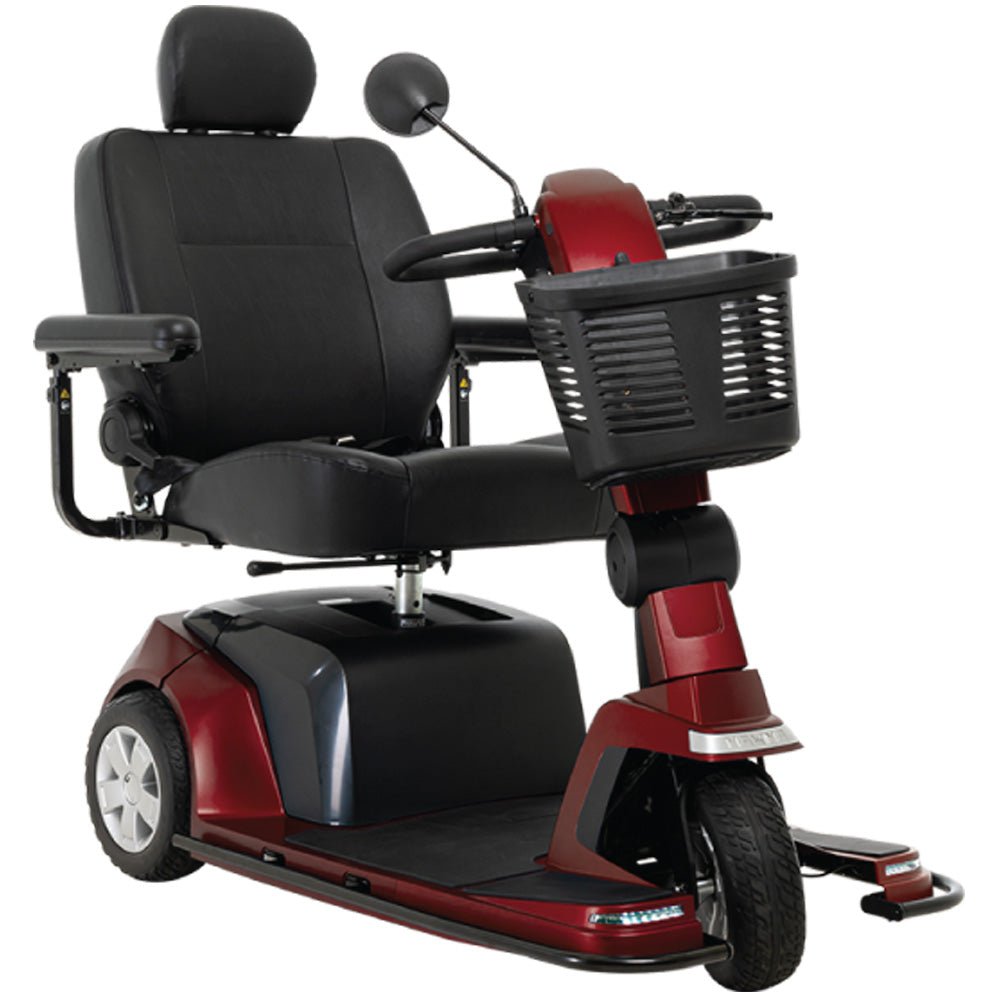

Maxima Scooter with Power Elevating Seat (FDA Class II Medical Device)

Color: Garnet Red
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in San Diego County)

This scooter has a new look. Strength and confidence define the Maxima 3-Wheel Mobility Scooter. In Pride's lineup, it has the greatest weight capacity of 500 pounds and you get mileage of up to 19.8 miles per charge. Even with those impressive range specs, Pride’s industry-leading engineers managed to squeeze top speeds of 5.8 mph in the Maxima 3-Wheel. When it comes to rider experience, we’ll start with the 22-inch captain's style seat with headrest. Adjustable armrests and a limited recline of up to 106 degrees let you find the perfect upright position for your ideal comfort.

  • Delta tiller with ergonomic wraparound handles lets you operate the scooter with one hand
  • Non-scuffing, flat-free tires
  • Full LED light package include front headlights, turn signals, and rear taillights
  • New! Infinite position tiller lever (mech lock)
  • Durable and stylish front and side bumper are designed to reduce and prevent damage to your scooter shroud
  • XLR battery charger on tiller
  • 22"x18"-20" High-back black vinyl, depth adjustable, limited recline, 4-point swivel seat and 7" headrest with 3" of adjustments
  • Standard front basket
  • User-friendly console features ambient voltmeter, horn button, light switch, on/off key switch, speed control and turn signal button
  • USB mobile device charging port built into tiller for convenient charging of smart phones and portable electronic devices
  • Optional power elevating seat provides an additional 6.25" of height to access cabinets, countertops and other out-of-reach items
  • K0802 Group 1 Very Heavy Duty


  • 47.5" h x 27" w (121x68.6cm)
  • Seat-to-Ground Heigh: 22.32" - 28.57" (57-72cm)
  • Seat-to-Deck Height: 17.36" - 23.61" (44-60cm)
  • Seat Type: Depth-adjustable, high-back
    • Seat Size: 22" w x 18" - 20" d (56x46-51cm)
  • Seat Type: Depth-adjustable
    • Back Height: 19.75" (50cm)


Black vinyl


  • Maximum Speed: Up to 5.8 mph
  • Ground Clearance: 3W: 2.5” at motor; 4W: 2.25” at motor
  • Range Per Charge: 3W: Up to 19.8 miles; 4W: Up to 19.5 miles
  • Drive System: Sealed transaxle, 24-volt DC motor
  • Dual Braking System: Regenerative and electromechanical
  • Battery Requirements: Size: (2) Gel, 12V, 58Ah, NF-22 Weight: 36.5 lbs. each
  • Battery Charger: Off-board, 5-amp
  • Weight: 53.2 lbs.
  • Weight Capacity: 500 lbs.
  • With Batteries:
    • 3W: 256.5 lbs.
    • 4W: 270 lbs.
  • Without Batteries:
    • 3W: 183 lbs.
    • 4W: 197 lbs.
  • Warranty
    • Frame: lifetime limited
    • Drivetrain: 2-year limited
    • Electronics: 2-year limited
    • Battery: 6-months
