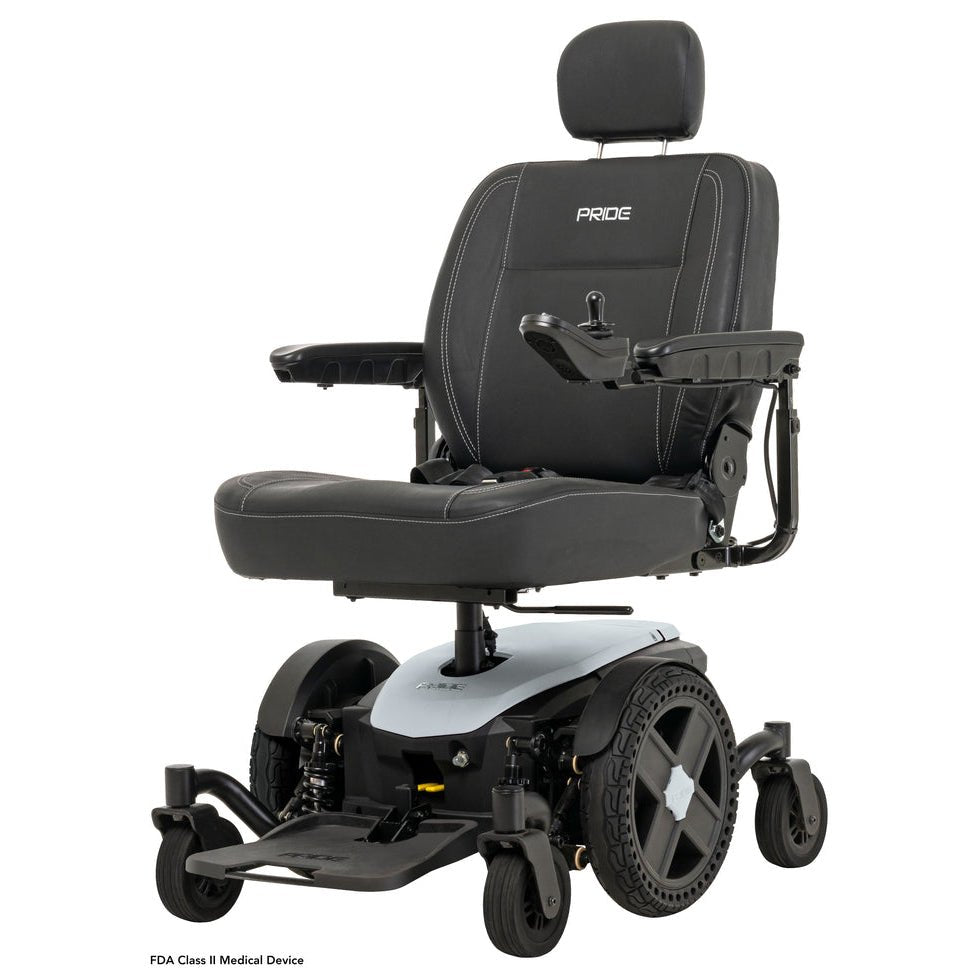

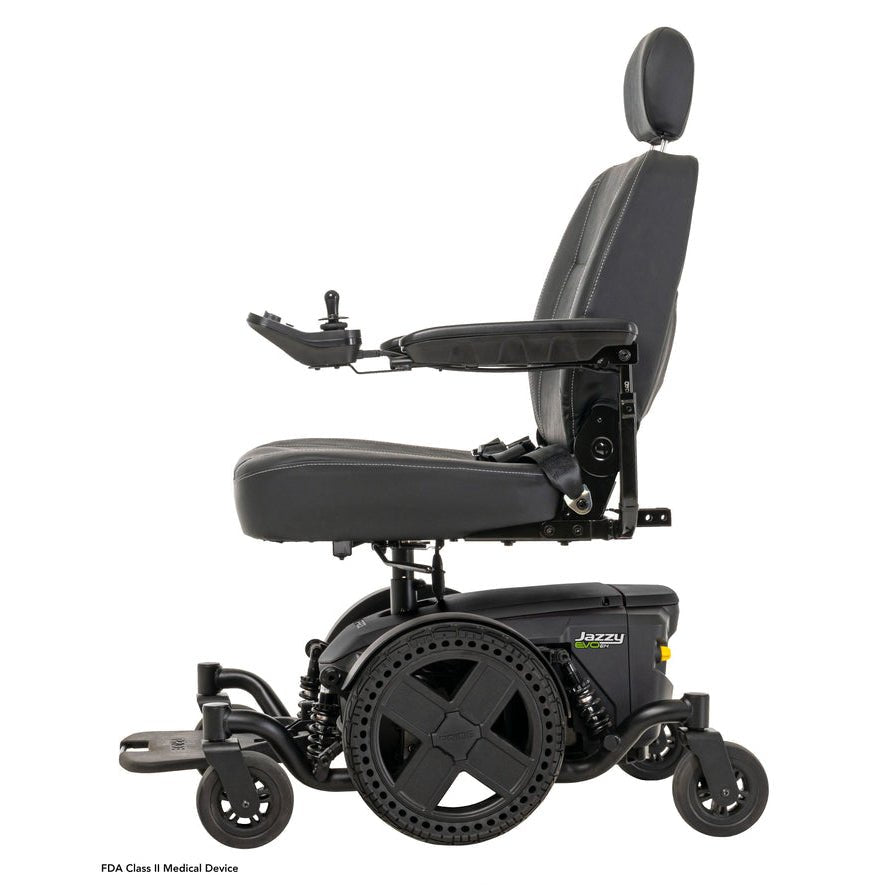

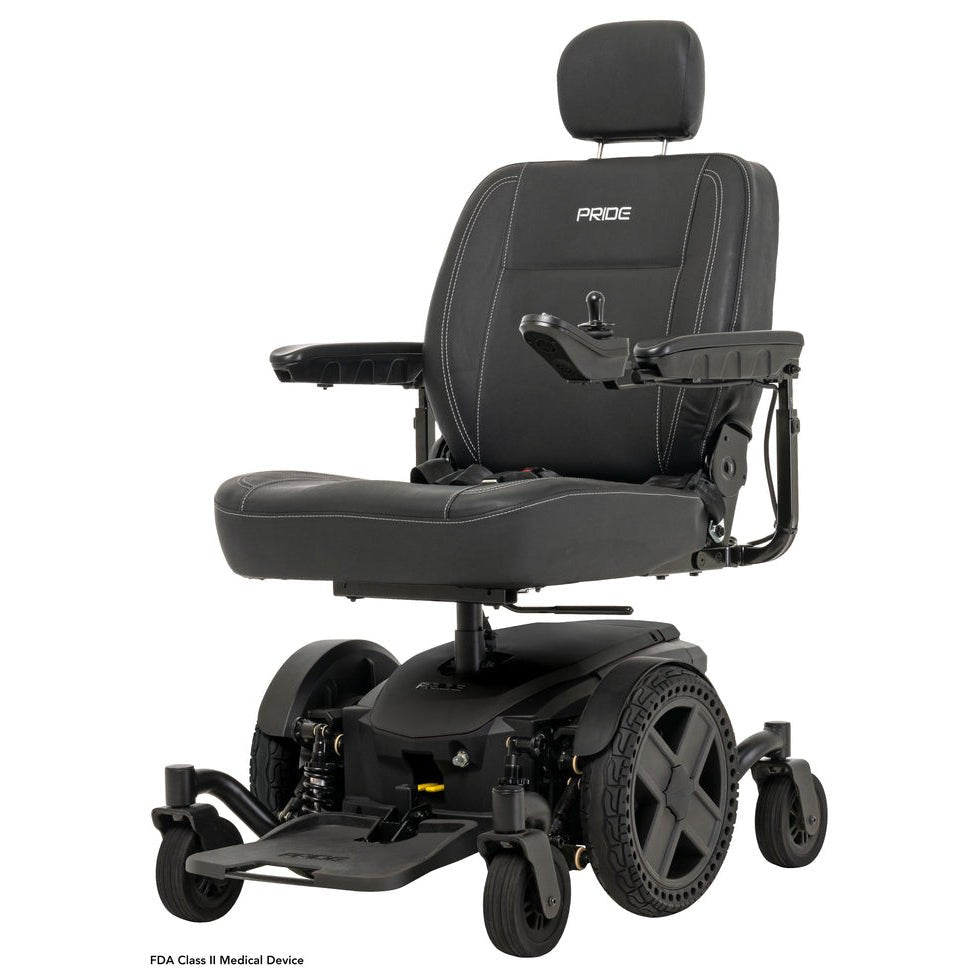

Jazzy EVO 614 (FDA Class II Medical Device)

SKU Jazzy-EVO-614-BLK
Color: Black (Matte)
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in             San Diego County)
Description

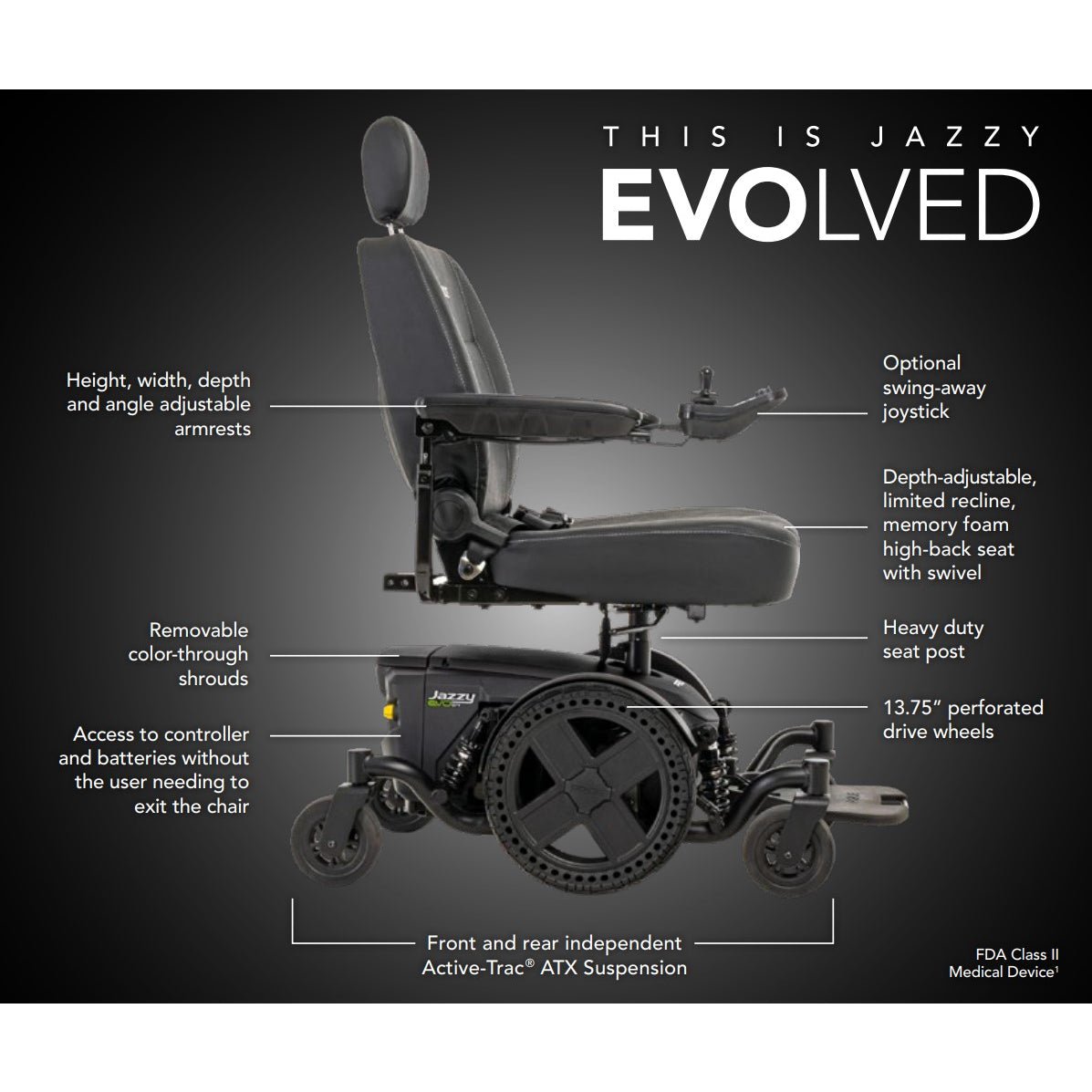

The Jazzy® EVO 614 is your ultimate mobility alternative. With new 13.75-inch center drive wheels, a 3” ground clearance and new top speed of 4.4 mph, it’s built for crossing the threshold for indoor and outdoor use. At just 22 inches, Jazzy® EVO 614’s turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.

Features
  • 300 lbs. weight capacity
  • Up to 4.4 mph
  • 22” turning radius
  • Up to 19 miles at 300 lbs., 21.5 miles at 200 lbs.

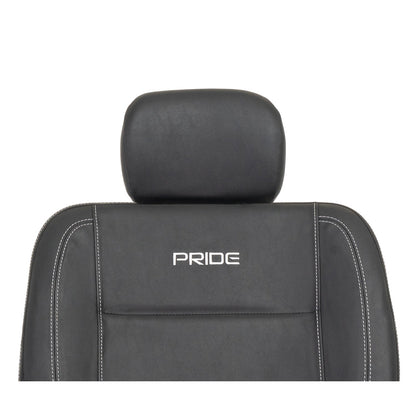

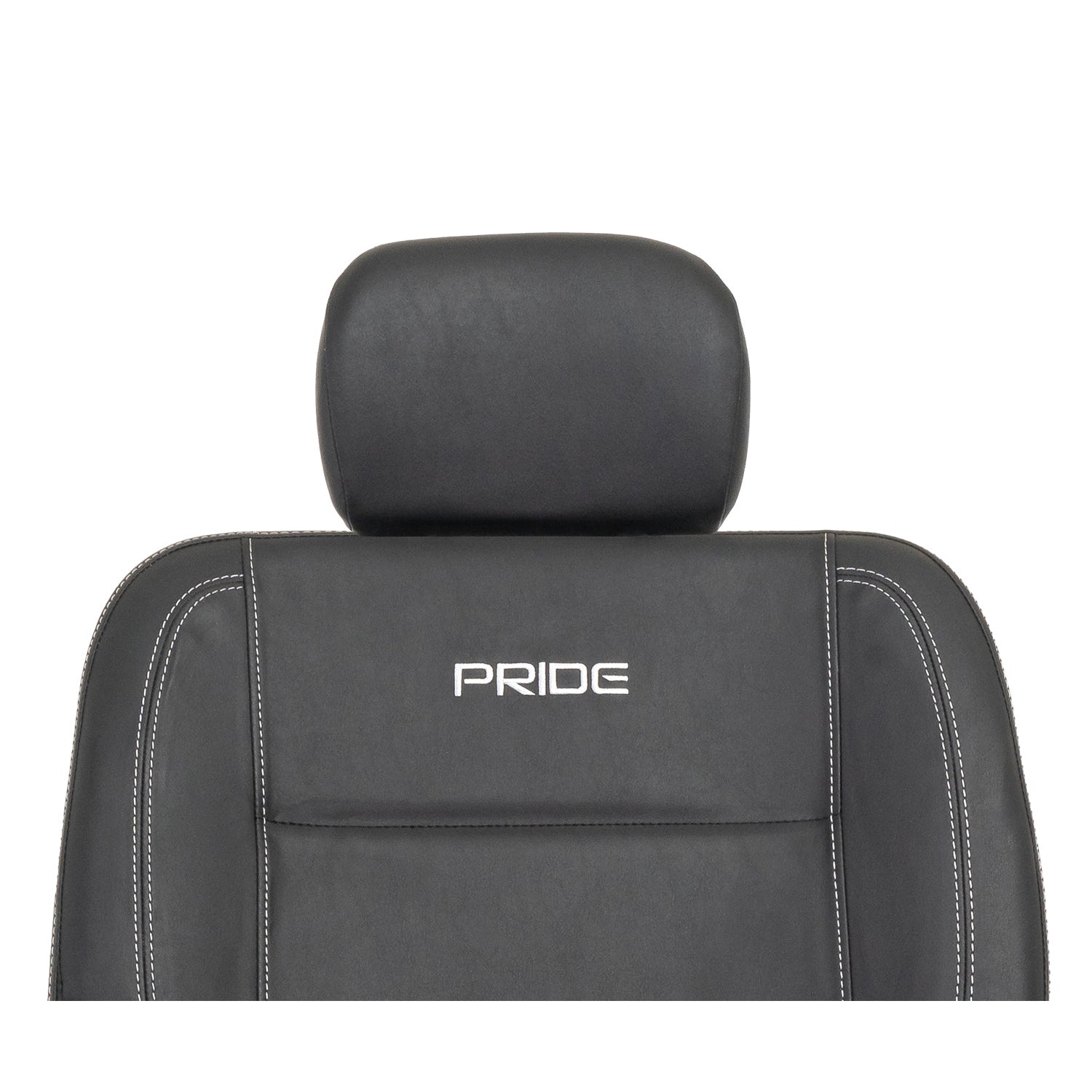

  • Depth adjustable, limited recline memory foam high-back seat with headrest and single seat post allows the user to swivel

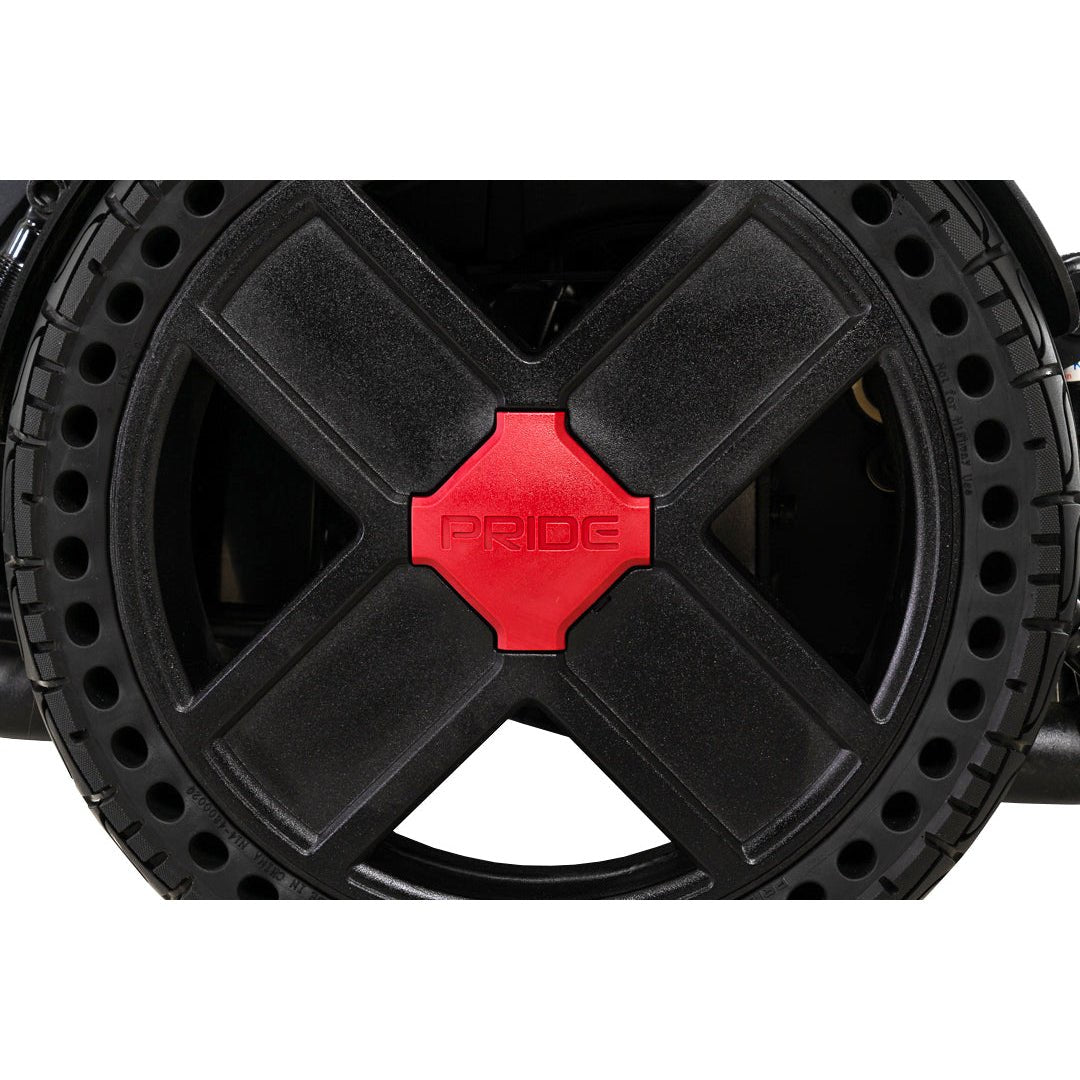

  • 13.75” perforated drive tires

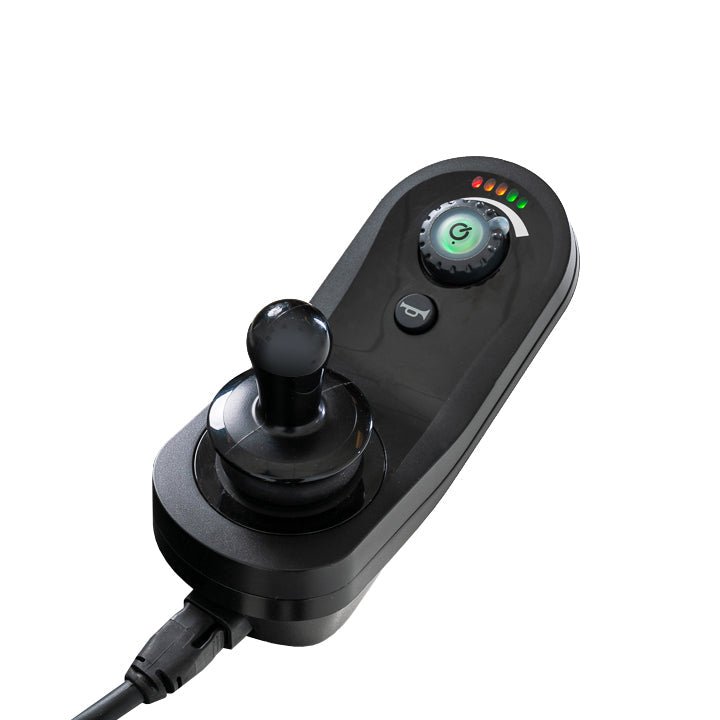

  • 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level

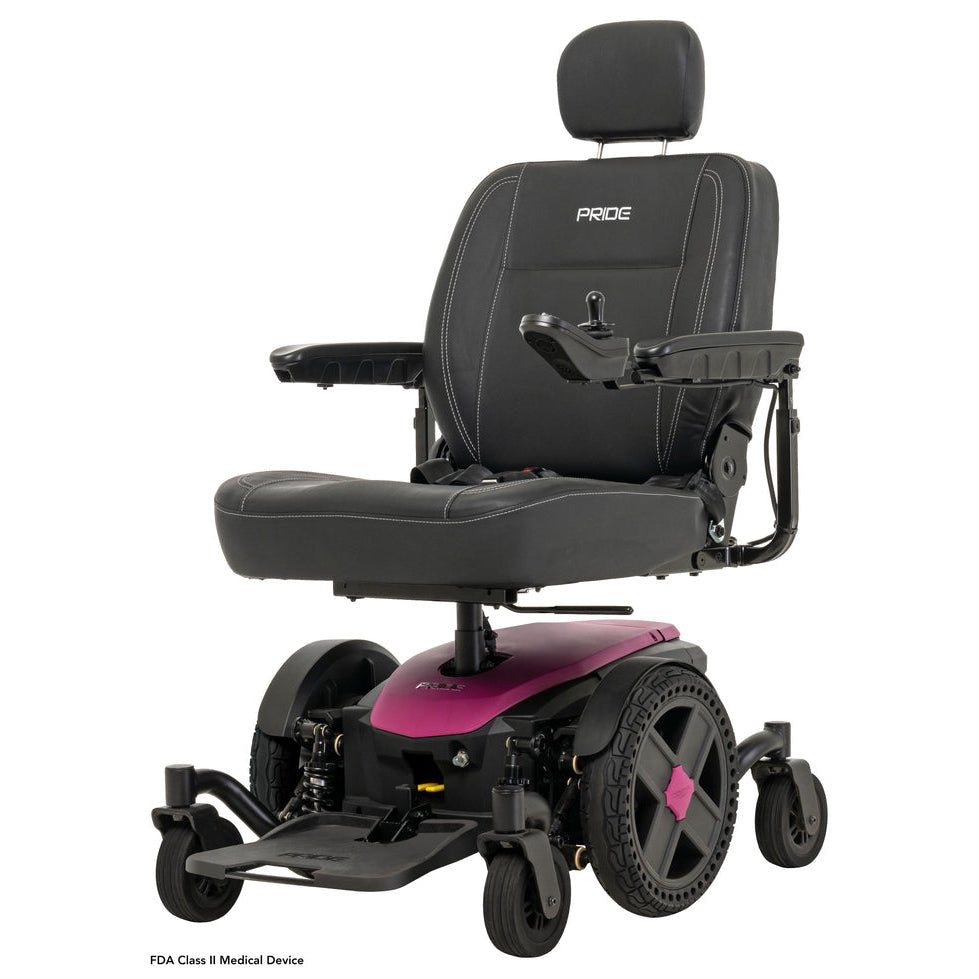

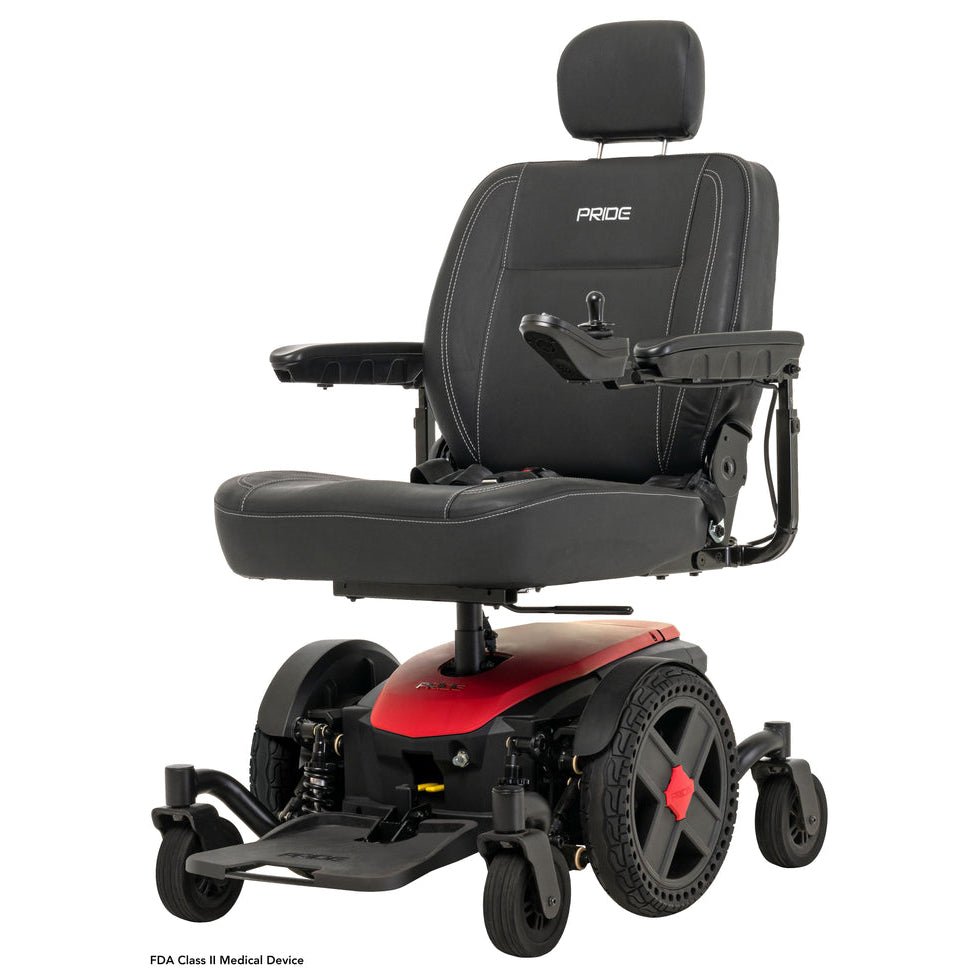

  • Removable matte finish color through shrouds and 6 colors

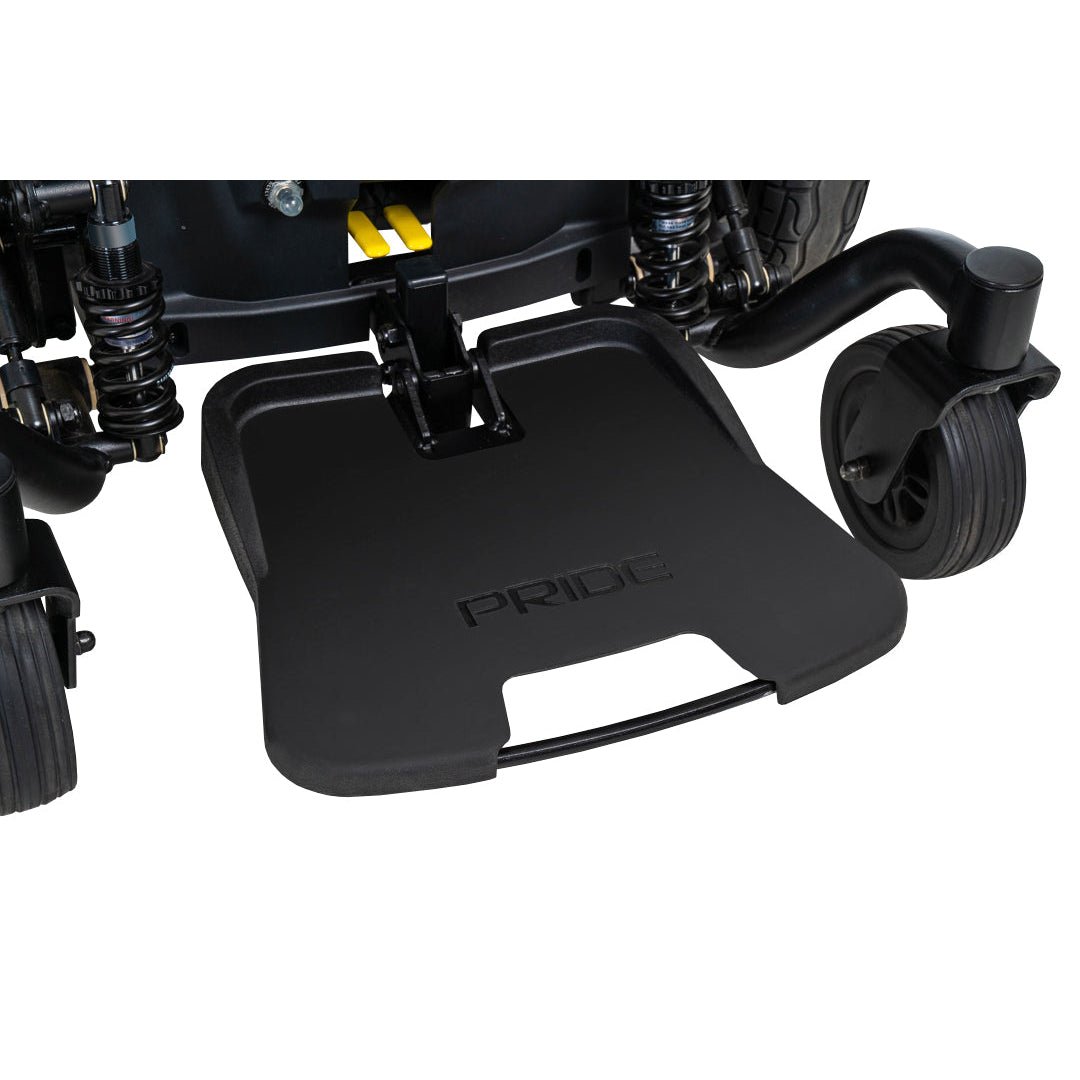

  • Flip-up, height adjustable foot platform

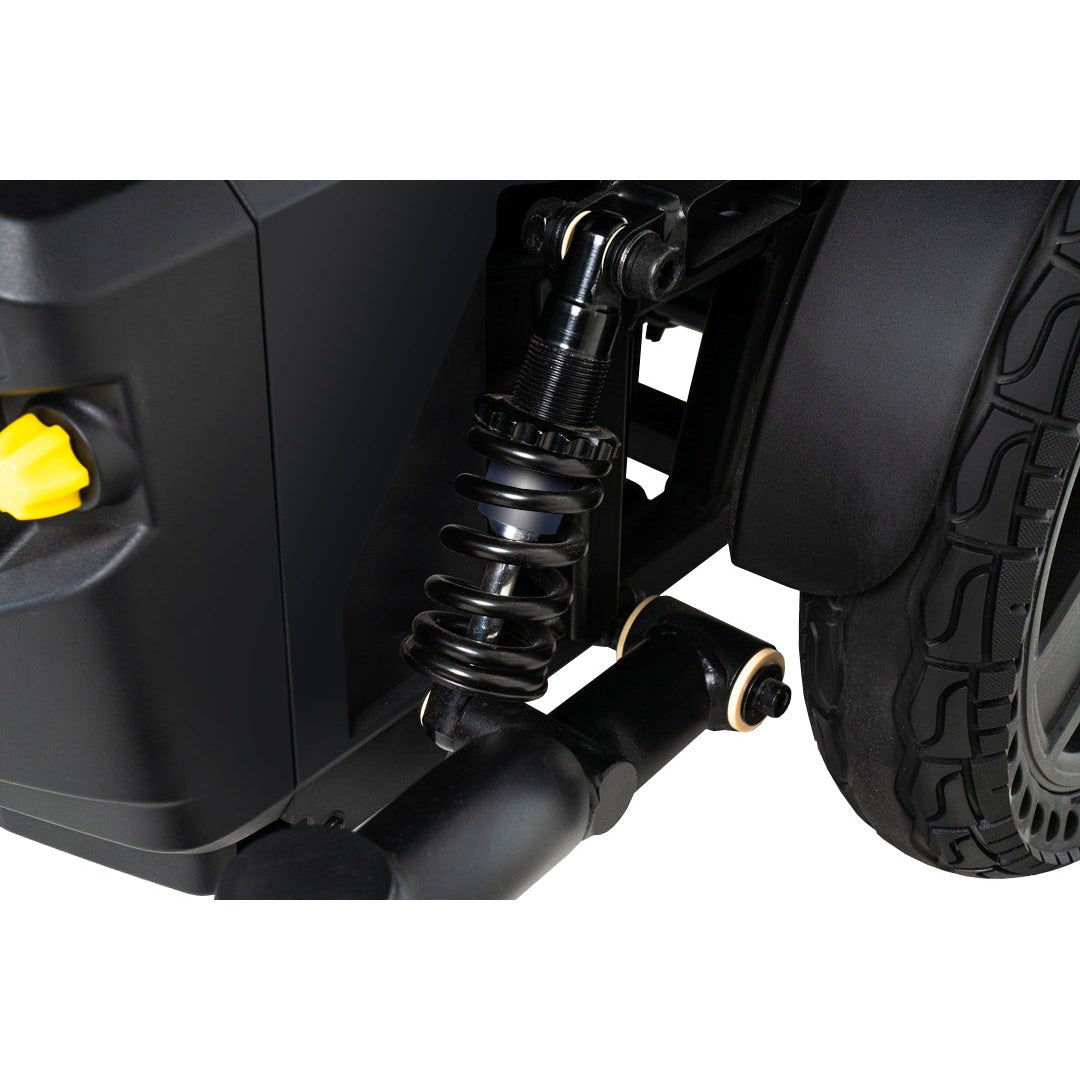

  • Full independent front and rear Active-Trac® ATX Suspension for enhanced performance over more varied surfaces such as
  • thresholds, gravel, and grassy terrains
  • In-line joystick mount
  • Convenient access to the controller and batteries while the user remains seated
  • HCPCS Code: Group 2: Standard (K0822/K0823)
Specification

Size

  • Overall Dimensions: 40.5" l x 25.4" w (103x64cm)
  • Turning Radius: 22" (56cm)
  • Ground Clearance: 3" (8cm)
  • Front & Rear Casters: 6" (15cm)
  • Drive Wheels perforated: 13.75" (35cm)
  • High-back Seat Sizes:
    • 16" x 16" - 18" (41x41-46cm)
    • 18" x 18" - 20" (46x46-51cm)
    • 20" x 18" - 20" (51x46-51cm)
  • Seat-to-Floor Range: 22" - 24" (56-61cm)

Details

  • Maximum Speed: Up to 4.4 mph
  • Drivetrain: Two in-line HD motors
  • Braking System: Regenerative and electromechanical
  • Suspension Type: Full independent front and rear Active-Trac® ATX Suspension
  • Standard Electronics: 60A, Dynamic Linx
  • Battery Charger: 5 amp, off-board
  • Battery Requirements: (2) NF-22
  • Warranty:
    • Frame: 5-year limited
    • Drivetrain: 13-month limited
    • Electronics: 13-month limited
    • Battery: 13-month limited
  • Weight Capacity: 300 lbs.
  • Per Charge Range:
    • Up to 19 miles at 300 lbs
    • Up to 21.5 miles at 200 lbs.
  • Component Weights:
    • Base: 125.7 lbs.
    • Seat: 57.8 lbs.
    • Batteries: (2) 36 lbs. each
  • Total Weight: 255.5 lbs.
