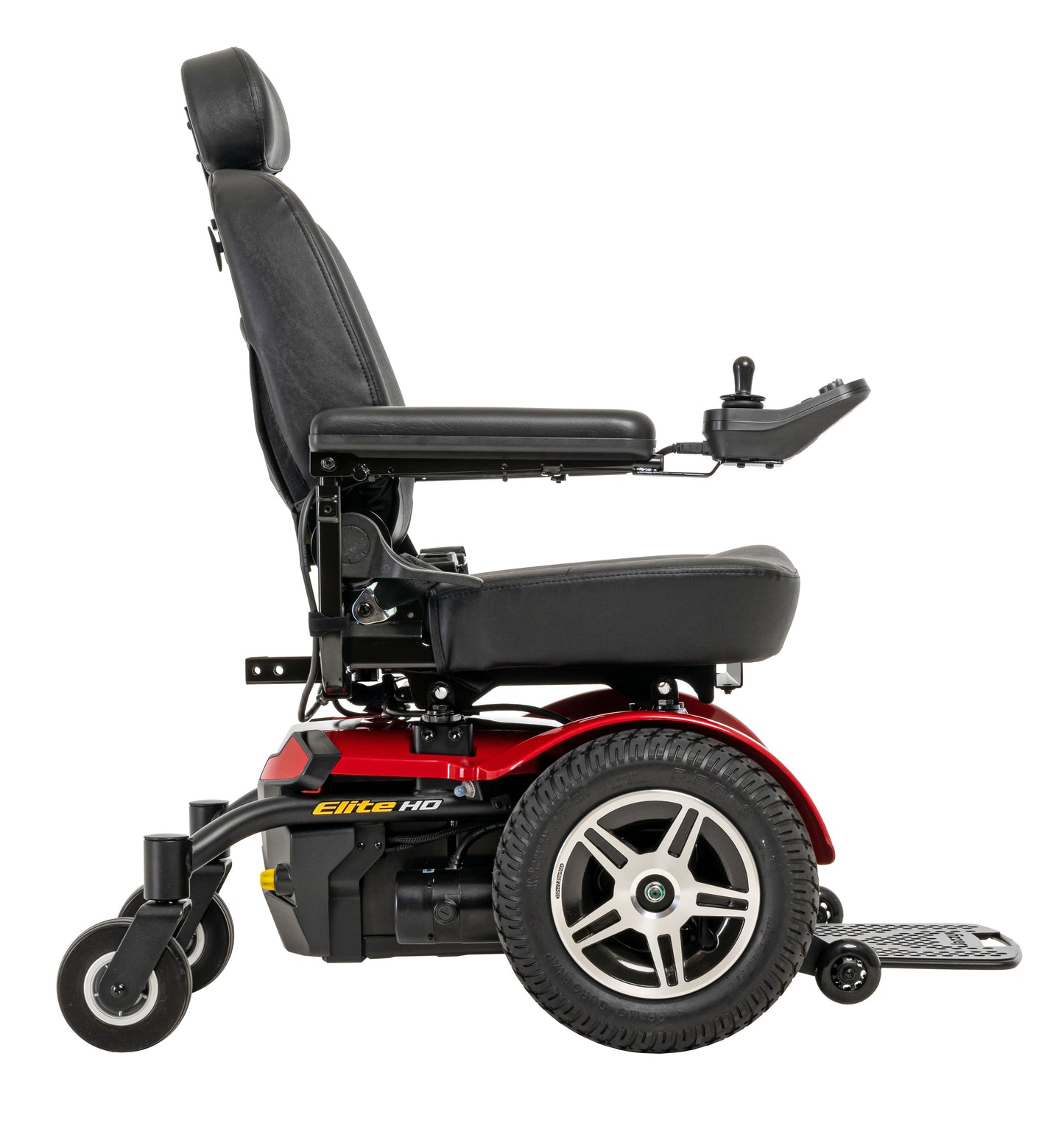

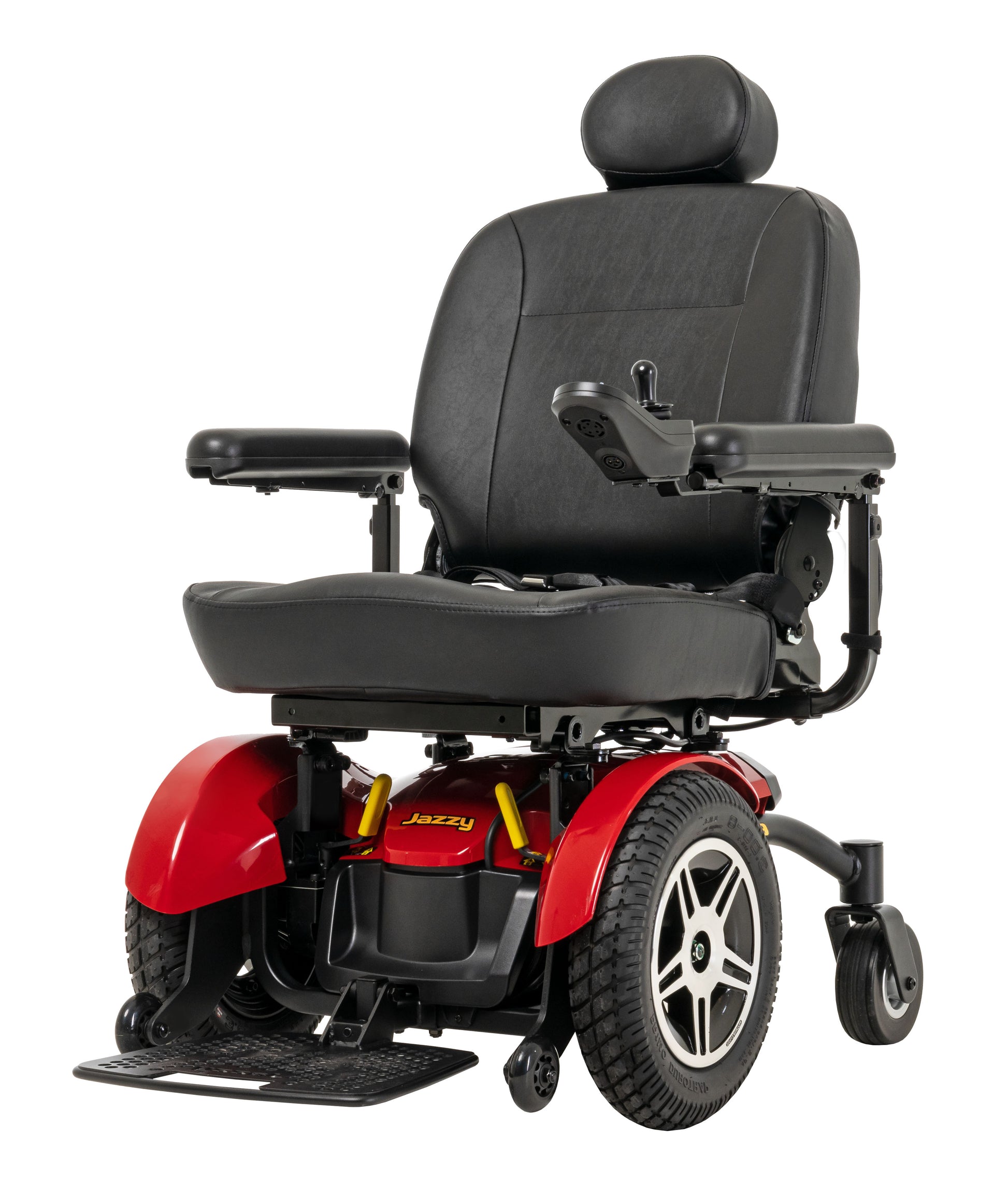

Jazzy Elite HD (FDA Class II Medical Device)

SKU JELITEHD-RED
Color: Jazzy Red
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in             San Diego County)
Description

Experience the power and versatility of the Jazzy Elite HD. Large front wheels absorb and climb, easily tackling life’s everyday obstacles. An intuitive hand control ensures effortless operation and simple maneuvering.

The Jazzy® Elite HD1 features two-motor, front-wheel drive technology and heavy-duty construction. The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces. Large front wheels add extra absorption for superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.

Features
  • 450 lbs. weight capacity
  • Up to 4 mph maximum speed
  • 24" turning radius
  • Up to 14.4 miles per charge
  • Comfortable, depth-adjustable, limited recline high-back seat with headrest
  • Easy rear access to batteries

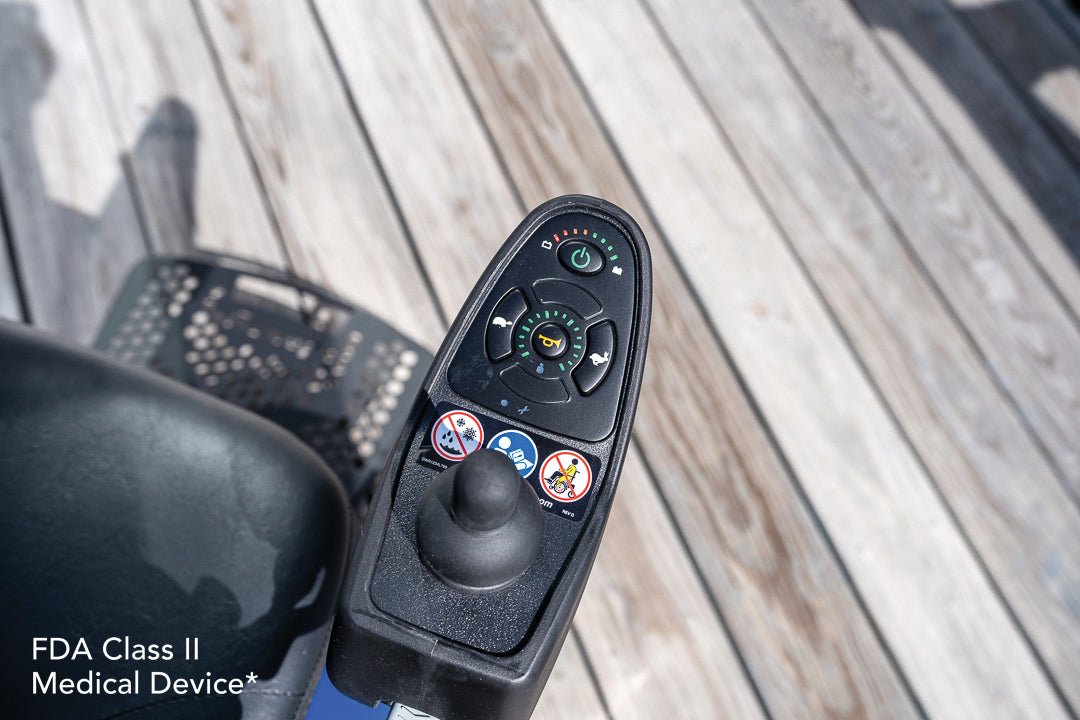

  • Intuitive controller is easy to operate
  • Color-through shroud
  • Angle-adjustable foot platform offers greater comfort
  • Front-wheel drive design for excellent maneuverability

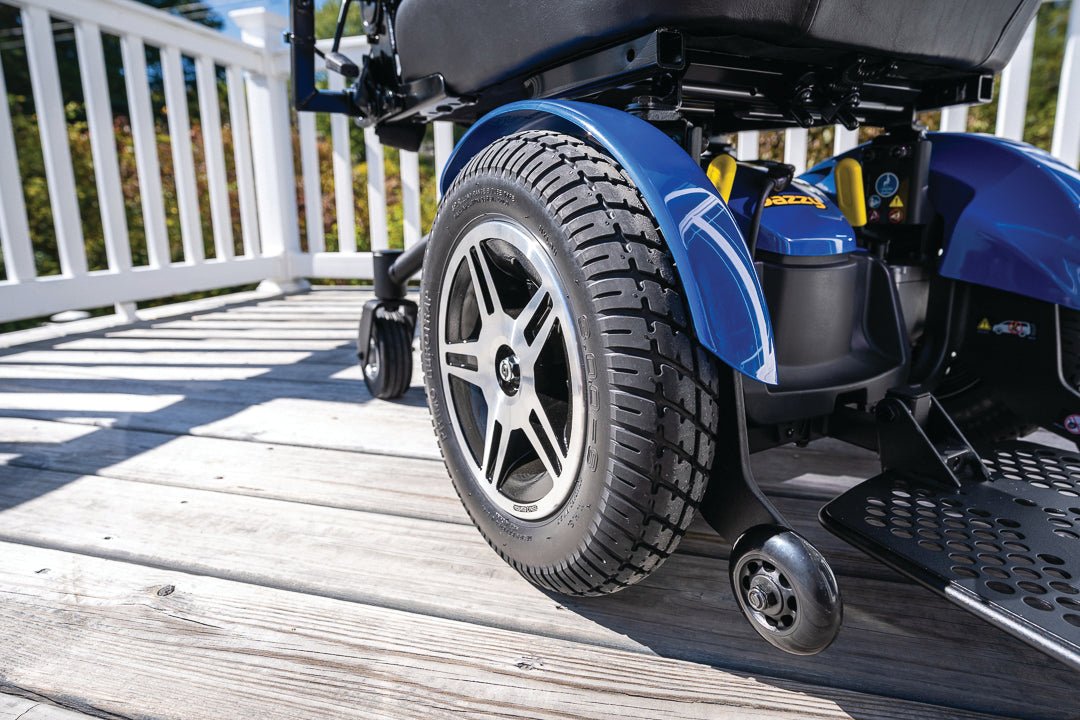

  • 14" knobby tires and optimum weight distribution provide superior traction
  • 40A Dynamic LiNX controller
  • Extended 13-month limited warranty
  • HCPCS Code: Group 2 Heavy Duty (K0824/K0825)
Specification

Size

  • Overall Dimensions: 35.5" l x 24.25" w (90x61cm)
  • Seat Dimensions:
    • 20" x 18" - 20" (51x46-51cm)
    • 18" x 18" - 20" (46x46-51cm)
    • 22" x 20" - 22" (56x51-56cm)
  • High-Back Seat (max. size): 24" w x 24" d (61x61cm)
  • High-Back Seat-to-Floor Range: 20" - 22" (51-56cm)
  • Synergy Seating: 24" w - 24" d (61-61cm)
  • Synergy Seat-to-Floor Range: 15.75" - 17.75" (40-45cm)
  • Turning Radius: 24" (61cm)
  • Wheel Size:
    • Front Wheels solid anti-tips: 3" (8cm)
    • Drive Wheels foam filled: 14" (35cm)
    • Rear Wheels solid casters: 6" (15cm)
  • Ground Clearance: 3" (8cm)

Details

  • Maximum Speed: 4 mph
  • Drivetrain: Two-motor, front-wheel drive
  • Braking System: Regenerative and electro-mechanical
  • Suspension Type: Limited
  • Per Charge Range: Up to 14.4 miles
  • Standard Electronics: 50A, Dynamic
  • Battery Size (2 required): 12 volt, NF-22
  • Battery Charger: 5 amp, off-board
  • Standard Seat Weight:
    • 18" wide - 51.8 lbs.
    • 20" wide - 54 lbs.
    • 22" wide - 57.6 lbs.
  • Weight Capacity: 450 lbs.
  • Battery Weight: 37 lbs. each
  • Weight of Heaviest Piece: 99 lbs.
  • Warranty
    • Frame: Lifetime limited
    • Drivetrain: 13-month
    • Electronics: 13-month
    • Battery: 13-month
