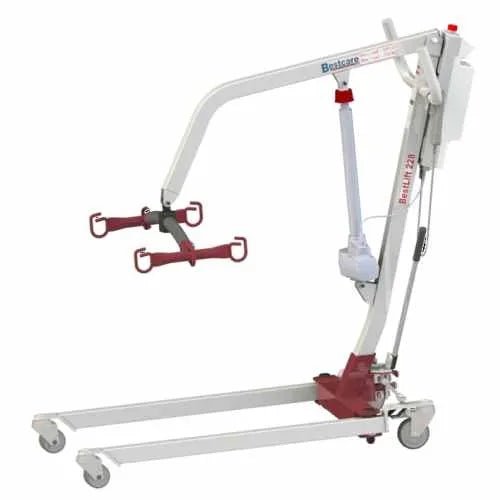

BESTLIFT PL228 ELECTRIC LIFT

Sale
Original price
Current price
SKU PL228
Description

The BestLift PL228 Lifting System can be used for lifting from floor, bed, or any seated surface. Base legs open up to allow rolling in close to wheelchairs and commodes. PL228 has a hand operated base.

Battery Powered Lift:
Battery operated Patient Lift with a low 4.5" base height to fit under most beds. This system operates on a 24VDC 5AH rechargeable battery. Includes battery and charging system with low charge and load capacity warning.

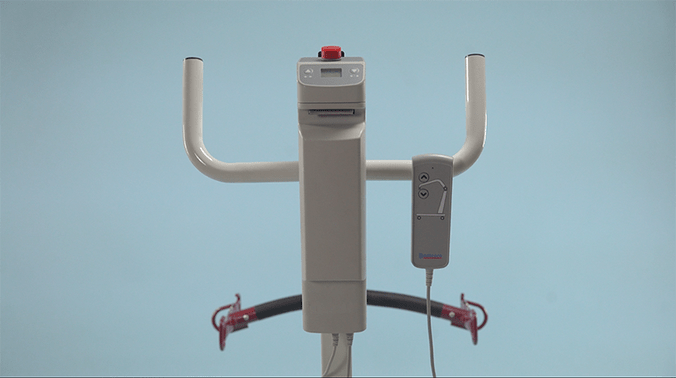

Dual User Controls For Greater Reliability:
All patient lifting and lowering is performed by push buttons on either the hand control (pendant) or using the controls provided directly on the control box. This dual control system assures the Lift can be operated in case the hand control is damaged, misplaced, or malfunctions.

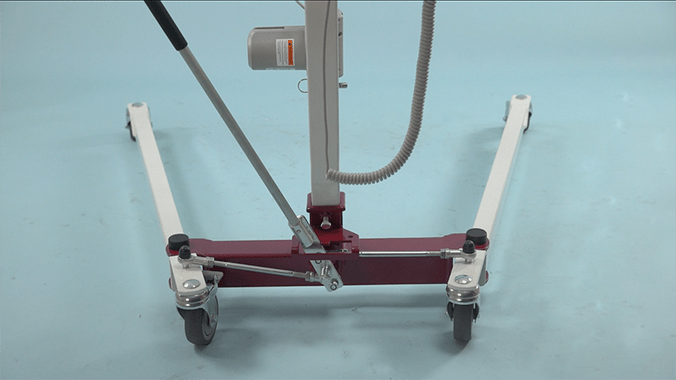

Easy Base Opening/Closing:
The BestLift PL228 includes a hand operated lever base opening for wheelchair/commode access. Low base height provides maximum stability and fits under beds.

Lightweight:
The BestLift is constructed of high-strength aluminum, weighs only 96 lbs, yet has a full 500 lbs. lifting capacity.

Applications:
Designed for both in-home use and nursing home or facility applications.

Emergency Backup System:
The PL228 Lift has a lift and lower emergency backup system.

Sling Compatibility:

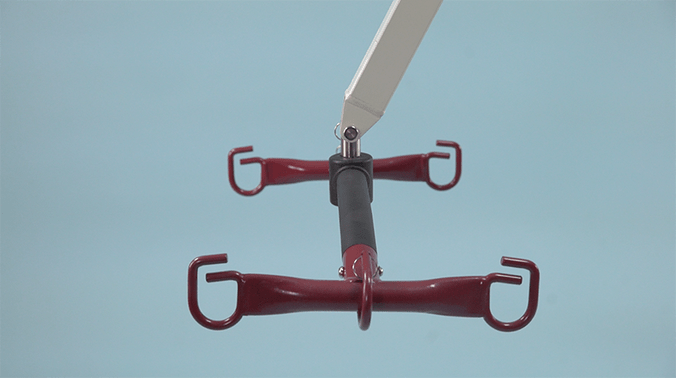

6-Point Spreader Bar. Works with most 4 or 6-Point Slings.

Safe Patient Transfers:
The BestLift PL228 allows a person to be lifted and transferred safely, with minimum physical effort provided by the caregiver.

Features

Product Highlights

  • Dual Controls, onboard and corded remote
  • Ability to lift patient from floor
  • Six-Point Spreader bar works with 4- or 6-Point Slings
  • Foot pedal base opening for wheelchair/commode access
  • Low base height (4.5") provides maximum stability and fits under lower beds
  • Includes overload and low-battery warning alarm
  • Built-in battery gauge
  • High capacity Battery Pack
  • Emergency Stop button
  • Overload protection
  • Battery Charger works on 110-120VAC 60HZ, or 220-240VAC 50HZ
Specifications
Safe Working Load: 500 lbs
Overall Length: 44.9"
Mast Height 48.3"
Spreader Bar Max Height: 69.1"
Spreader Bar Min Height: 25.8"
Base Closed: 24.9" External Width
Base Open: 42.9 External Width
Overall Base Height: 4.5"
Front Caster: 3" Dual Casters
Rear Caster: 4"
Unit Net Weight: 96 lbs



Resources

Brochure

Dimension Chart

Owner's Manual
