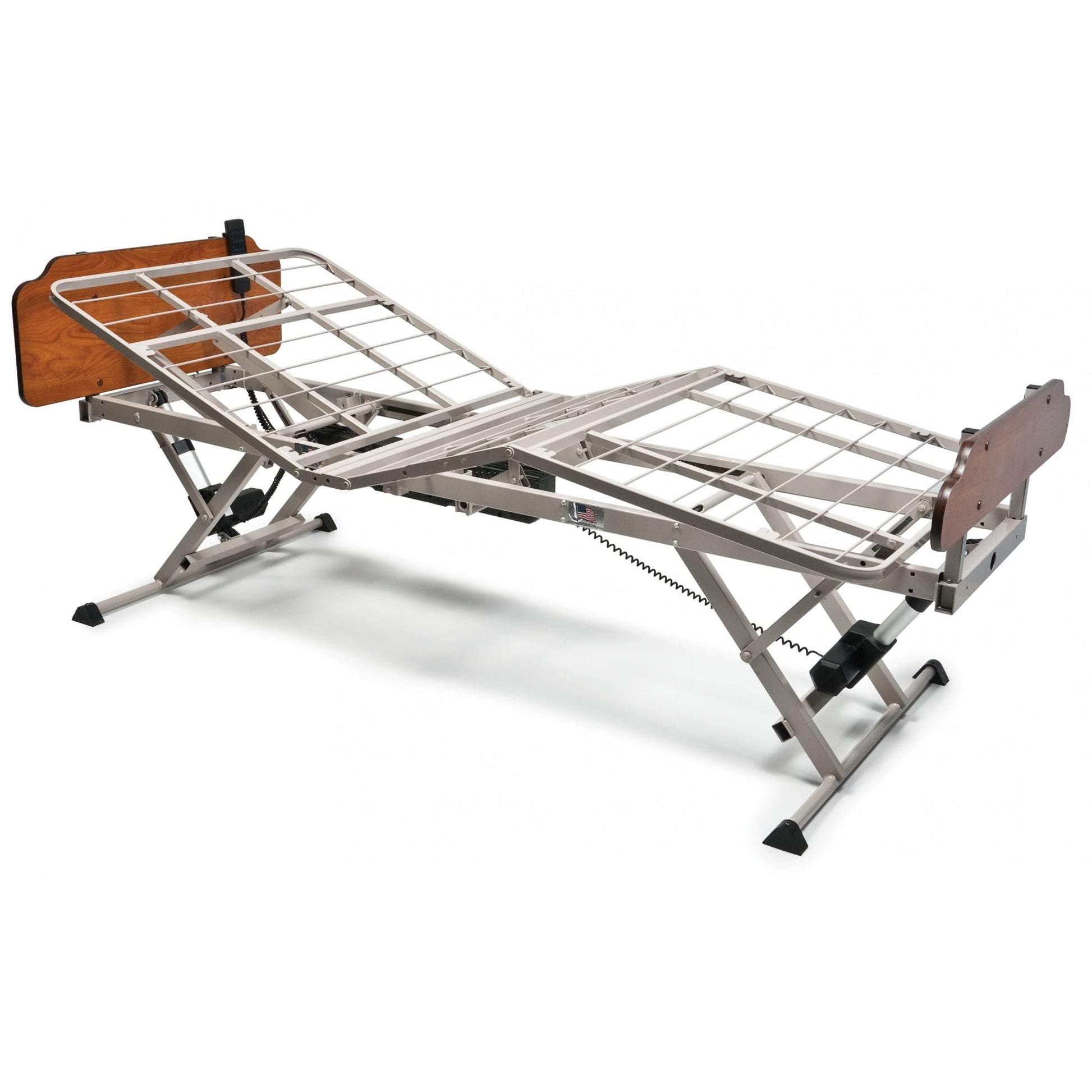

Patriot LX Full-Electric Homecare Bed

"Premier In-Home Delivery and Set-up"
(1 year FREE service warranty included)

Features

• Robust steel grid deck sleep surface provides superior mattress support and easy to clean surface compared to traditional spring decks
• Head and foot sections can be raised or lowered simultaneously or independently with one hand control
• Recessed main frame offers maximum pinch point protection between grid deck and frame – reducing the risk of injury
• Lightweight design weighs only 126 lbs – lightest bed on the market
• Bed setup is so simple that it can save on setup time and requires minimal maintenance keeping your technicians time efficient

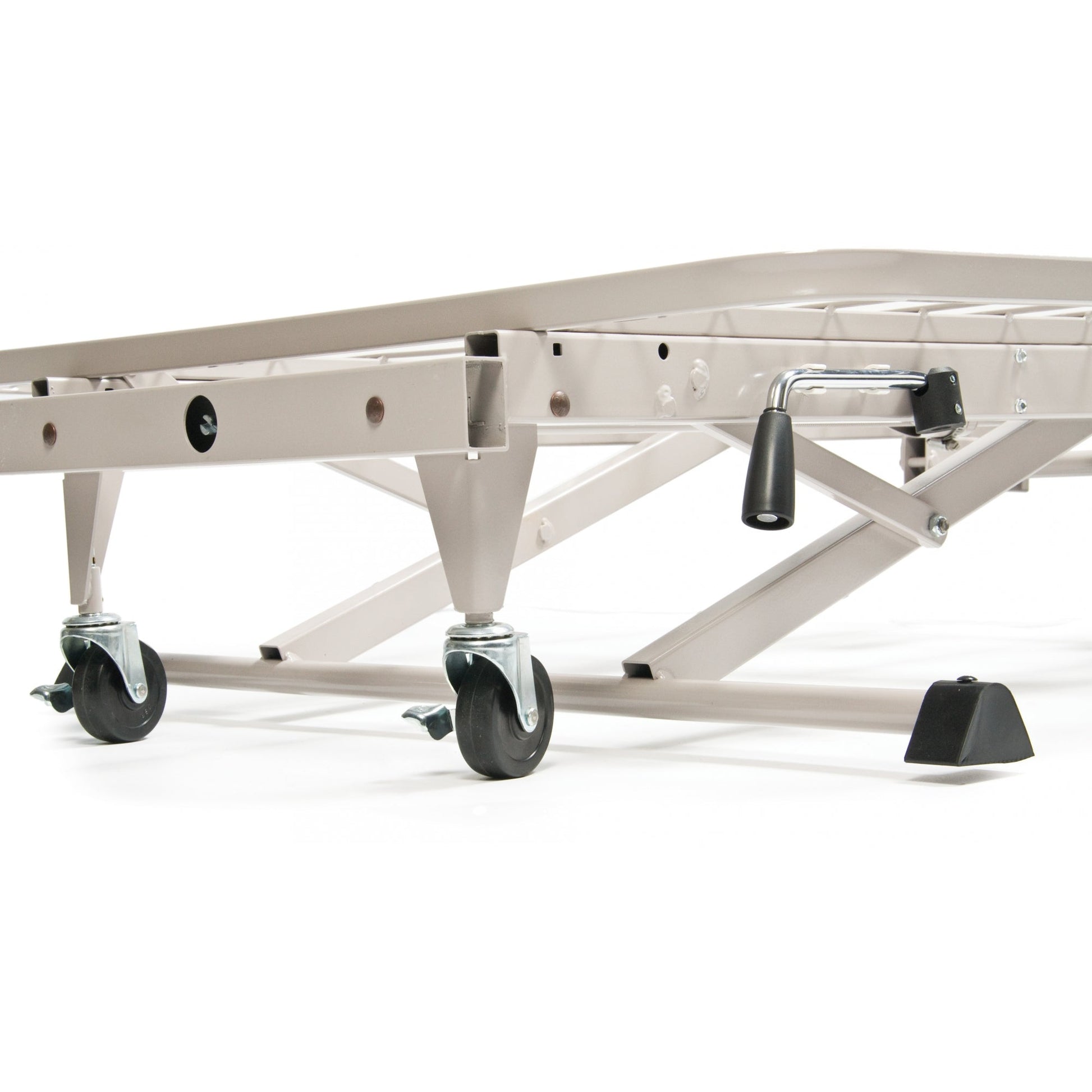

• Patent pending integrated HI/LO mechanism makes bed height adjustment easy and reduces potential loss of parts such as HI/LO rod when used as rentals
• Features dual HI/LO motors to adjust bed height from a low 10" to 20" easy and even allows for trendelenburg and slant positioning

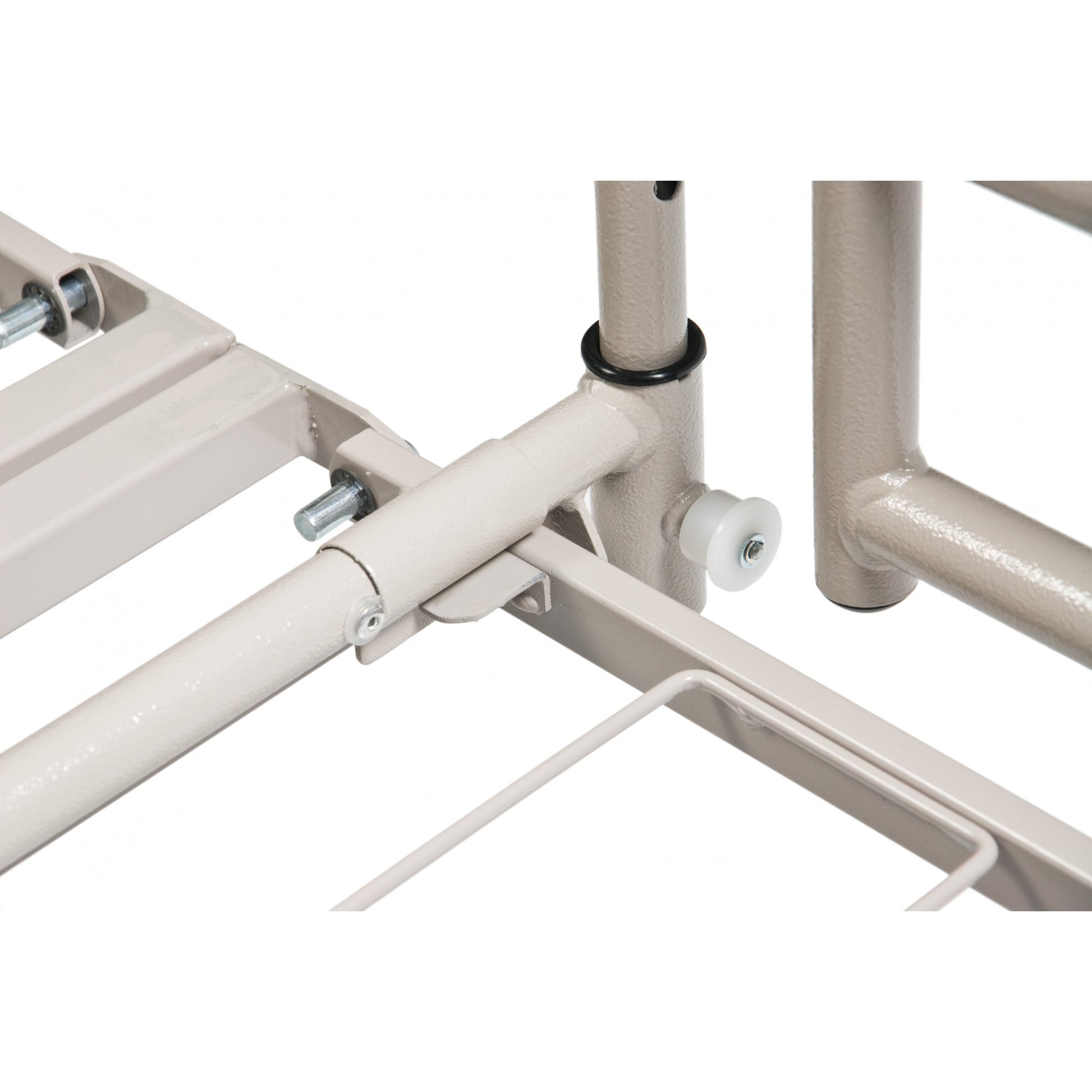

• Patent pending rail slots in frame ensure quick and proper rail placement
• Single motor unit is designed for easy installation, requires less maintenance and provides the ultimate in quiet, smooth head and foot articulation

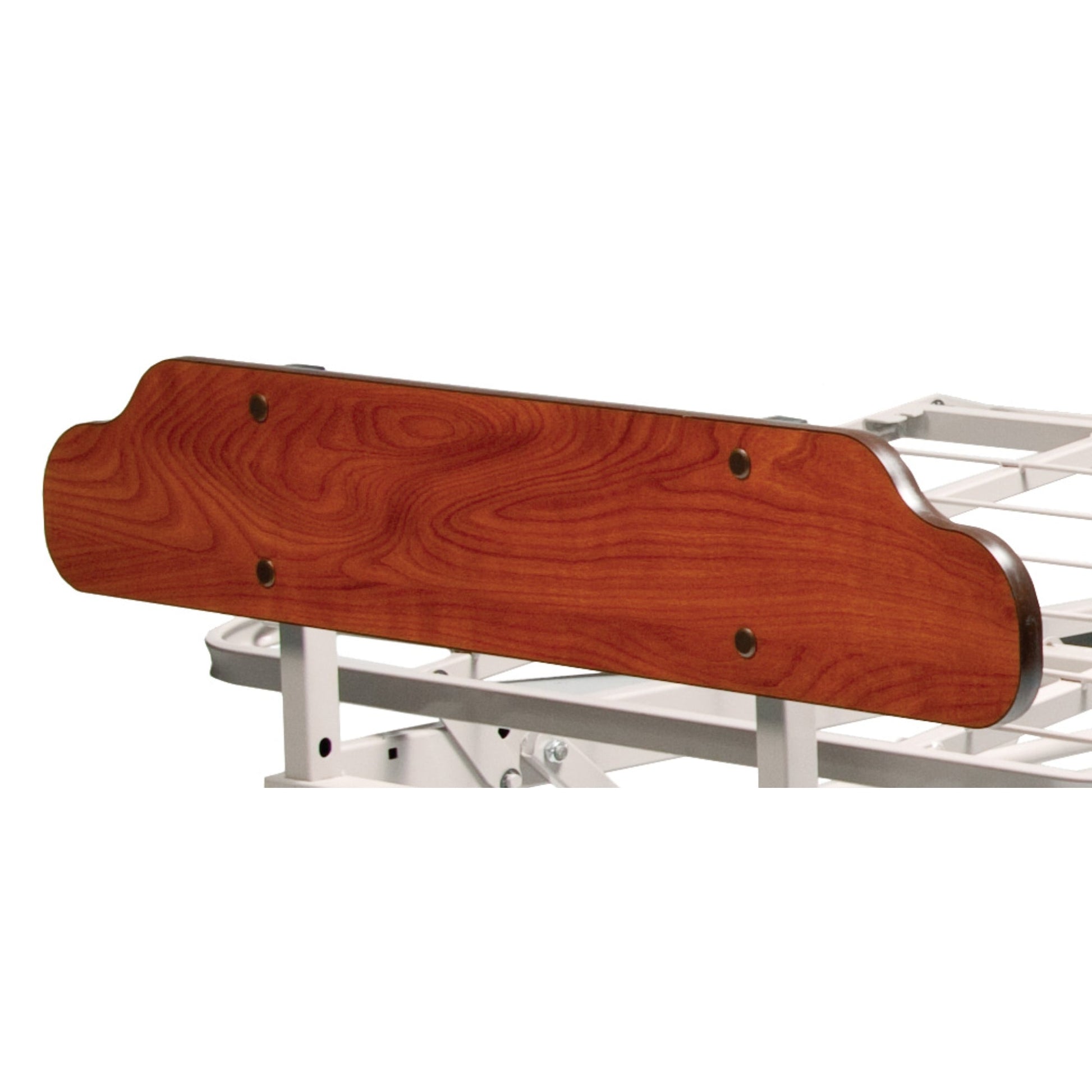

• Attractive, “home-like” thermo fused bed ends offer a less institutional look and eliminate a bed component that often requires frequent repair and maintenance
• Features SilverSolutions- an anti-microbial technology built into the paint that protects against bacteria and odor
• During a power failure, the motor can lower both the head and foot section with just a single 9 volt battery
• 4" extension kit can be installed on head, foot or both to extend bed length to 84" or 88"

Grid Deck offers the following advantages:

• Much stronger frame
• Better mattress support
• No spring sag or bottoming out with heavier patients
• Easier to clean
• No connecting links or springs to lose

Specification

Size

Overall Bed Dimension: 84" l x 35" w x 10" - 20" h (213x89x25-51cm)

Material

Metal

Details

• Total Bed Weight Assembled: 126 lbs.
• Maximum Patient Weight:
  • 350 lbs. evenly distributed
  • 450 lbs. distributed total weight capacity including patient, mattress, rails, and accessories
• Lift Range:

  • Head - 60
  • Knee - 30
• Base Type: Adjustable
• Included Components: bed frame, headboard, footboard, casters, motor, handheld remote

Warranty

• Bed Frame: 5 Years
• Electrical Components: 2 Years
• All other Durable Components: 1 Year
