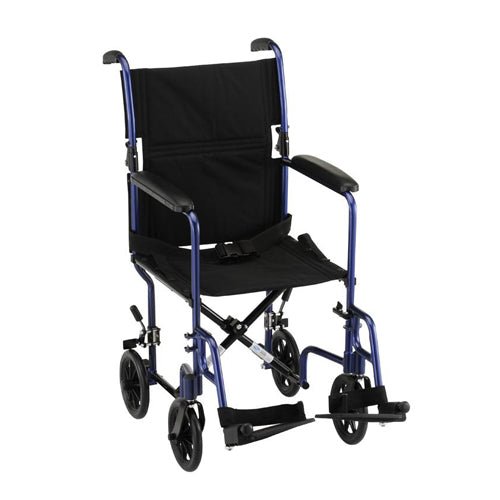

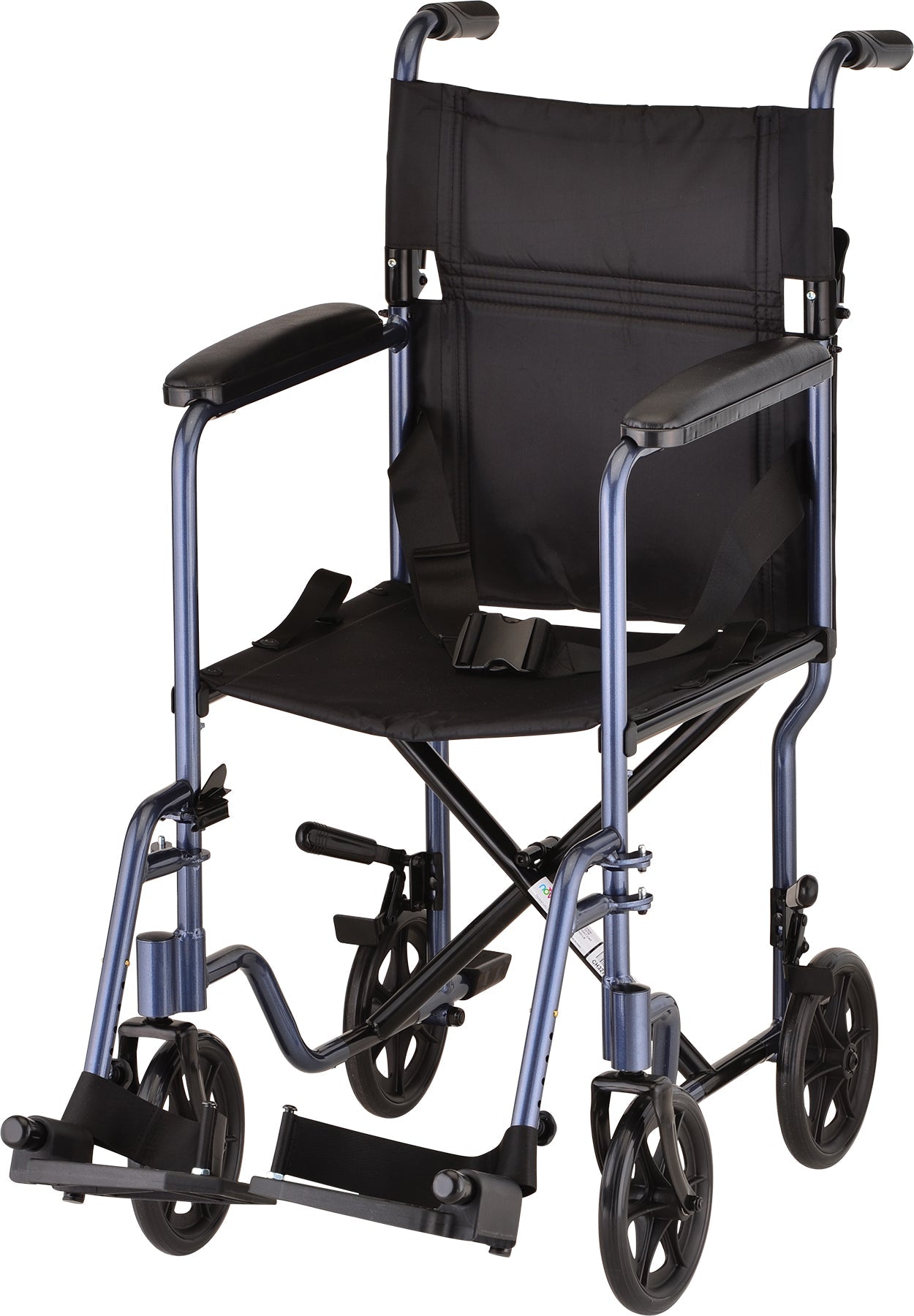

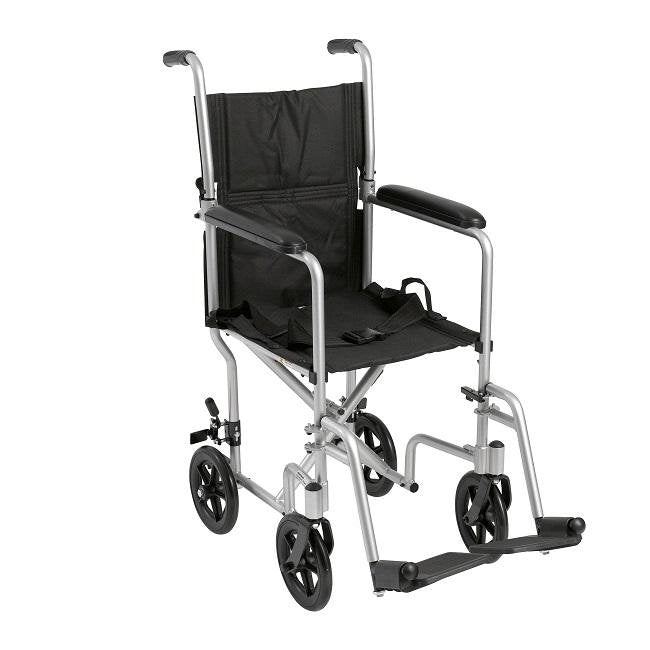

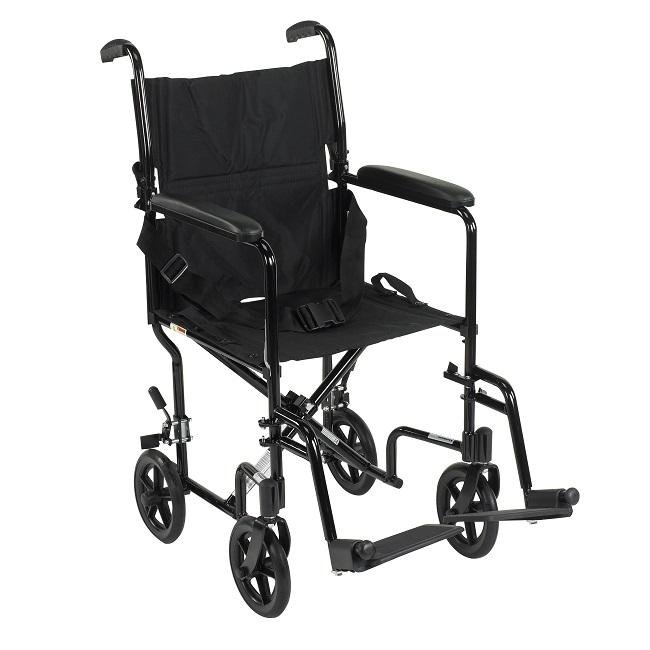

Lightweight Transport Chair
Weighing in at 19 lbs, the Lightweight Transport Chair is extremely light, while its standard features and colors offer style and safety as you ride.
- Weight Capacity: 300 lbs

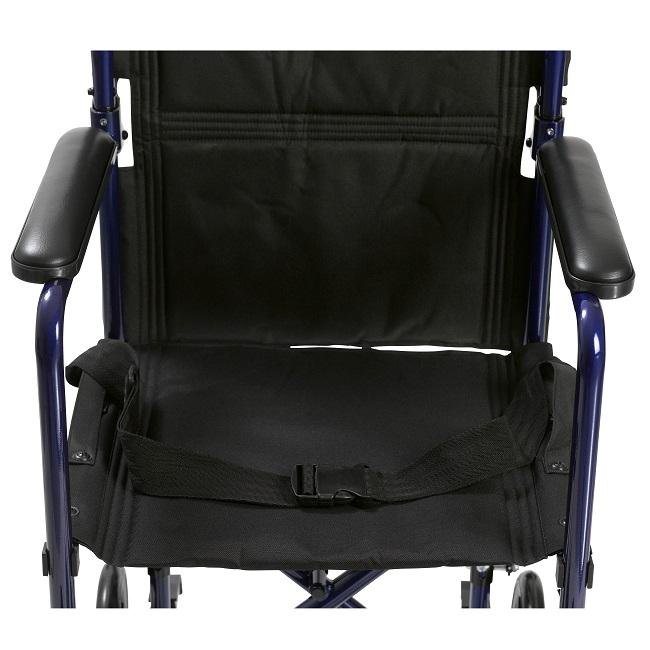

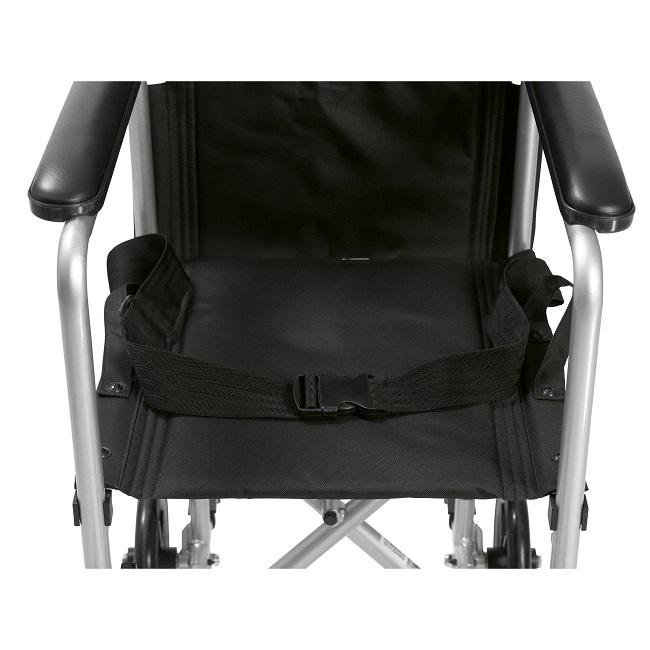

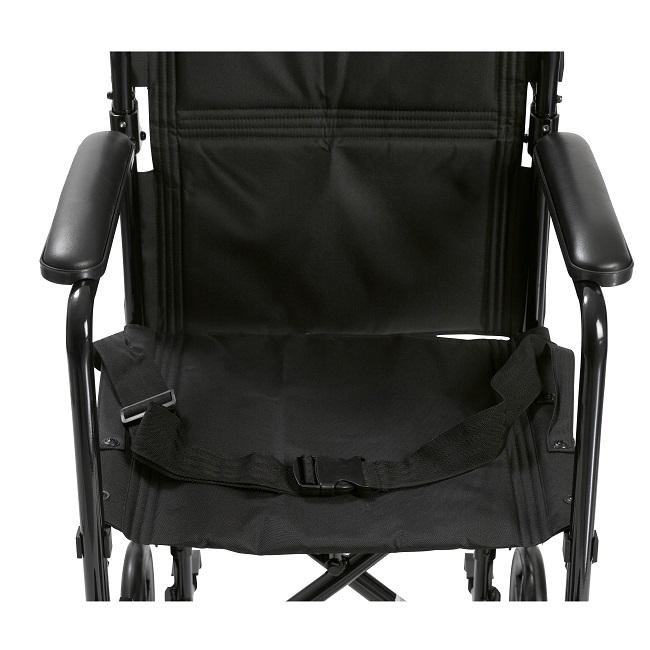

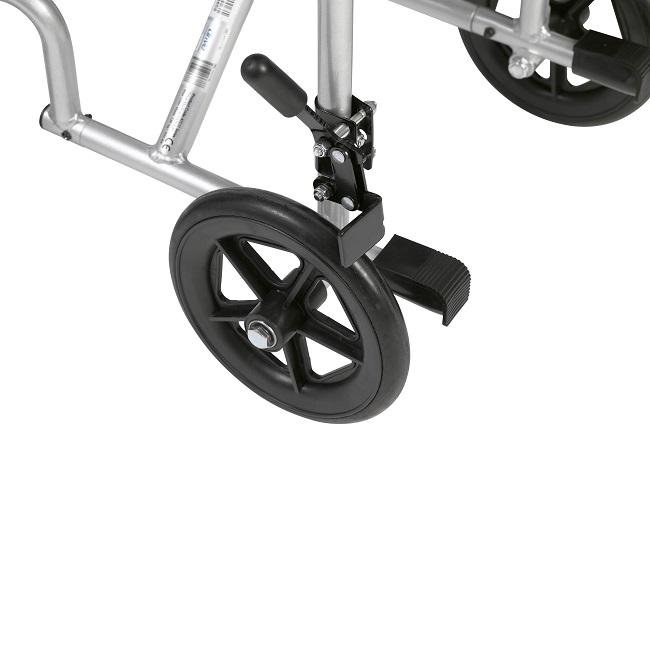

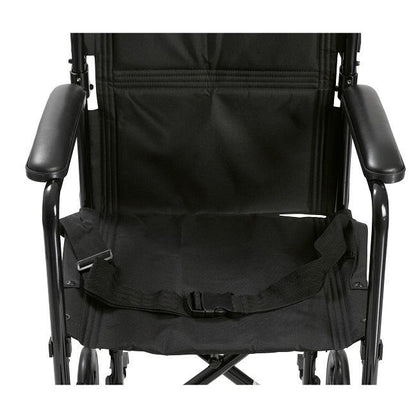

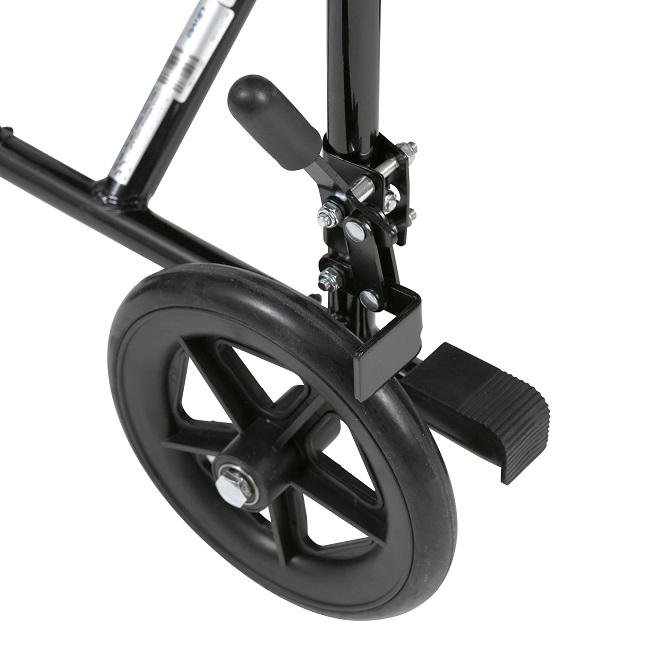

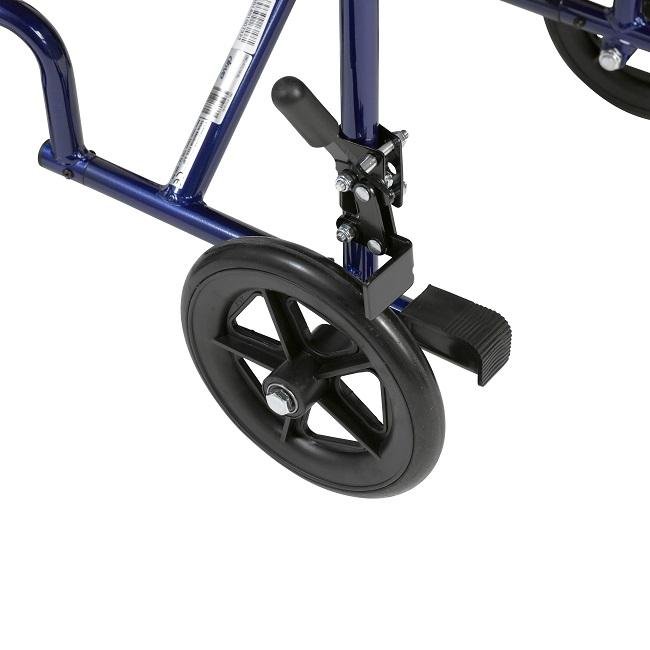

- Seat belt and locking rear wheels come standard for added safety

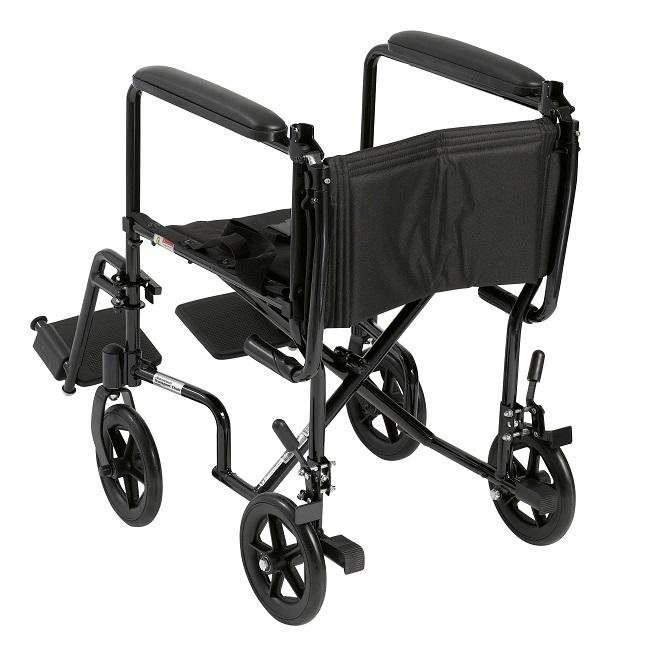

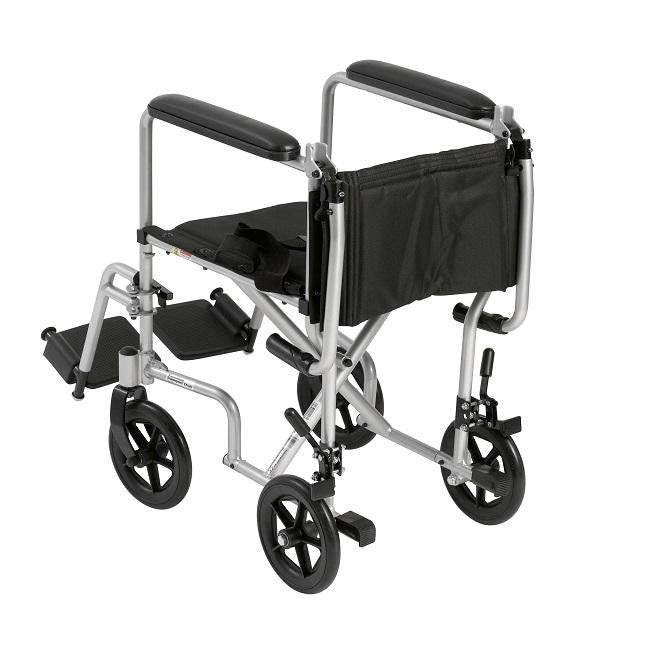

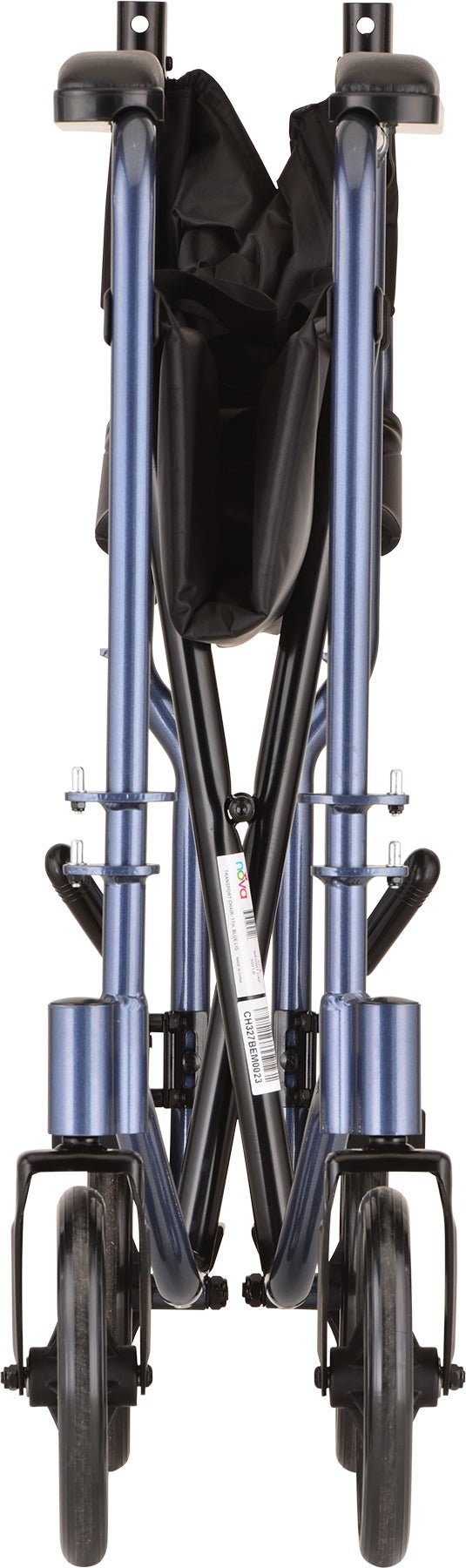

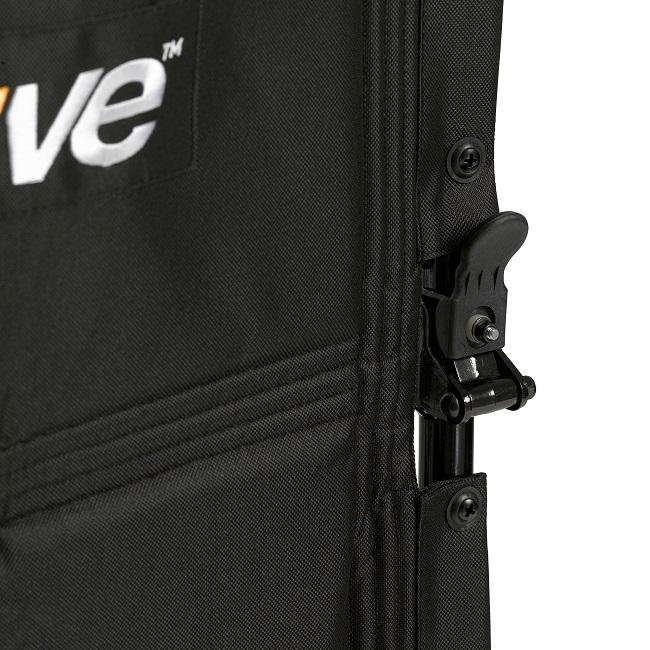

- Easy to fold back for transportation and storage
- Available in 17" and 19" seat widths
- Easy to clean nylon upholstery
- Lightweight aluminum frame provides surprising durability
- Weighs 19 lbs

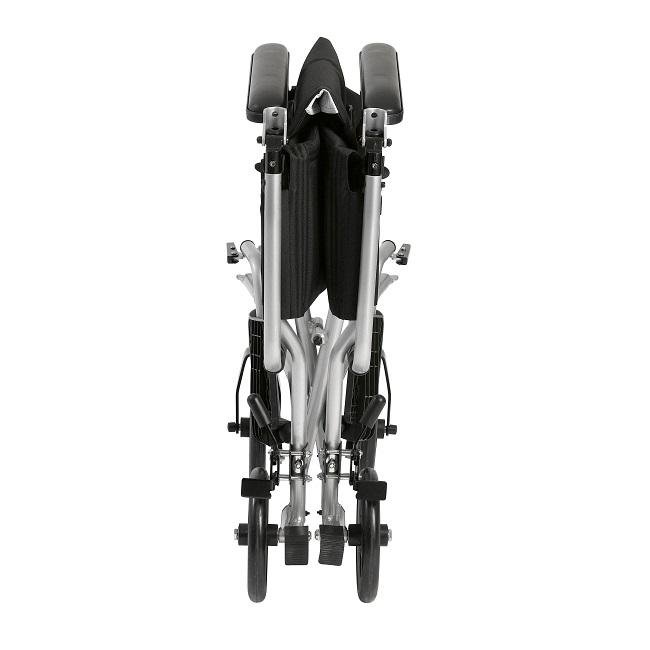

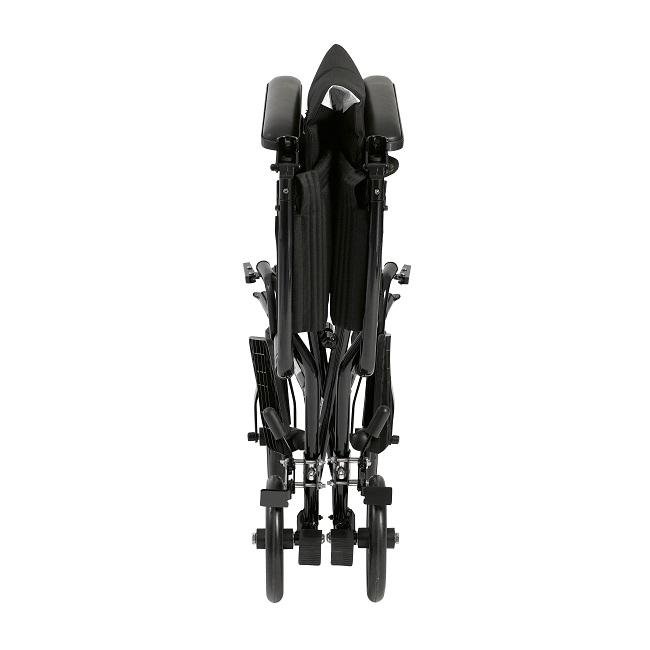

- Overall Width - Folded: 9"
- Quick-Release Axles: No
- Weight capacity: 300 lbs.
- Weight: 19 lbs.

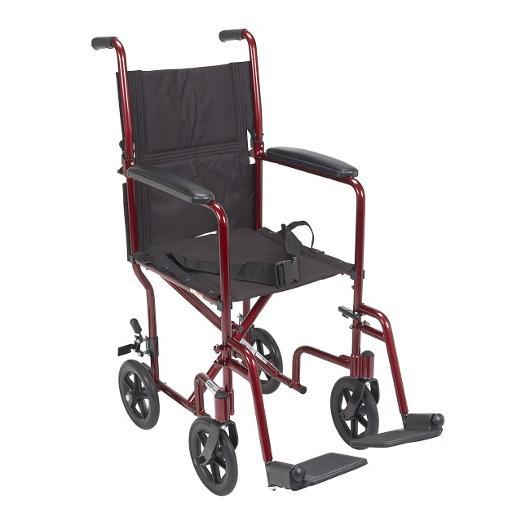

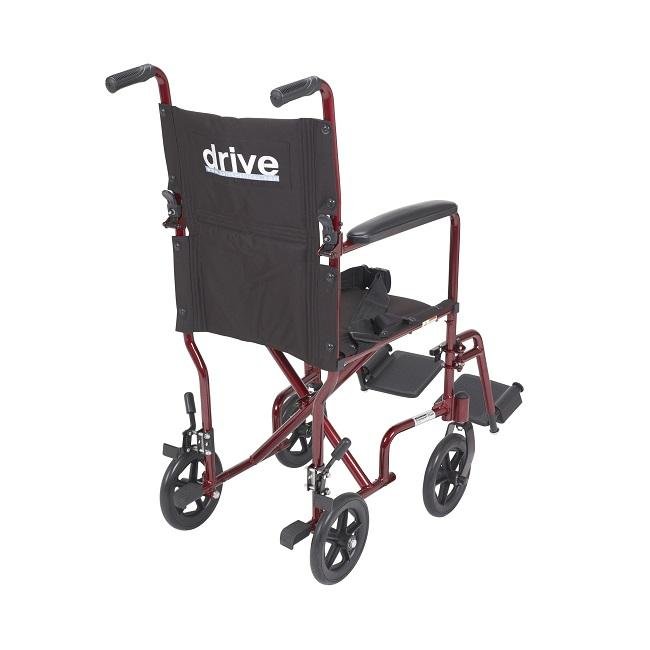

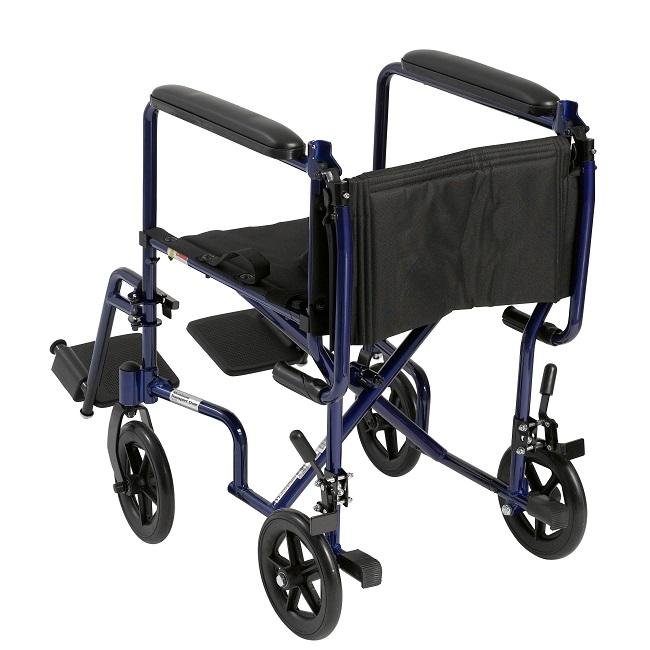

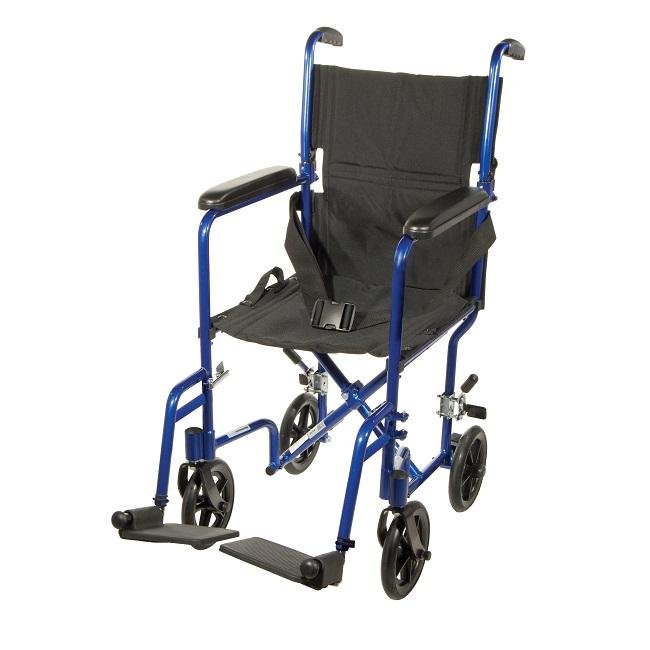

The Drive Lightweight Transport wheelchair is one of the the lightest transport chairs on the market, weighing in at only 19 lbs! With four great colors to choose from, you can be transported in style. A seat belt and swing-away removable footrests are standard and make it easy to get in and out of this chair. A fold-down back allows for easier storage and transport and padded armrests add additional comfort.
*Seat width between arms is 2" narrower than seat width measurement.
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
- Back Height2
- Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
