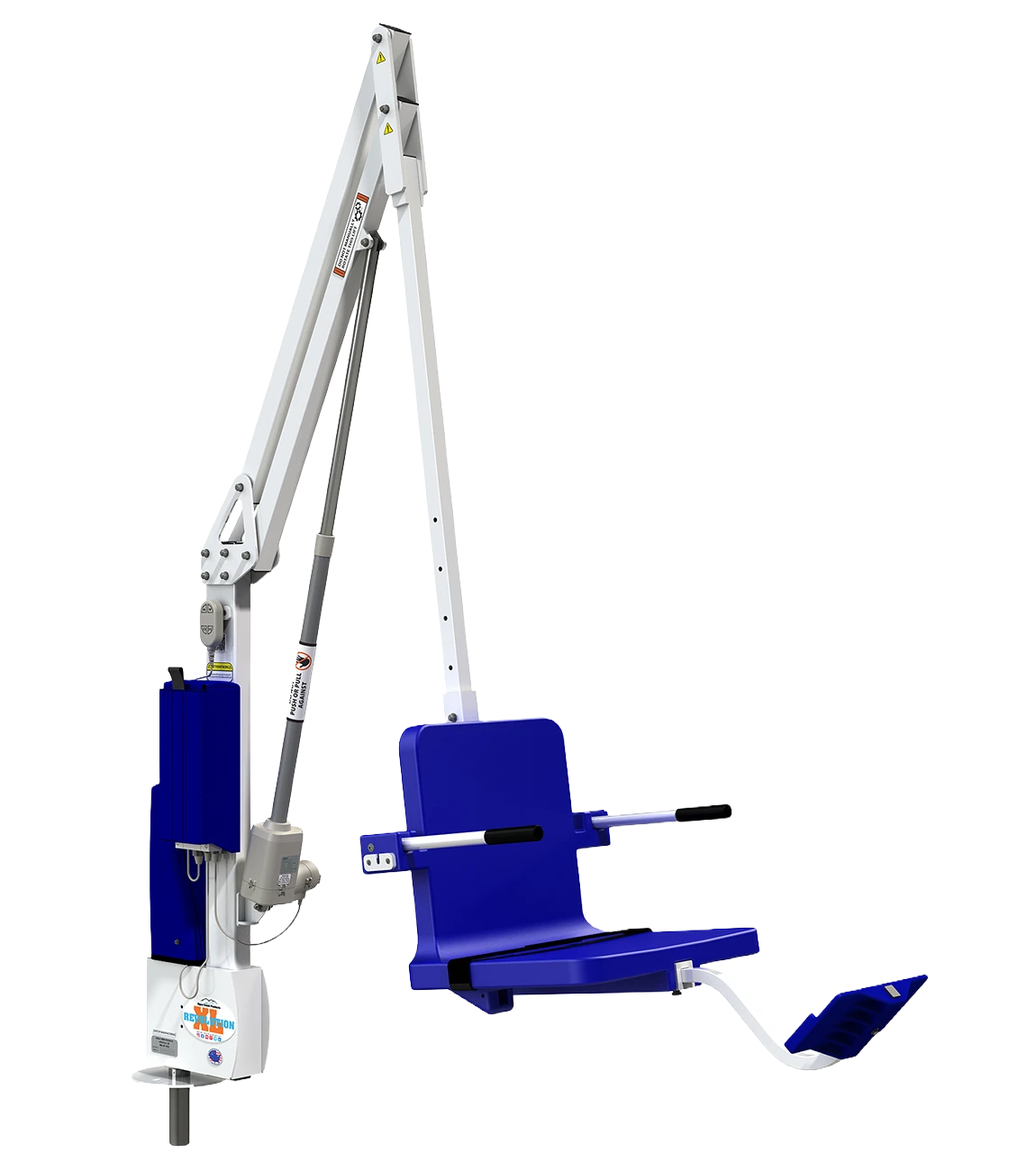

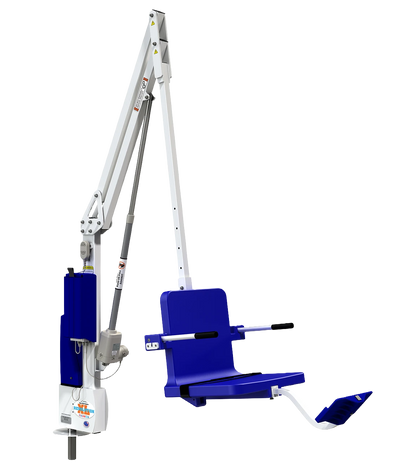

Aqua Creek Revolution XL Pool Lift — 500 lb Capacity

The new and improved Revolution XL™ Pool Lift is now more sleek and versatile than ever before! Featuring the same robust 500 lb weight capacity as it's predecessor, now with increased water draft and anchor setback, this lift provides access to a wider variety of users and provides additional clearance for short pool walls and curbs.  The Revolution XL™ is designed to be self-operated by the individual user. With an easy to use 4 button handset, the user is able to control all movement and enjoy a fully independent aquatic experience.

Keep scrolling for manuals, specifications, and other resources. Questions along the way? Contact us.

Explore our full line of pool lifts 👉

• ADA compliant & UL safety certified
• 500 lbs (226 kg) weight capacity
• 360 degree rotation
• Adjustable seat pole
• Stainless steel construction with powder coat finish
• Limited five (5) year warranty
• Made in USA

• F-REVXL: Revolution XL™ Pool Lift, Anchor not included, white/blue

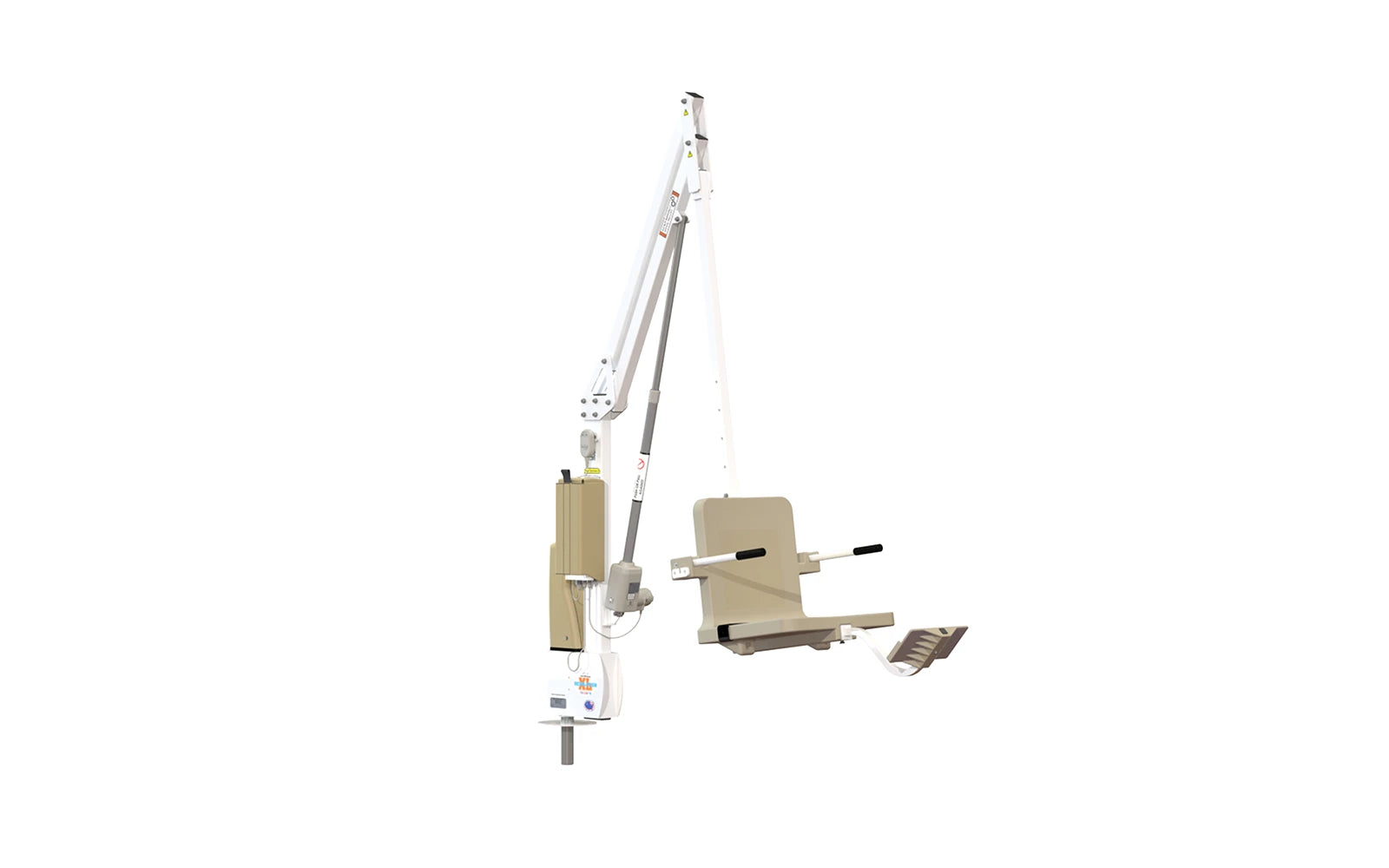

• F-REVXL-T: Revolution XL™ Pool Lift, Anchor not included, white/tan

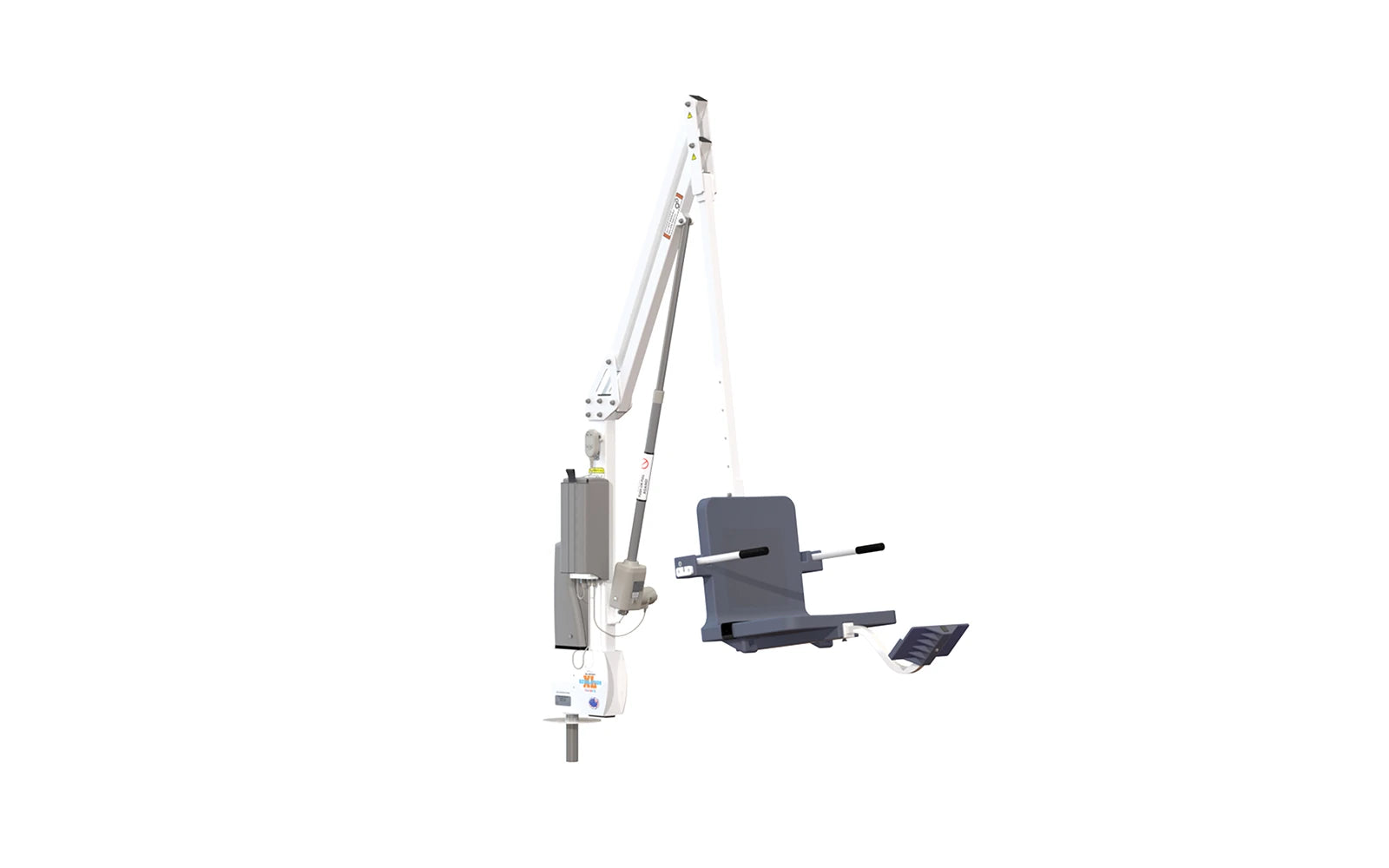

• F-REVXL-G: Revolution XL™ Pool Lift, Anchor not included, white/gray

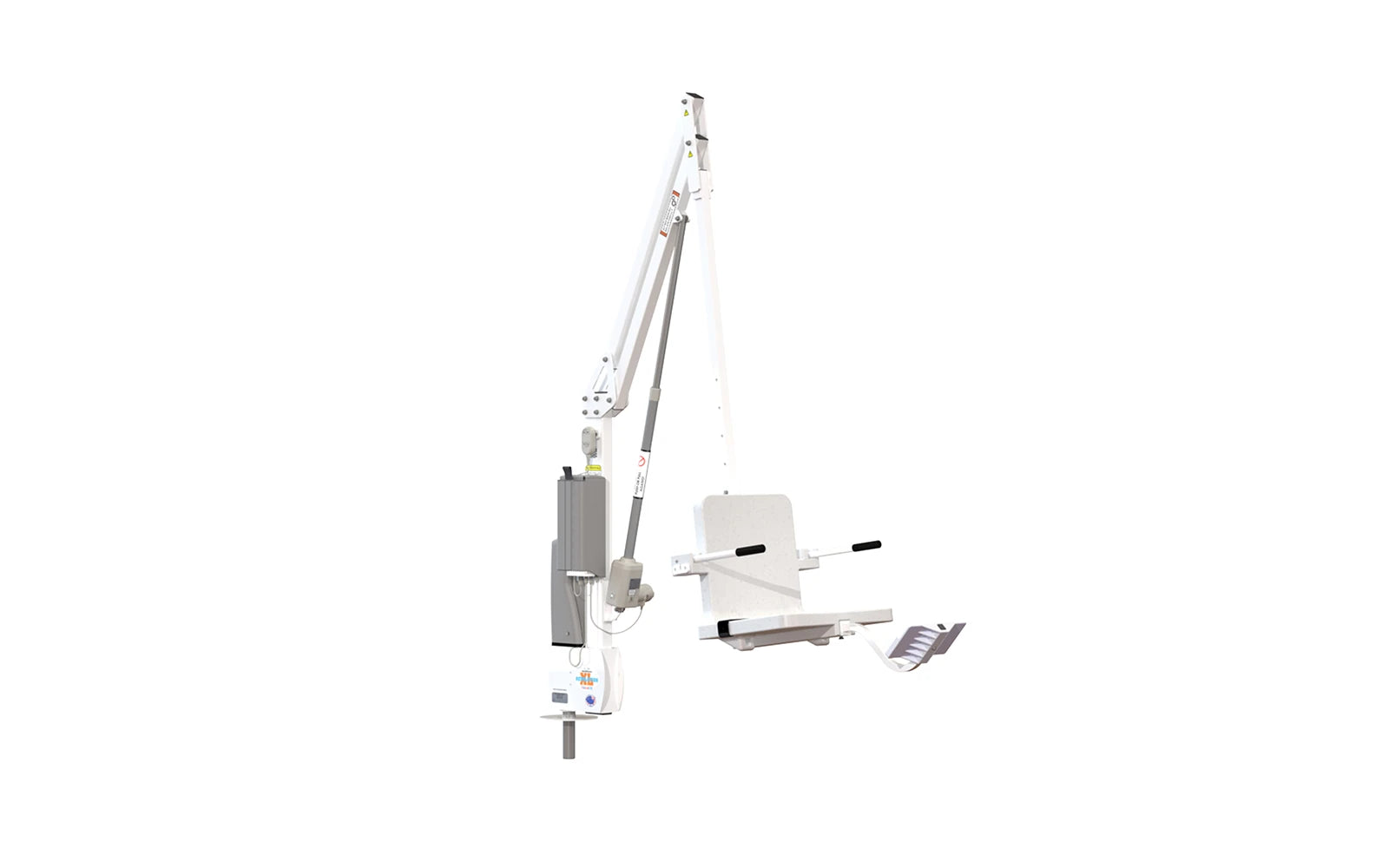

• F-REVXL-W: Revolution XL™ Pool Lift, Anchor not included, white/white
• F-REVXL-C: Revolution XL™ Pool Lift, Anchor not included, choose your colors

F-REVXL: Revolution Lift Specification

F-808SA: Concrete Anchor Specifications

F-808SA-10: Paver Anchor Specifications

F-842SWDA: Wood Deck Anchor Specifications

F-77SSA: Shallow Concrete Deck Anchor Specifications

F-806SLS: Sling Seat Assembly Option Specifications

F-MTTC: Transport Cart Specifications  (Not for use with shallow concrete deck anchor)

F-REVXL: Revolution XL User Manual

F-808SA: Standard Anchor User Manual

F-808SA-10: Paver Anchor User Manual

F-842SWDA: Wood Deck Anchor Manual

F-77SSA: Shallow Concrete Deck Anchor User Manual

F-806SLS: Sling Seat Assembly User Manual

F-MTTC: Transport Cart User Manual (Not for use with shallow concrete deck anchor)

Revolution XL Application Graph Chart

Anchor sold separately unless noted. ADA compliant. Contact us for installation guidance.
