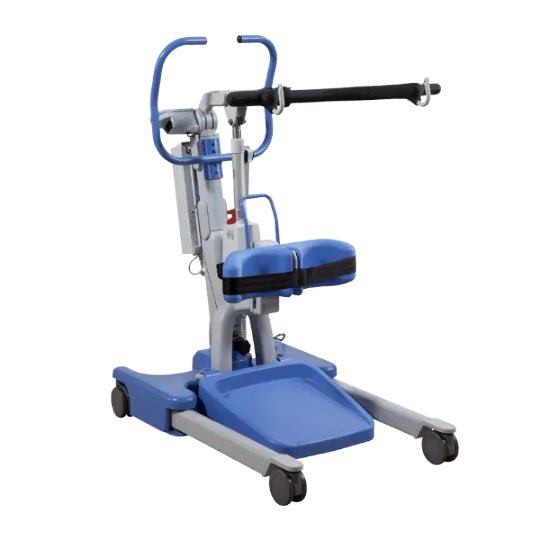

Hoyer Elevate Professional Sit to Stand Patient Lift

by Joerns
SKU JOE-HOY-ELEVATE-S
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in San Diego County)
Description

The Elevate is an active lift designed to improve the lifting experience for both the caregiver and the patient. It is compact and sturdy with a safe working load of 440 lb. Included is Smart Monitor technology that displays actual lifts as well as reminds you about recommended service. This helps drive user compliance and keeps your Elevate in top shape! The Elevate incorporates key intuitive features for caregiver safety. These include a spring-loaded lever to adjust kneepad height as well as a rubber push pad designed to initiate lift movement eliminating initial push forces. The Elevate has been designed to be configured either with or without a weigh scale. The weigh scale is seamlessly integrated with a digital display and user friendly controls.

Features
  • Smart Monitor technology drives user compliance and lift longevity
  • Intuitive Push Pad assists with initiating movement
  • One hand adjustable kneepad with infinite settings
  • Angled, removable foot tray
  • Optional Scale
  • Two (2) batteries and off board charger
  • Powered base
  • Tested to EN ISO 10535, the global standard for patient lifts
Specification

Size

  • Dimensions: 41" - 43.3" x 48.4" - 65.5" (104-110x123-166cm)
  • Maximum height to attachment point: 64.7" (164cm)
  • Legs open inside dimension: 34.3" (87cm)
  • Legs closed outside dimension: 24.8" (63cm)
  • Overall height of legs: 4.7" (12cm)

Details

  • Application: Patient Lifter
  • Type: Sit to Stand Lift
  • Lift Power Type: Powered
  • Caster Type: Regular
  • Casters: Yes
  • Integrated Scale: Optional
  • Powered Base Widening: Yes
  • Foldable: Yes
  • Removable Battery Pack: Yes
  • Removable Foot Plate: Yes
  • Lift Low-Battery Indicator: Both Audible and Visual
  • Locking Casters: Yes
  • Manual: No
  • Power Source: Battery
