Hoyer Easytrack Free Standing Gantry

by Joerns
SKU 9720010
"White Glove In-home Delivery and Installation"
( 1 year FREE service warranty included when in             San Diego County)
Description

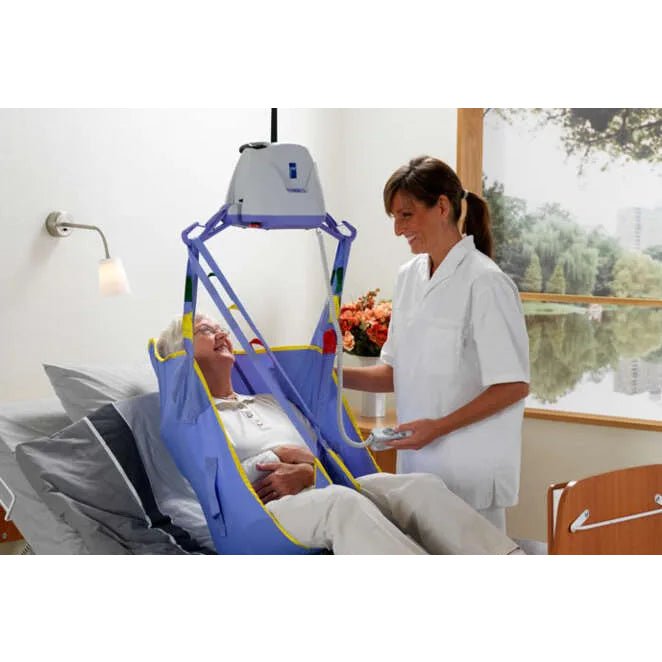

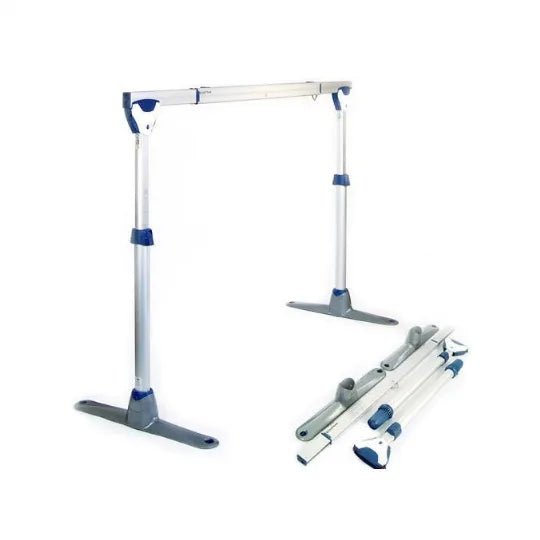

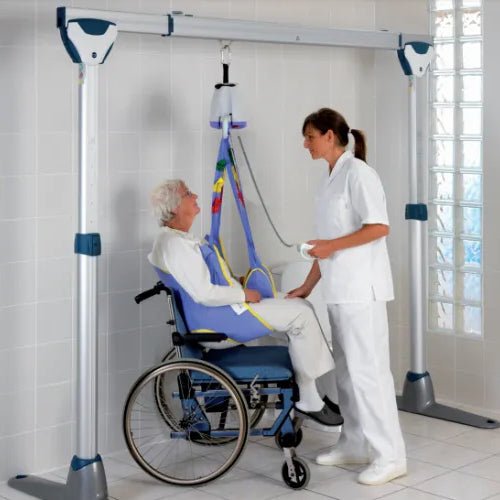

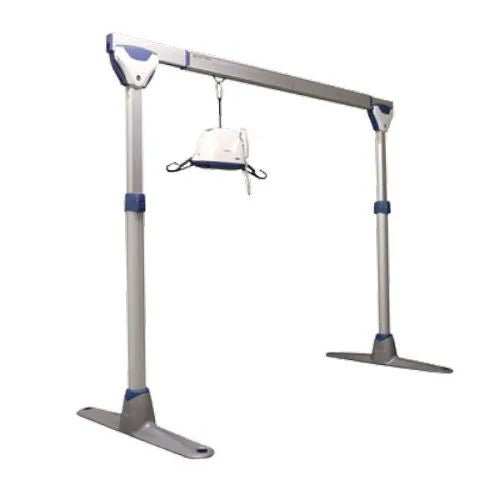

TheEasytrack Free Standing Gantry is a free-standing, versatile home solution for all sorts of point-to-point transfers for an individual with mobility issues from a wheelchair to the bed, a bed to a wheelchair, or for use in the bathroom for toileting and bathing assistance. Both the free-standing gantry and the Max Sky 440 portable two-point sling cassette are designed to be strong and sturdy as well as portable for use in a home or to take on vacation or for an overnight stay. The gantry will adjust in both height and width enough for a king-size bed making this is ideal for individuals with limited mobility and age-related health conditions to stay at home in their own bed. This free-standing gantry is also ideal for people who rent their apartment or home and cannot make structural changes to the walls or ceiling.

Features
  • Free-standing and portability makes this great for home use and vacations
  • Can extend to almost 8 high and 9 ½ wide
  • Includes base levels and height indicators on each post
  • Will decrease injury from falls for both the user and caretaker
  • Provides user dignity, comfort, and security during transfers
Specification

Size

  • Floor to Top of Rail: 72" - 95"
  • Floor to Bottom of Rail: 66" - 89"
  • Exterior Width: 87" - 127"
  • Interior Width: 75" - 115"
  • Footplate Length: 42"
  • Footplate Width: 6"
  • Strap Length: 88" (223cm)

Details

  • Lifter weight (standard) and Speed: 14.3 lbs.; Speed = 1.7 in/sec
  • Battery Charge: Averages 2 to 4 hours on a complete charge
  • Battery Capacity: Provides up to 30 transfers with a load of 176 lbs.
  • Battery Charger Input: 100-240 Vac / 50-60 Hz / 24 Va
  • Electrical up and down emergency buttons: Yes
  • Emergency stopping device (pull cord) accessible from the ground: Located on motor cab
  • Manual emergency lowering device: Yes
  • Weight:
    • Rail: 31 lbs.
    • Post (each): 21 lbs.
    • Footplate: 12 lbs.
