AL690 Side Door Hybrid Platform Lift

by Harmar

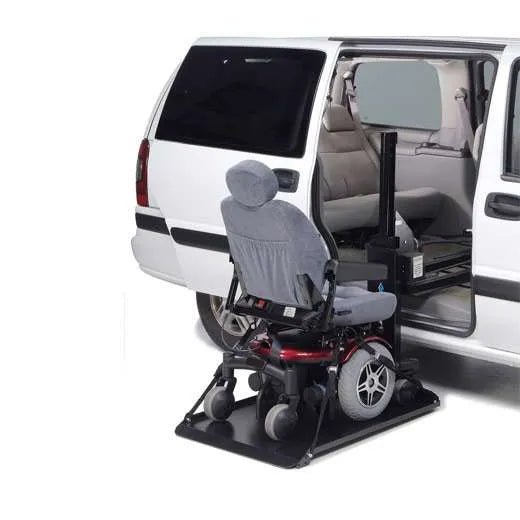

Maybe you’d rather transport your powerchair or shorter scooter towards the middle of your van – Harmar has the lift for you. The AL690 was designed to provide convenient side-loading into your van’s second-row seating, leaving your third-row seating and cargo area free and full access to your vehicle’s backup camera!

  • The AL690 is optimal for virtually all powerchairs and scooters up to 275 lb.
  • Compatible with most minivans and vans
  • This lift offers transportation for your mobility device inside your vehicle’s seating area, securing the powerchair or scooter with manual straps
  • Carries most standard power chairs and shorter scooters
  • Weatherproof, remote hand control (wireless option available)
  • No drilling required in most vehicles; connects to existing 2nd row seat hardware
  • No powerchair or scooter modifications required
  • Third row seat spared in most applications
  • Delivers powerchair or scooter close to driver or passenger door
  • Works with most minivans and SUVs

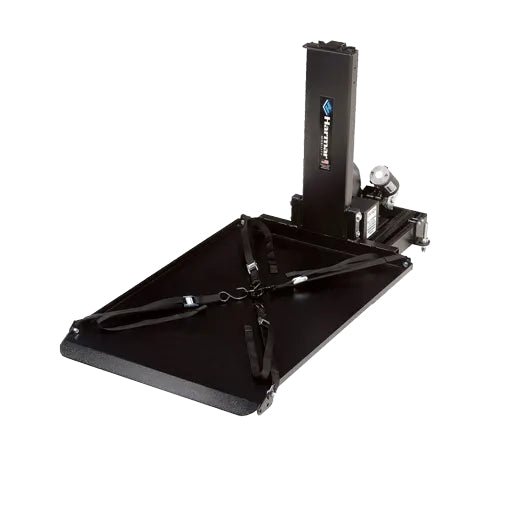

  • Platform: 40" l x 21.5" - 29" w x 55" d (102x55-74x140cm)
  • Headroom Requirement: 32" (81cm)
  • Vertical Reach: 35" (89cm)




  • Accommodates:
    • Manual wheelchairs
    • Power Chairs
    • Scooters
    • Full size vans, Minivans
  • Platform Size: 21.5" to 29" adjustable width platform length 40"
  • Powered: Fully powered
  • Securement: Manual straps
  • Warranty: 3 Years Transferable
  • Weight:
    • Installed Weight: 186 lbs.
    • Lifting Capacity: 275 lbs.
