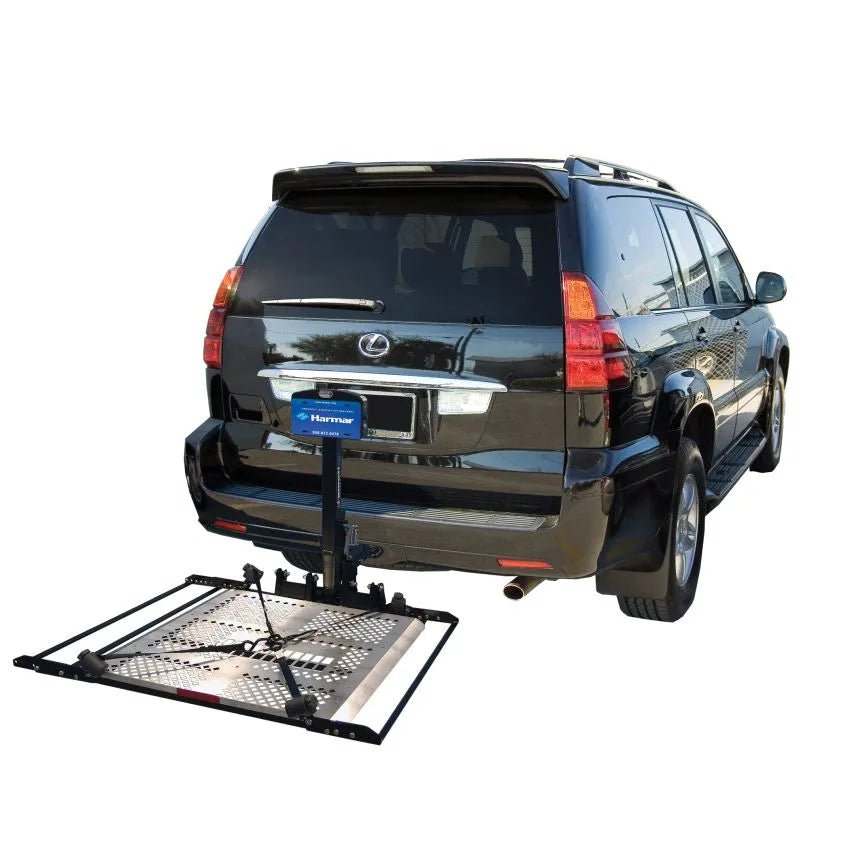

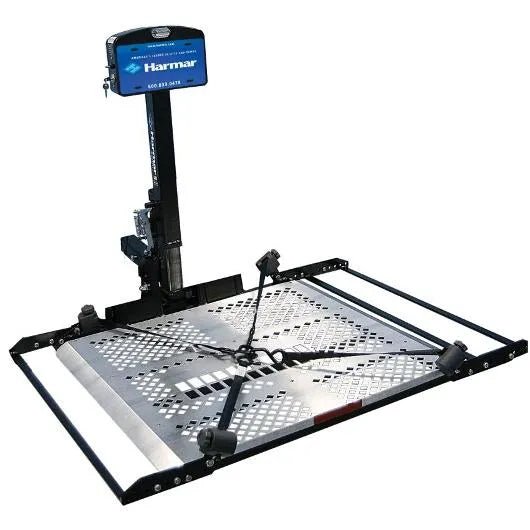

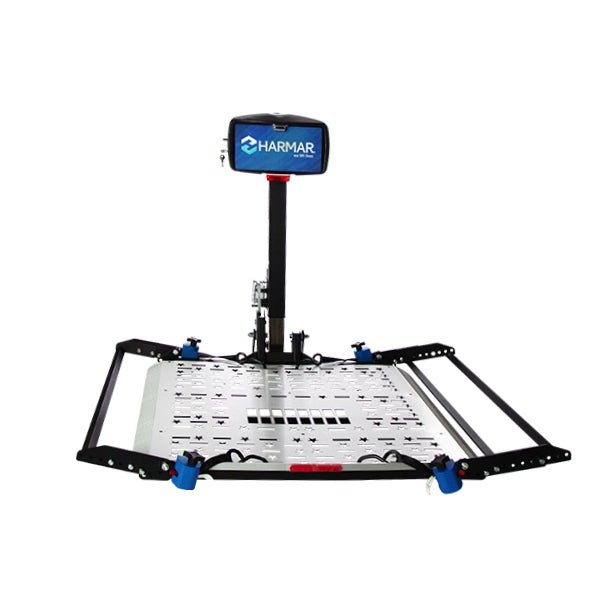

AL301XLHD Heavy Duty Fusion Power Chair and Scooter Lift

by Harmar

Swing away option available! Please confirm with your car’s compatibility with your Harmar dealer. Designed to lift the widest variety of powerchairs and scooters, the AL301LX and AL301XLHD is a premier choice to help make your travels easier! The adjustable wheel cradles and self-tensioning Q’Straint retractors will keep your larger mobility device safe and secure as you hit the road.

  • The AL301XL and AL301XLHD are optimal for larger scooters and powerchairs
  • Compatible with minivans, SUVs, trucks, and vans

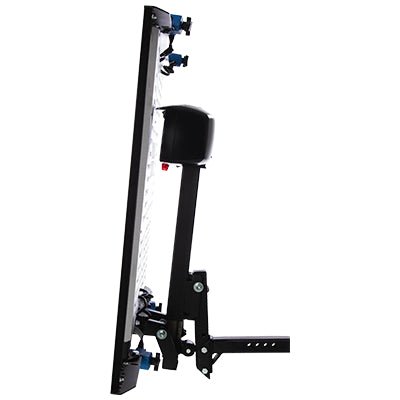

  • This lift series is complete with fully powered lifting and folding
  • Carries larger power scooters or power chairs with no modifications required
  • Self-tensioning, Q'Straint retractors/front and rear cradles

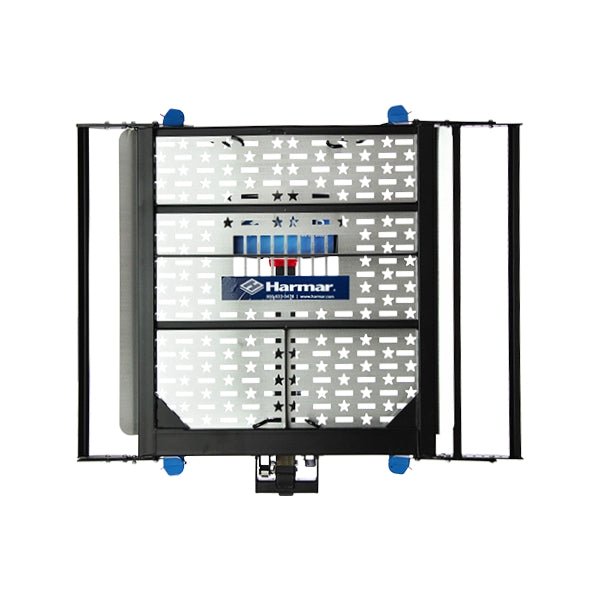

  • Extra large 36" x 39" aluminum deck/adjustable cradles extend up to 53" (Optional, no charge item)
  • License plate mount included
  • Swing-Away option available
  • Class III or greater hitch required


Platform Size: 36" x 39" - 53" (91x99-135cm)




  • Accommodates:
    • Large Scooter
    • Large Power Wheelchairs
  • Platform Size: 36" x 39" adjustable cradle extends up to 53"
  • Hitch Class: III or greater
  • Powered: Fully powered
  • Included: AL107 hitch post AL123HD class III heavy duty hitch adapter License plate mount
  • Securement:
    • 4 self-tensioning
    • Q'Straint retractors Front and rear wheel cradles
  • Warranty: 3 Years
  • Weight:
    • Installed Weight: 102 lbs.
    • Lifting Capacity: 400 lbs.
