Description

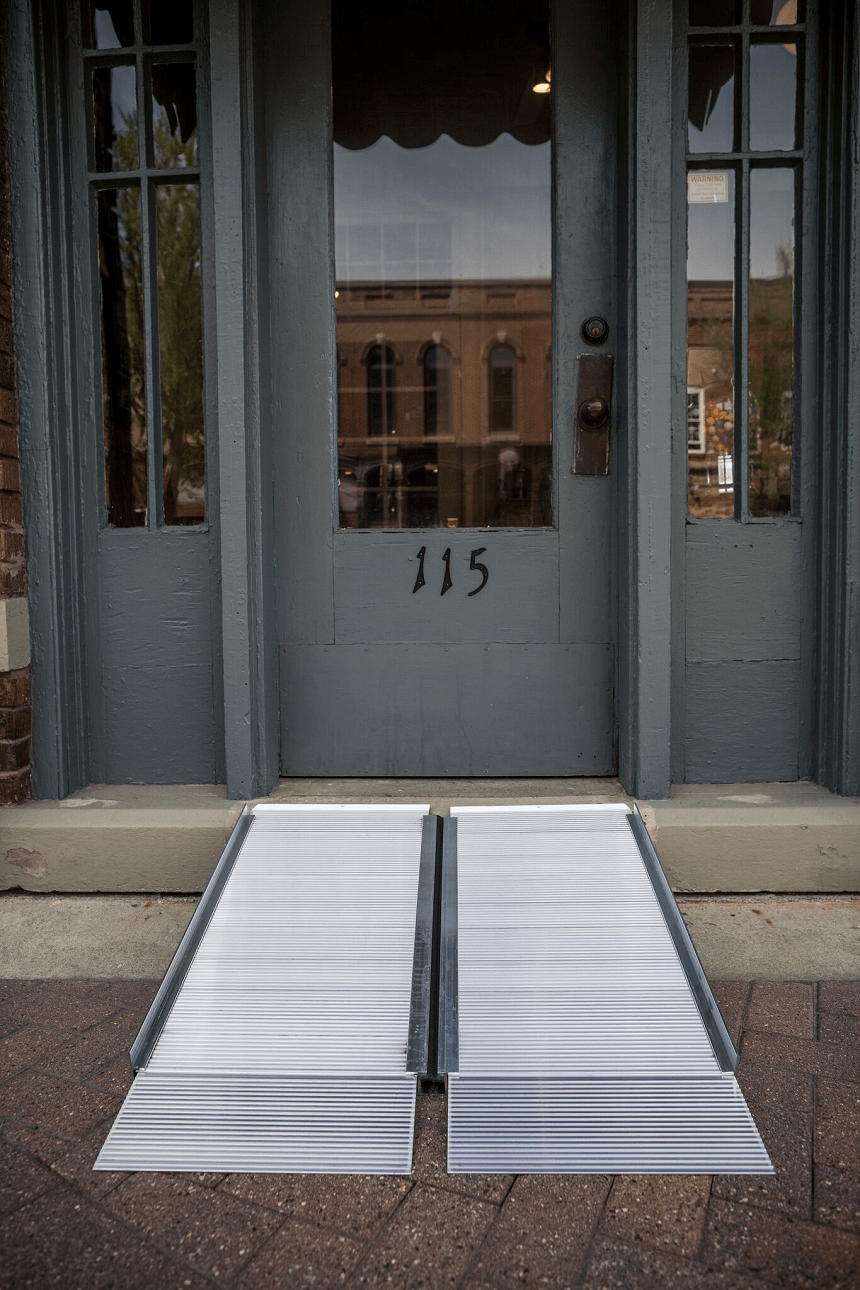

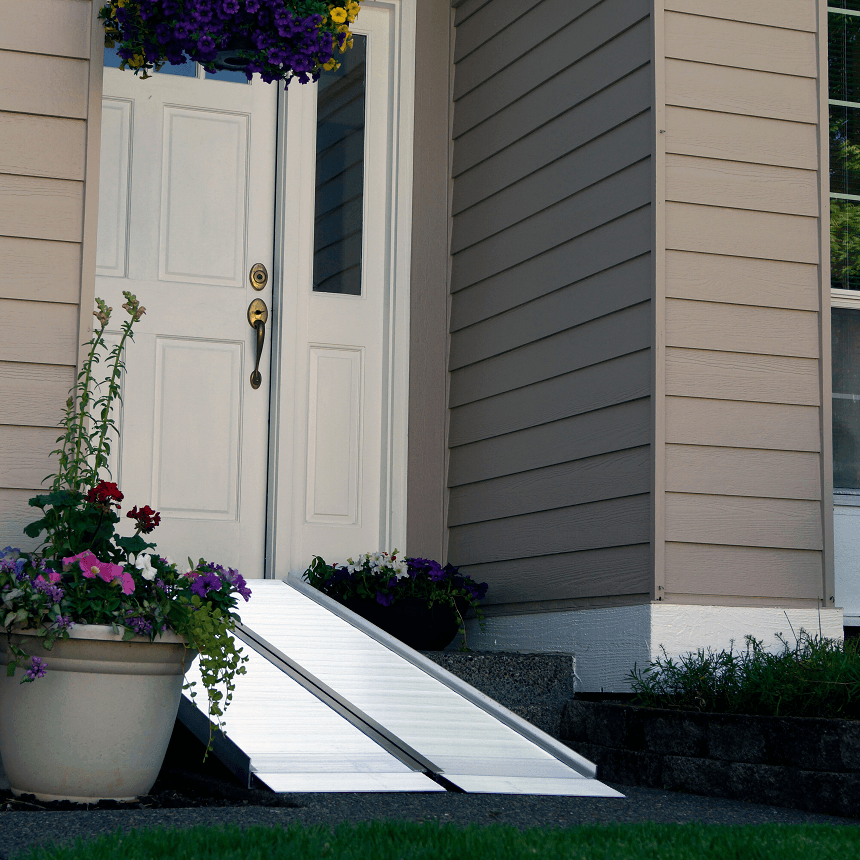

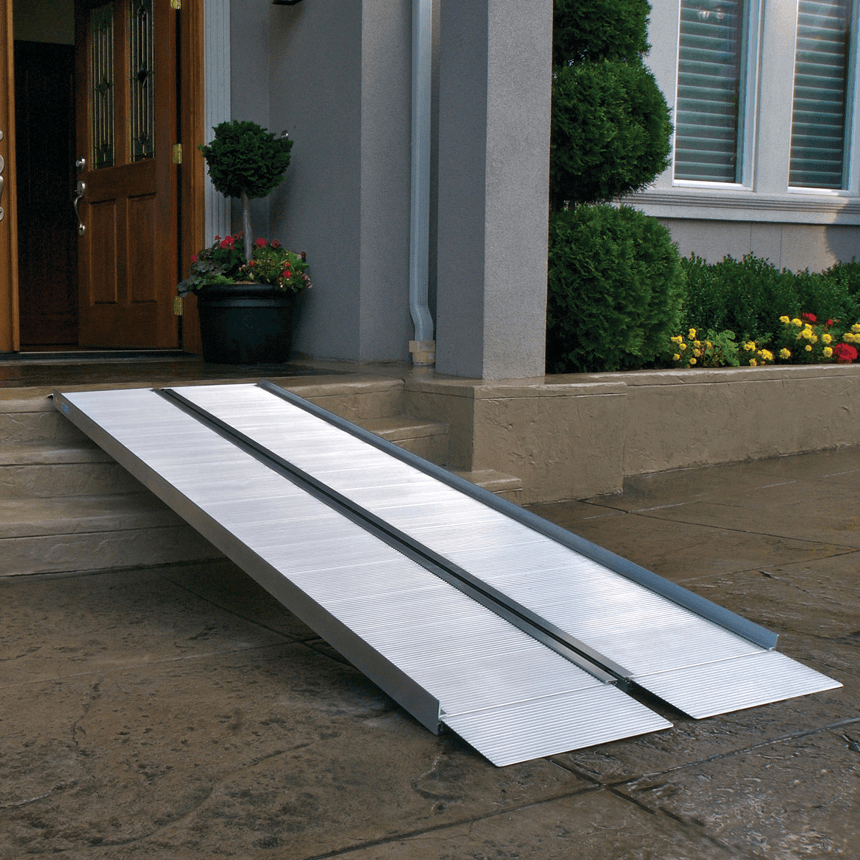

This portable ramp, with its single-fold design, sets up quickly and is ideal for scooters and wheelchairs. Made of lightweight aluminum with an easy-to-carry design, the SUITCASE Singlefold Ramp is fitted with ergonomically-designed handles and a full-length hinge for additional strength and stability. Designed for high traffic use, this durable ramp is available in 2’ to 8’ lengths and features an extruded slip-resistant tread for superior traction. Browse through the tabs below to learn more.
Features
- Available in 2’ to 8’ lengths to eliminate your specific rise.
- Singlefold ramp hinge
- Ergonomically Designed Handles
- Self Resistant Tread
- Self-adjusting bottom transition plates allow for smooth ramp-to-ground transitions. Formed top lip transition plates offer secure placement.
- Side rail curbs serve as guides to help prevent mobility devices from driving off the edge of the ramp.

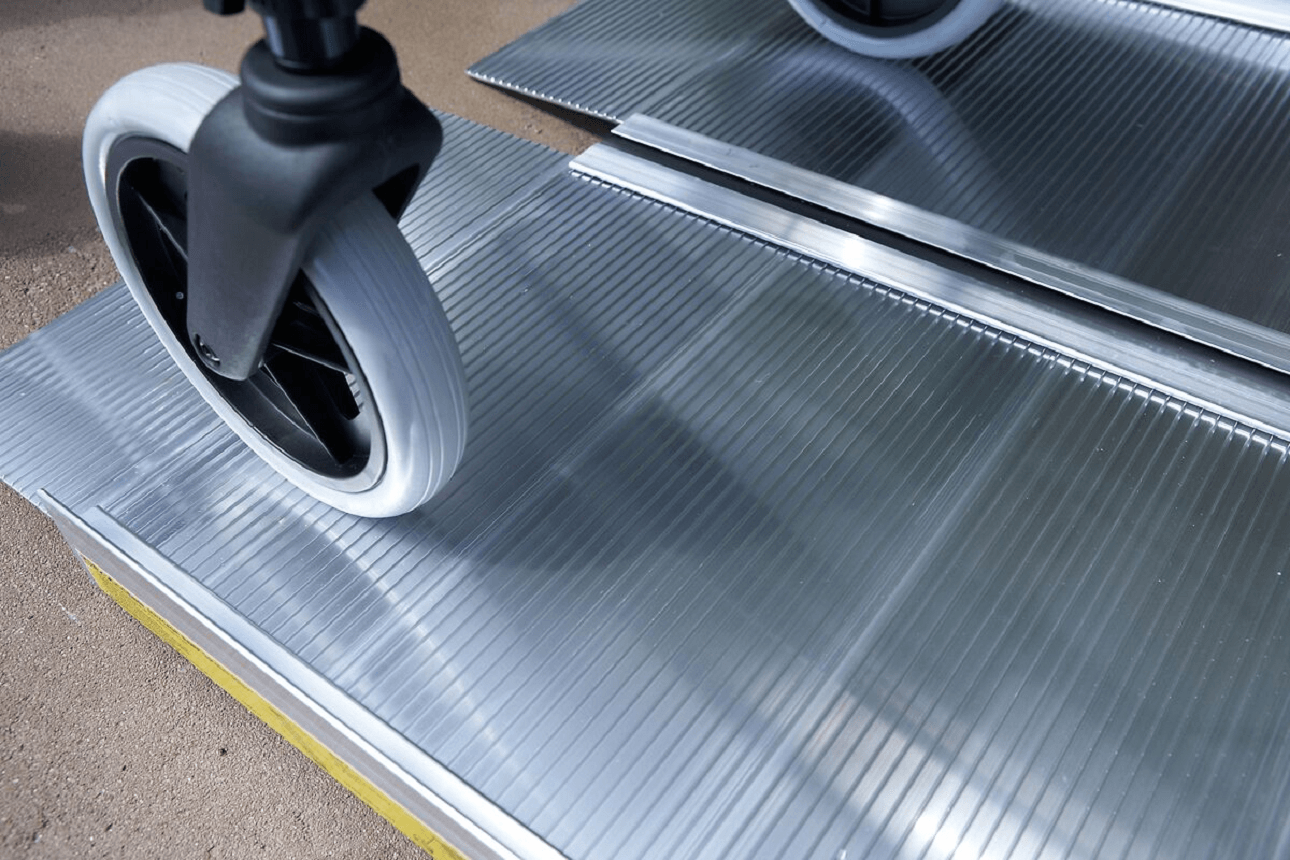

- Made of lightweight, heavy-duty aluminum with a slip-resistant tread for superior traction.
- Non-protruding, full-length hinge offers additional strength and stability while reducing pinch points.

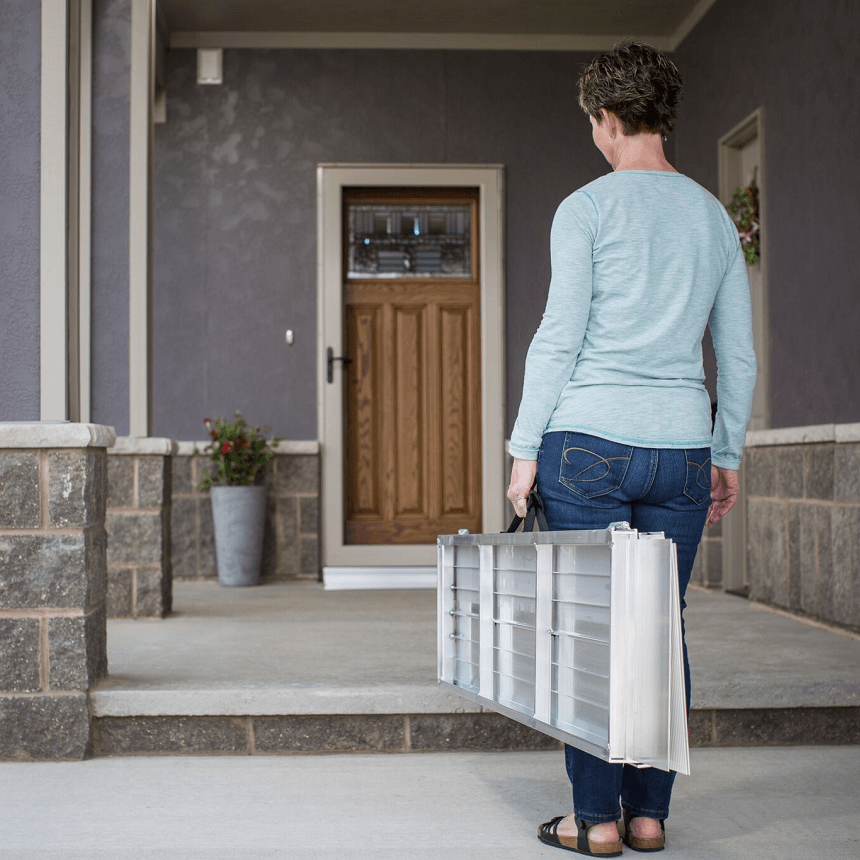

- Durable, ergonomically-designed carrying handle for convenience and comfort.
- Optional Top Lip Extension (TLE) compatible.
- Made in the USA.
Specification
Size
- Usable Size:
- SF02: 2" x 30’’ (5x76cm)
- SF03: 3" x 30’’ (8x76cm)
- SF04: 4" x 30’’ (10x76cm)
- SF05: 5" x 30’’ (13x76cm)
- SF06: 6" x 30" (15x76cm)
- SF07: 7" x 30’’ (18x76cm)
- SF08: 8" x 30" (20x76cm)
- Folding Size:
- SF02: 24" x 15" x 4" (61x38x10cm)
- SF03: 36" x 15" x 4" (91x38x10cm)
- SF04: 48" x 15" x 4" (122x38x10cm)
- SF05: 60" x 15" x 4" (152x38x10cm)
- SF06: 72" x 15" x 4" (183x38x10cm)
- SF07: 84" x 15" x 4" (213x38x10cm)
- SF08: 96" x 15" x 4" (244x38x10cm)
Material
Aluminium
Details
- Made Of Aluminum: yes
- Slip-Resistant Surface: yes
- Built-In Carrying Handle: yes
- For Residential Use: yes
- For Wheelchairs & Scooters: yes
- Weight
- SF02: 11 lbs.
- SF03: 17 lbs.
- SF04: 23 lbs.
- SF05: 29 lbs.
- SF06: 34 lbs.
- SF07: 41 lbs.
- SF08: 47 lbs.
- Weight Capacity: 800lbs
- Warranty: Lifetime
