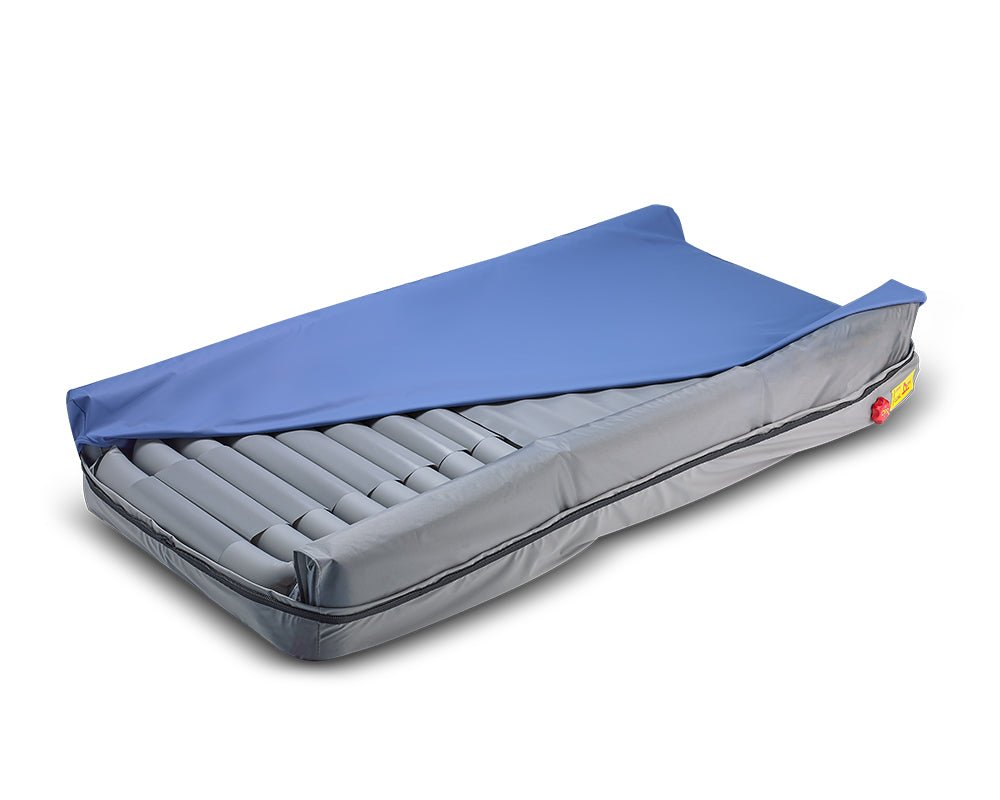

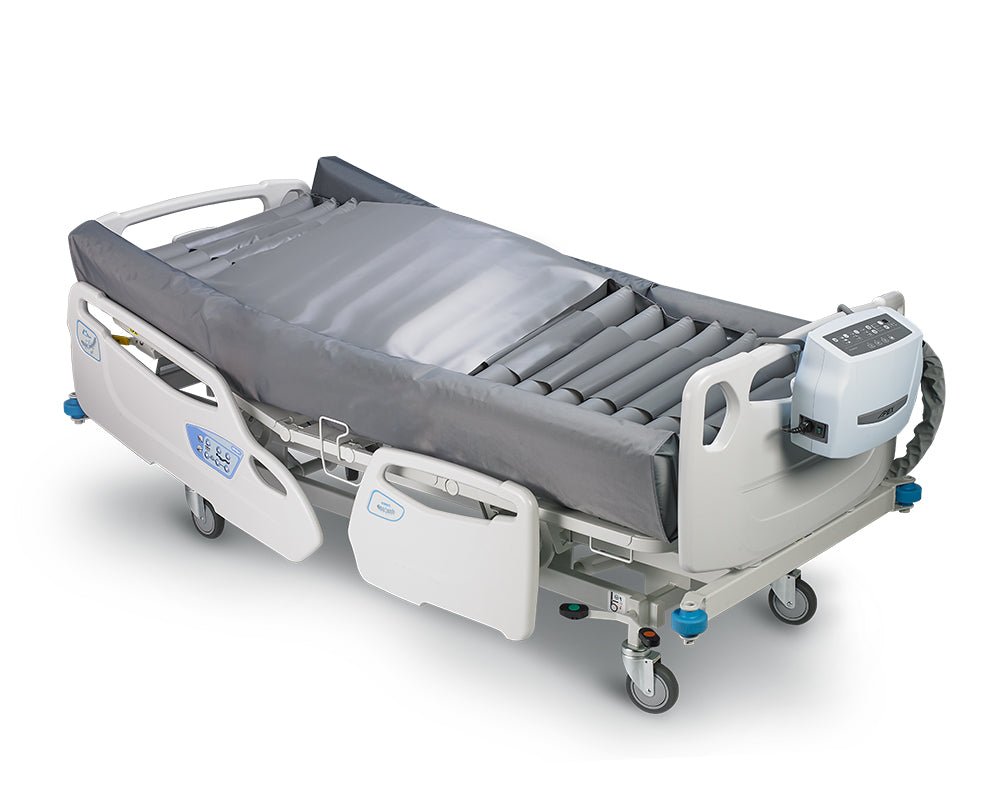

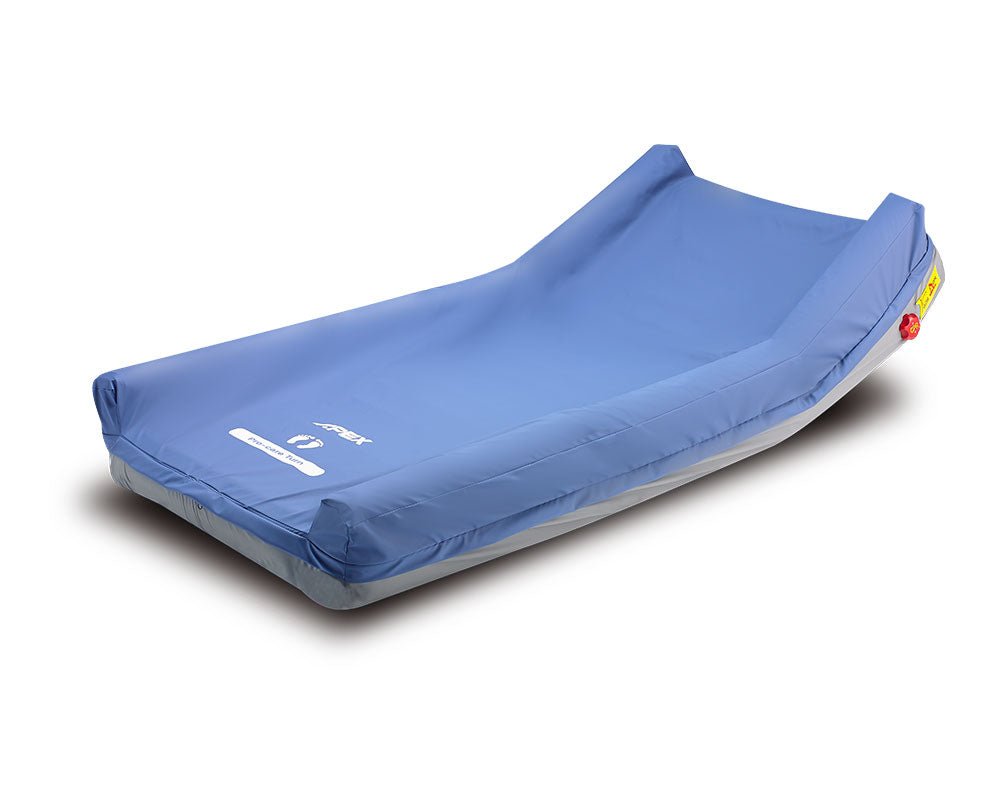

Pro-care Turn System with Stretch

by Apex
SKU APEX-PD07702
Description

Suitable for patients in medium to high risk of pressure injuries. Up to 30° of bilateral turning therapy to assist patient repositioning and enhance pressure relief. 3-in-1 therapy available for individual healthcare plans with effortless patient repositioning. Designed for caregivers to save time and resources while maintaining quality care to patients.

Features

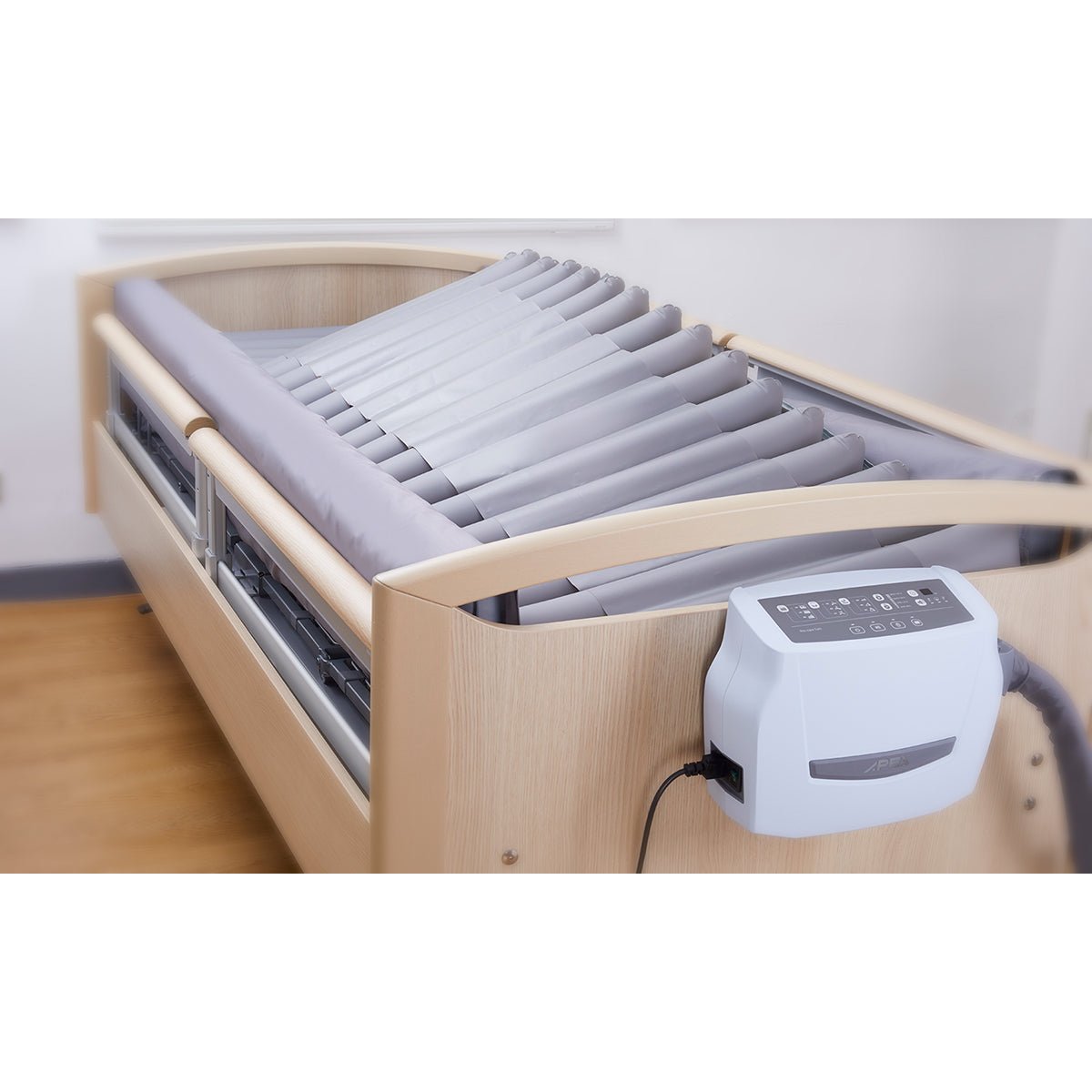

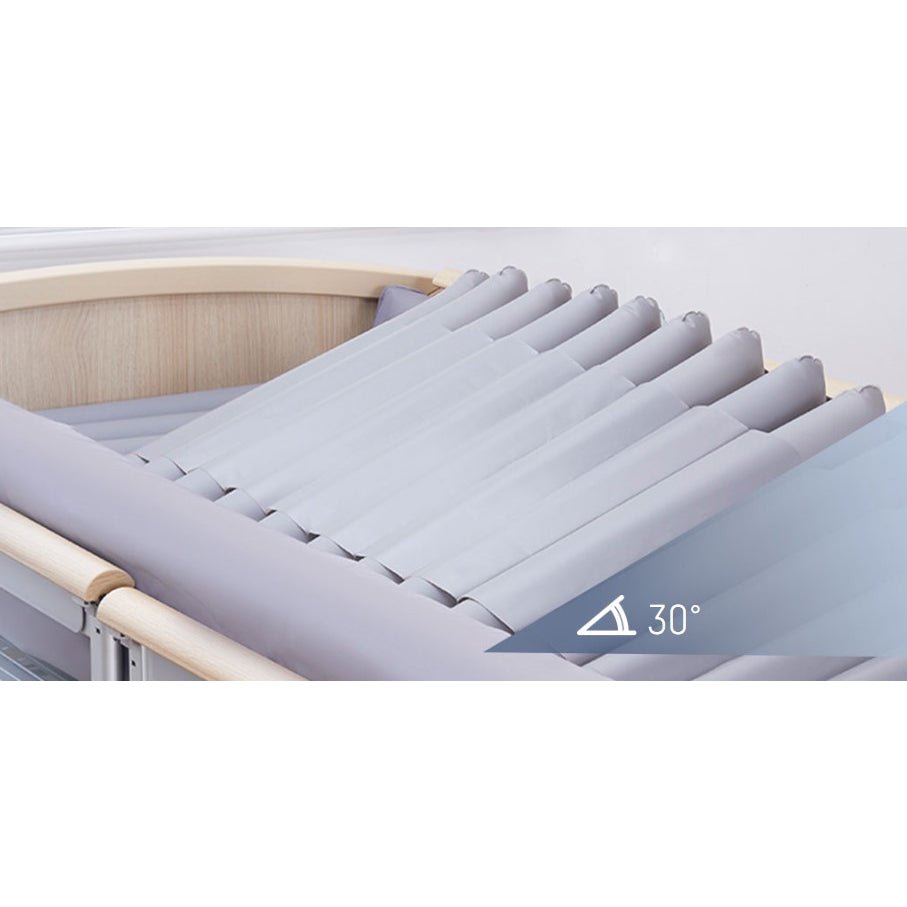

  • Enhancing Pressure Relief by 30° of Bilateral Turning: Bilateral turning can significantly reduce interface pressure on patient´s body whilst increase capillary circulation. 30 degrees of turning not only complies with clinical guidelines but also provides optimal comfort

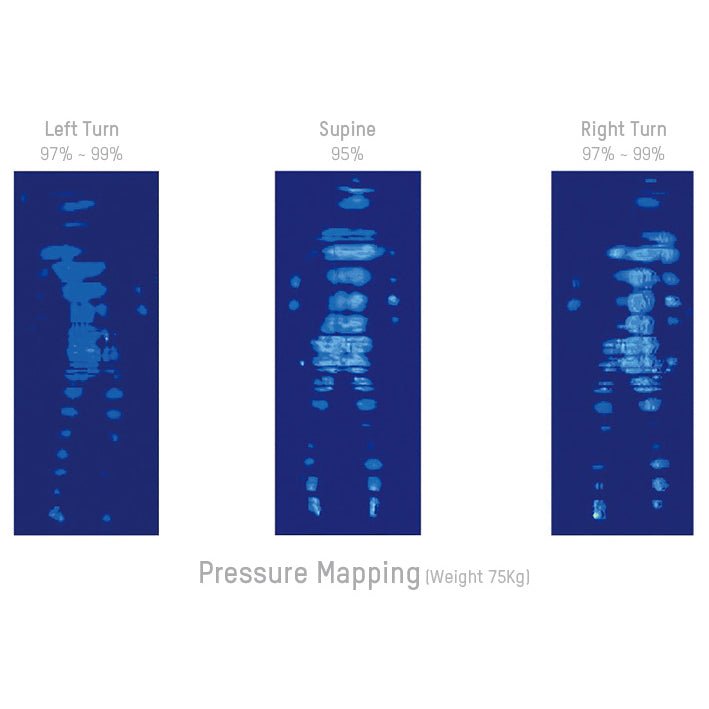

  • Effective Pressure Relief by Bilateral Turning: The pressure mapping showcases a proven pressure relief off patient´s body by 30° of bilateral turning
  • Effortless, 3-in-1 Therapy Solutions: Turning, Alternating and Continuous Low Pressure modes to tailor to individual pressure care plans

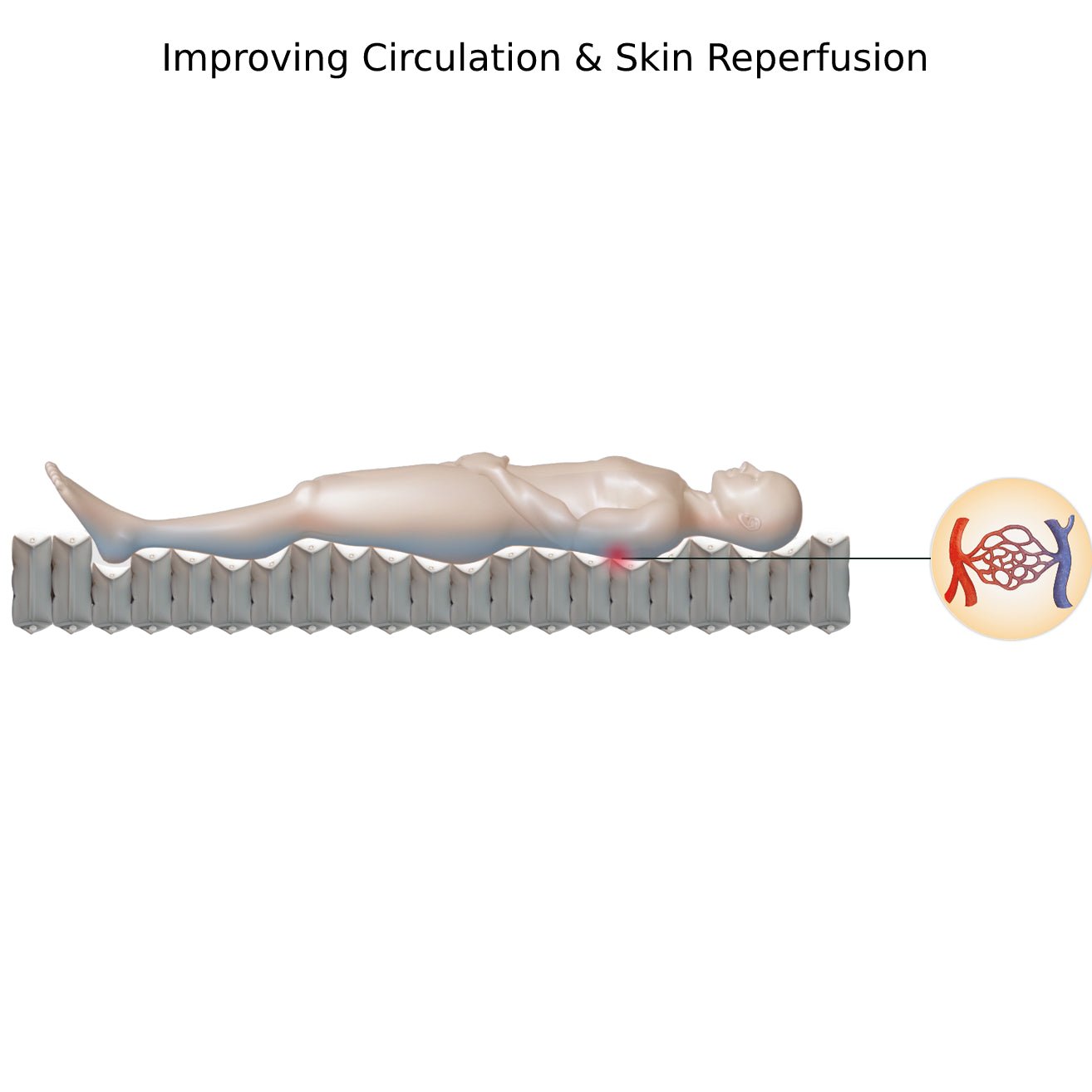

  • Improving Circulation & Skin Reperfusion: The unique setting for lateral turning therapy with alternating helps on skin reperfusion by the moderate pressure from each inflation cycle which improves body circulation and skin integrity

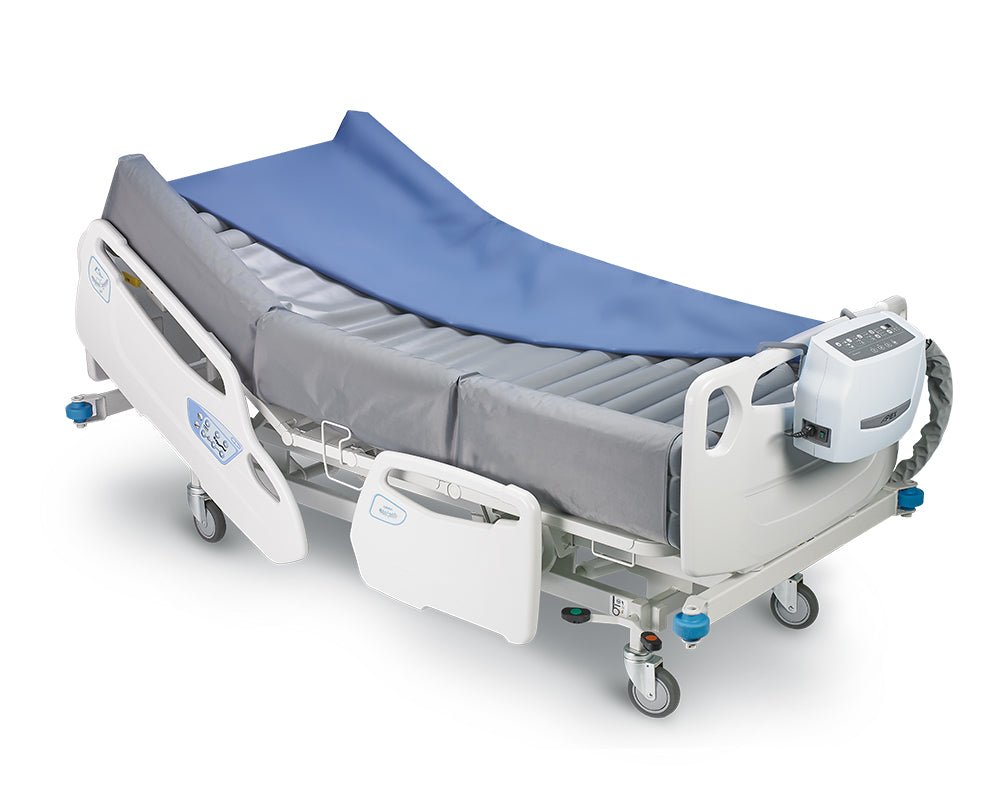

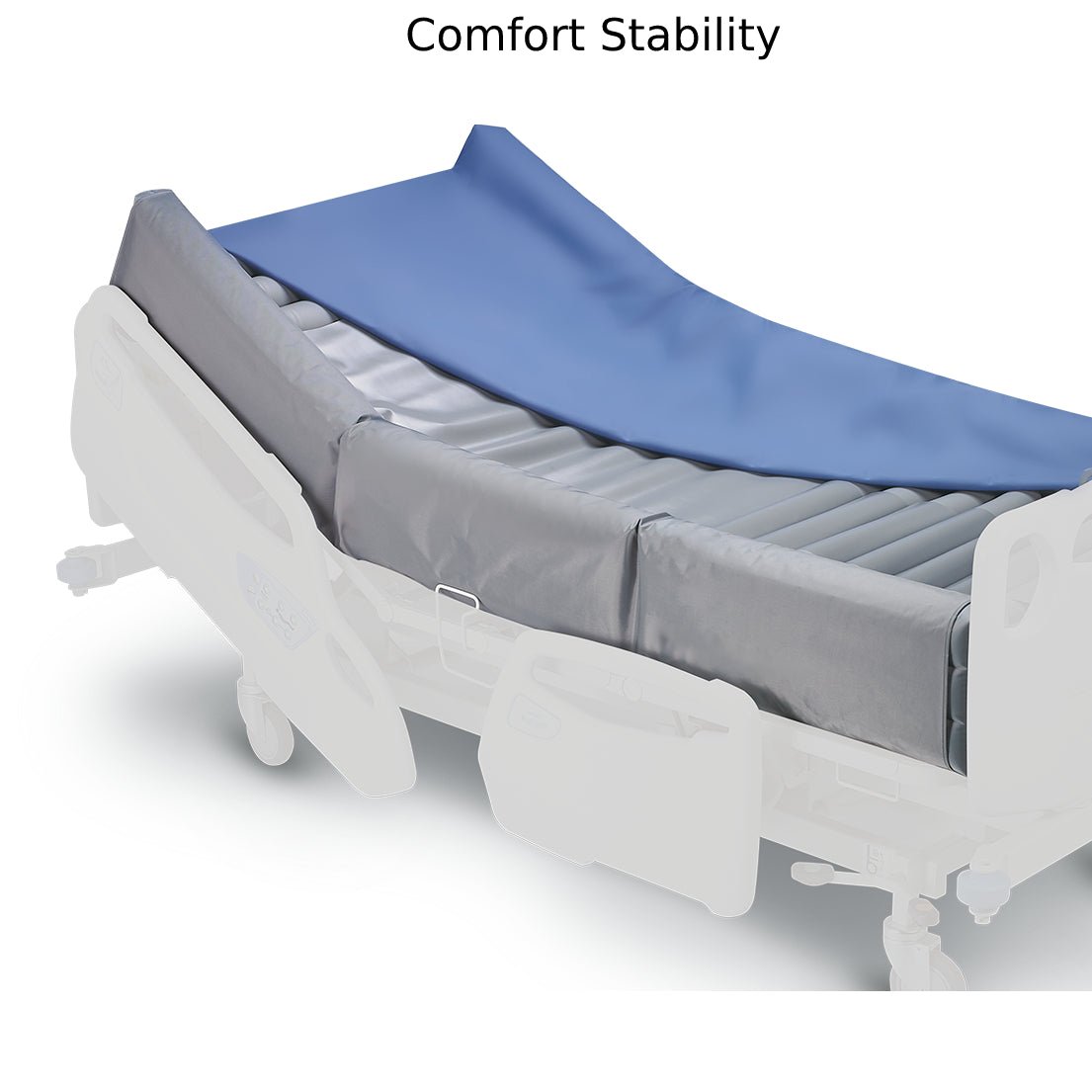

  • Patient Protection Level Up: The side bolsters reduce the risk of entrapment and accidental falling out of bed, also support patient´s arms while in turning therapy

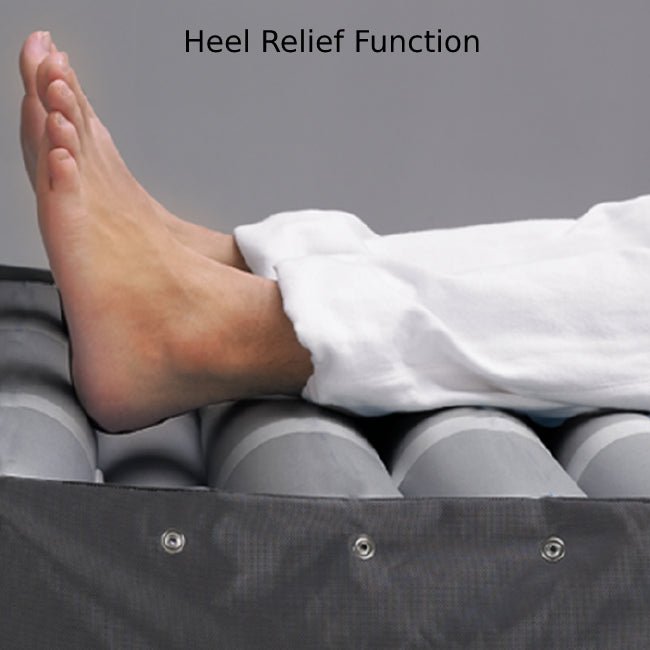

  • Heel Relief Function: Single air-cell deflation floats the vulnerable heels with zero pressure

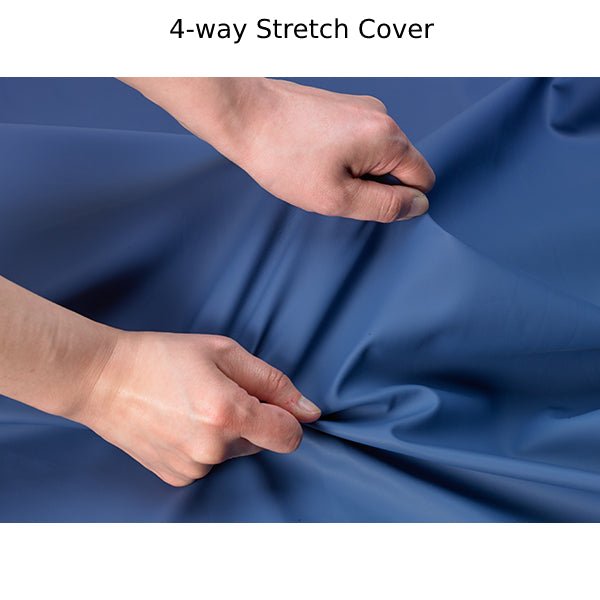

  • 4-way Stretch Cover:
    • Low friction and shear
    • Vapour permeable
    • High-flame retardant
    • Water resistant

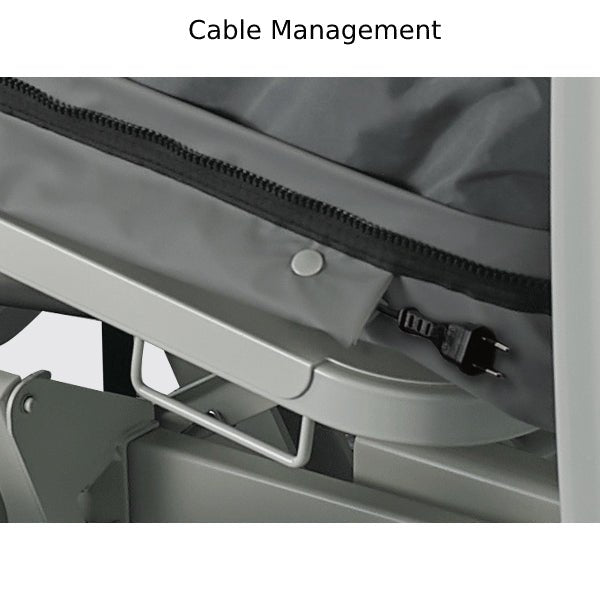

  • Cable Management: Cable management for a safety operational environment

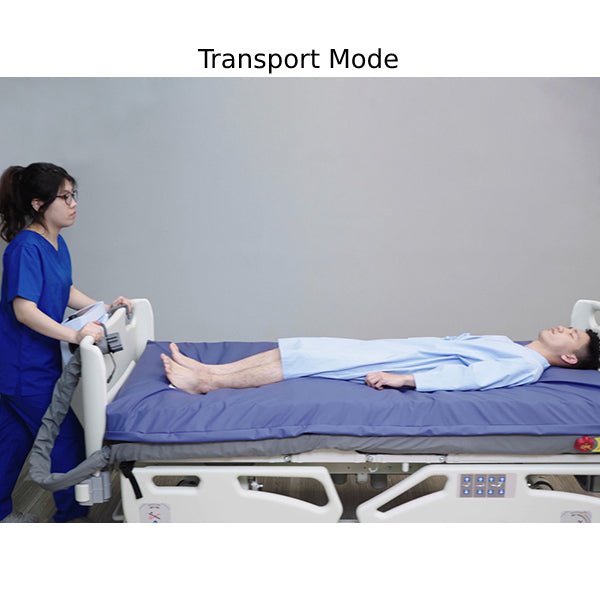

  • Transport Mode: Mattress remain to be a static surface for 24 hours during power failure and patient transfer
  • Pause Function: In any scenario possible, it allows caregiver to temporarily stop the pump operation for 10 minutes

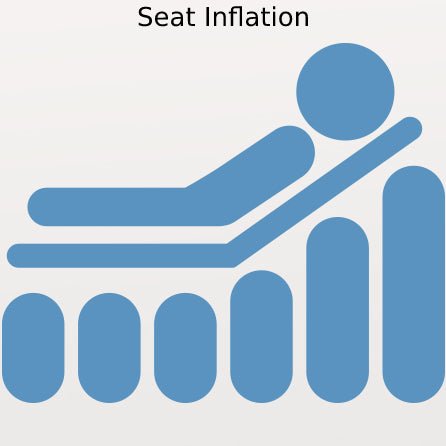

  • Seat Inflation: Offering extra support in sacral area when in during sitting position
  • Visual and Audible Alarm:
    • Low Pressure
    • Power Failure
    • Tech Support

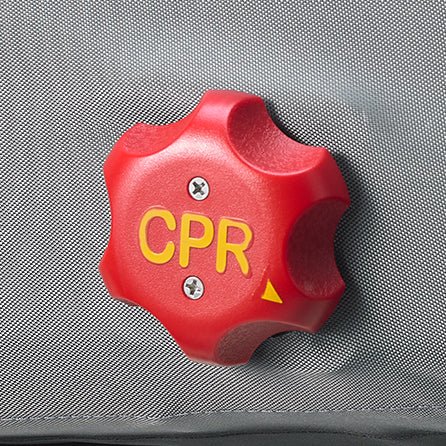

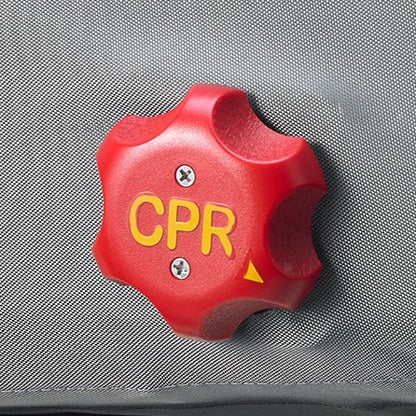

  • CPR Knob:
    • CPR deflation time <15 sec
    • Shorten deflation time of mattress to seek an efficient emergency care
Specification

Size

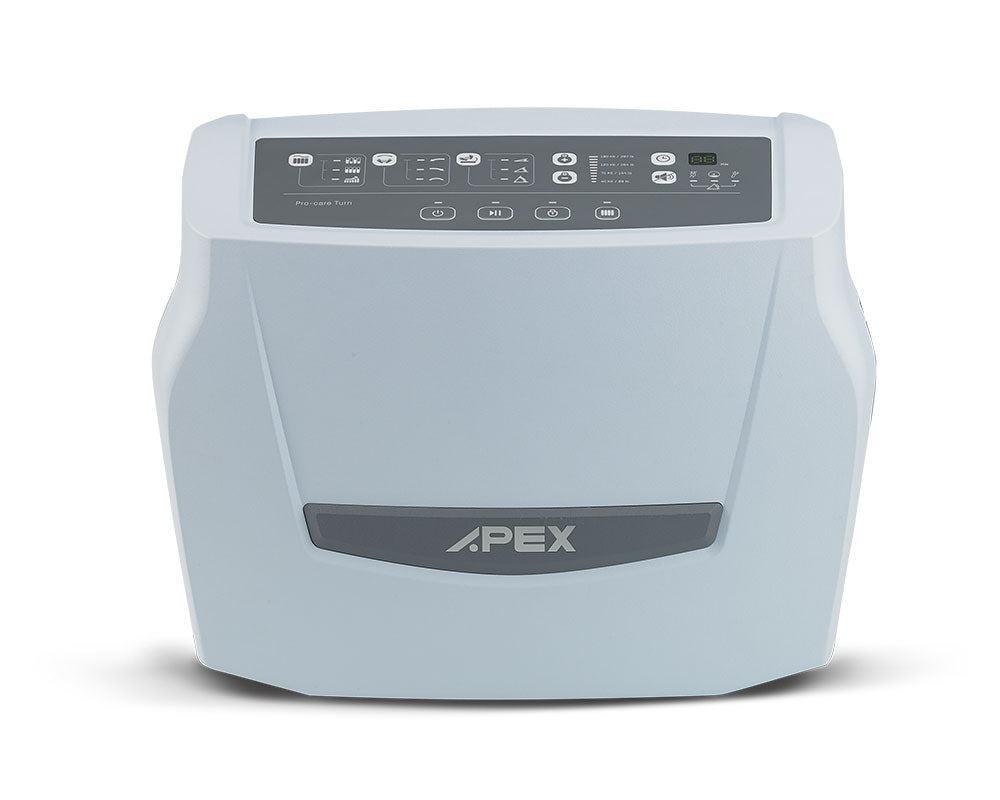

  • Pump: 13" x 6" x 10" (34.1x16.5x26cm)
  • Mattress: 79" l x 35" w x 5" h (200x90x13cm)
  • Cell Height: 5" (13cm)
  • Weight:
    • Pump: 9.9 lbs.
    • Mattress: 25 lbs.
  • Maximum Patient Weight: 397 lbs.

Material

  • Pump Case: Flame Retardent ABS
  • Mattress:
    • Cover Material: 4-way stretch PU / Polyester cover with welded seams
    • Cell Material: TPU

Details

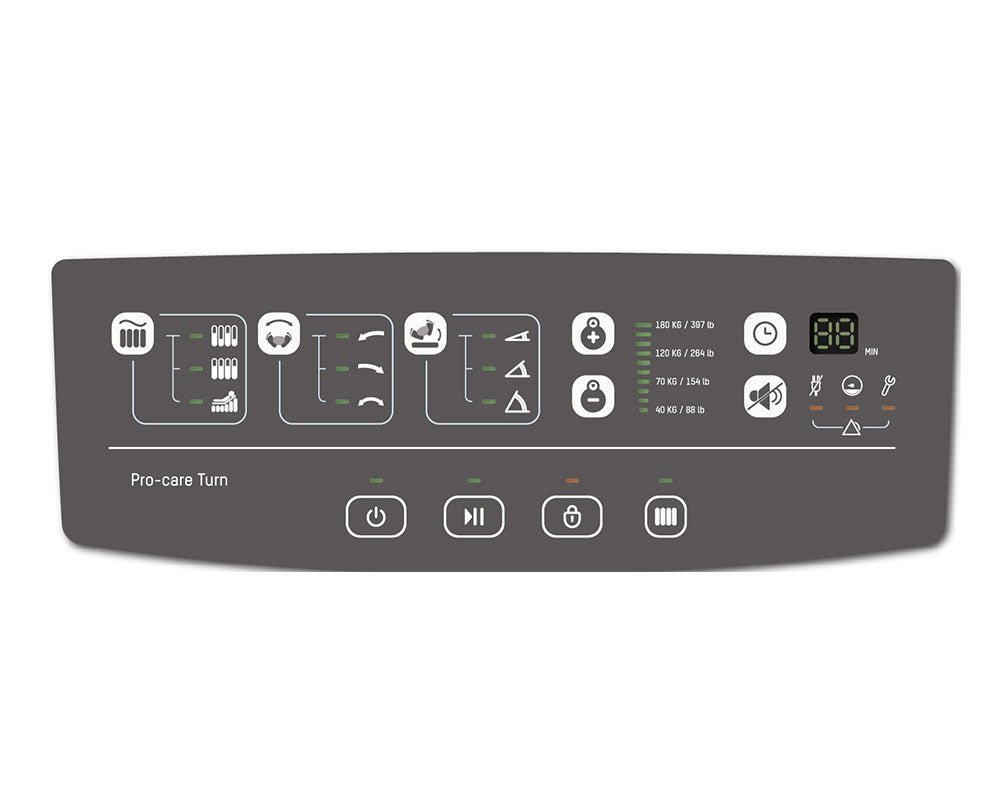

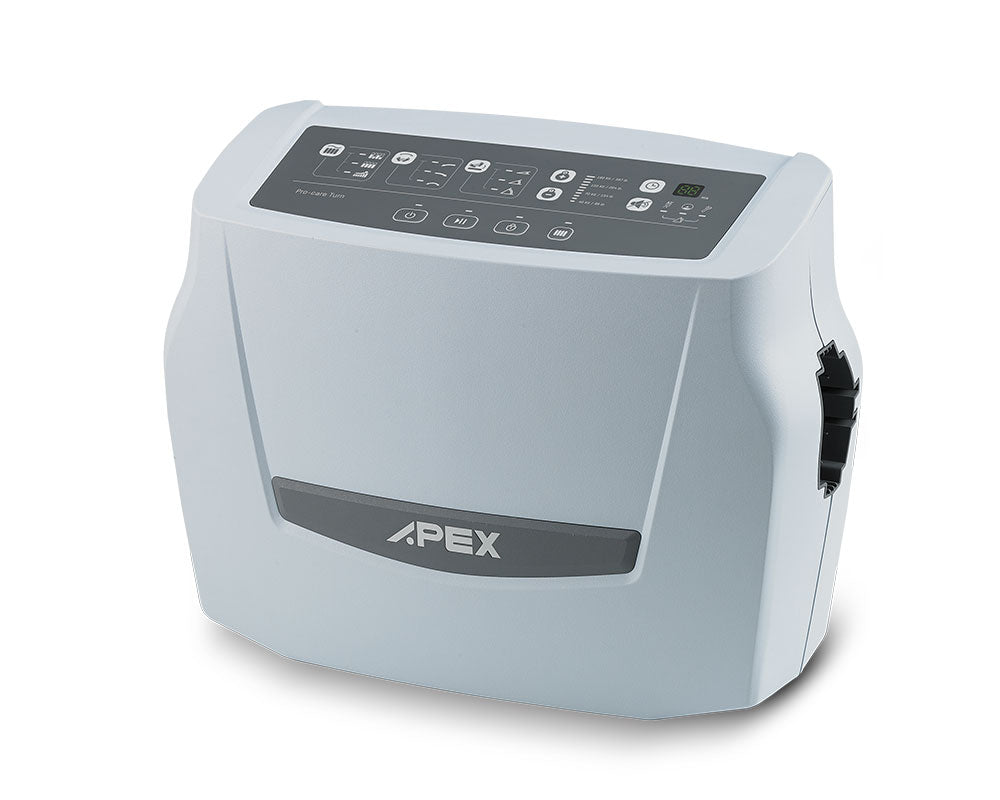

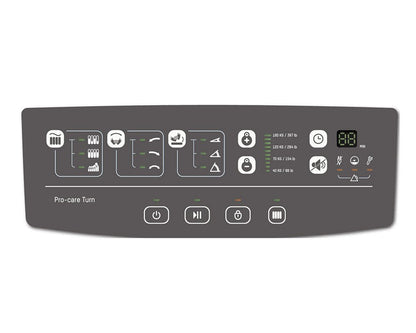

  • Pump:
    • Supply Voltage: AC 230V, 50Hz
    • Operating Cycle: 10, 15, 20, 25 min
    • Dwell Time: 10, 20, 30, 60 min
  • Mattress:
    • Flame Retardency: EN 597-1 & EN 597-2
    • Cell Height: 13 cm cells with two turning cells underneath from the 4th to 12th air cells
    • CPR Knob: 1 Piece
