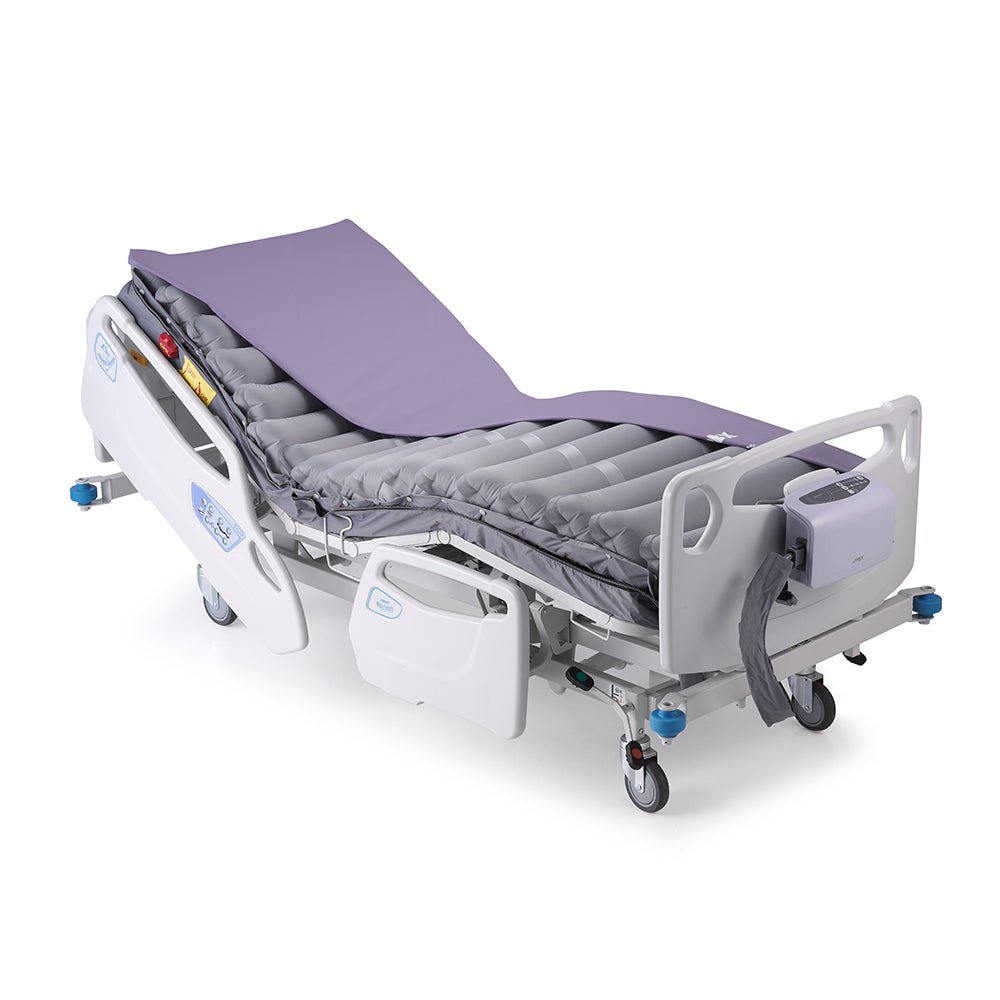

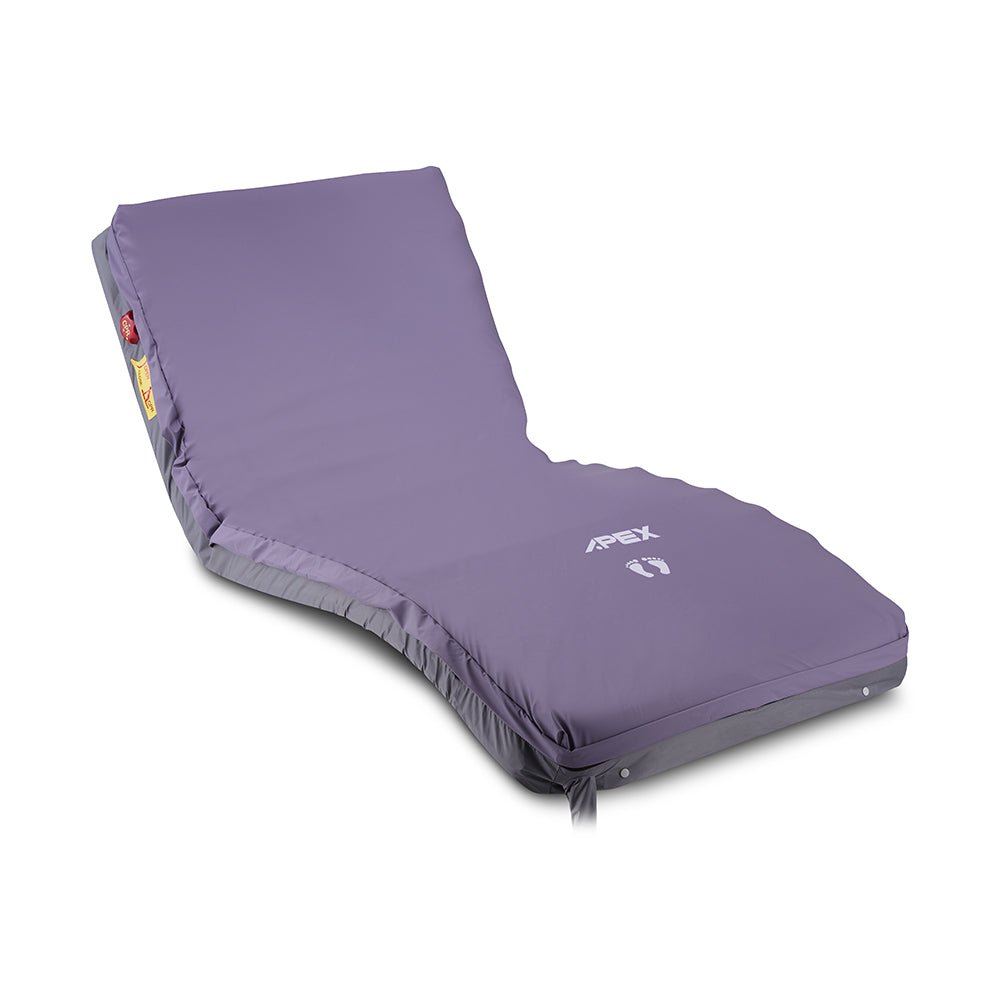

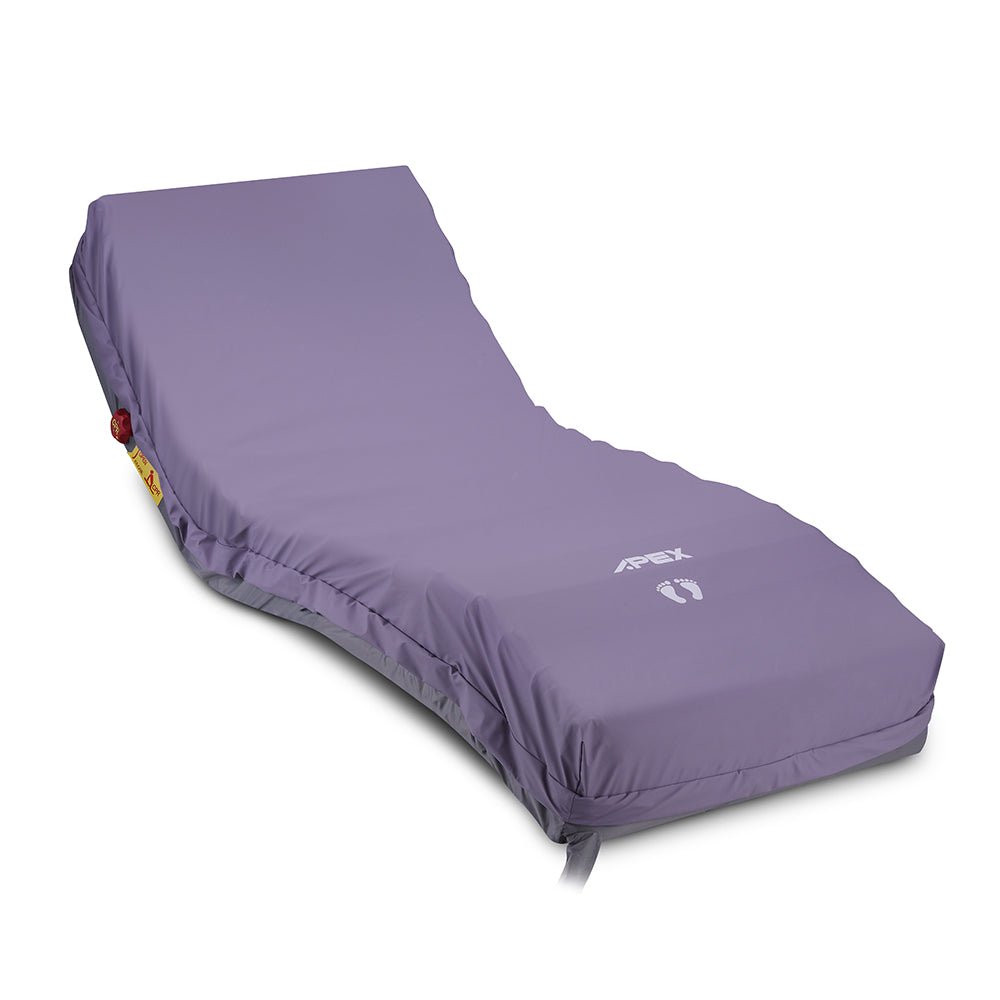

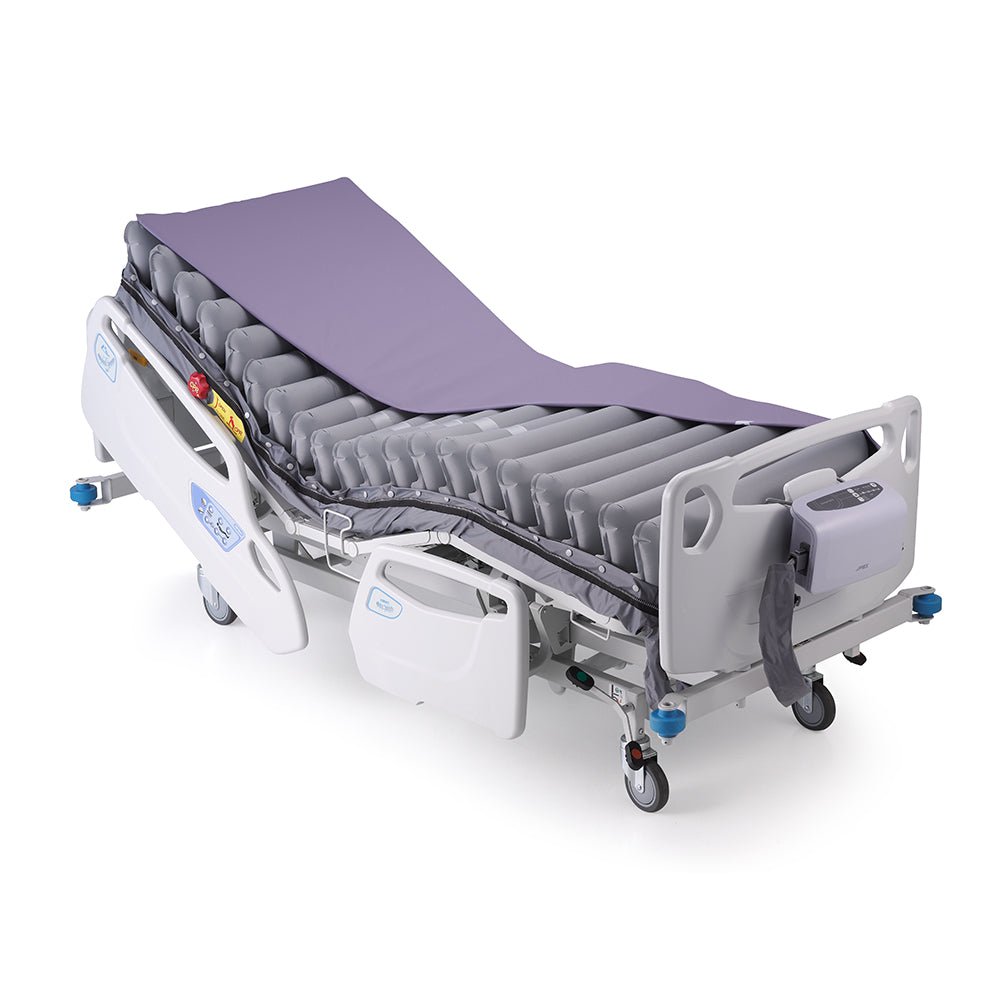

Domus Auto with Quilted Cover

by Apex
SKU APEX-PD03501
Description

Suitable for patients with medium to high risk of pressure injuries. Automatic adjustment providing optimal pressure according to patient's weight. CPR knob for quick deflation & maximum security. Heel relief for optimal heel protection.

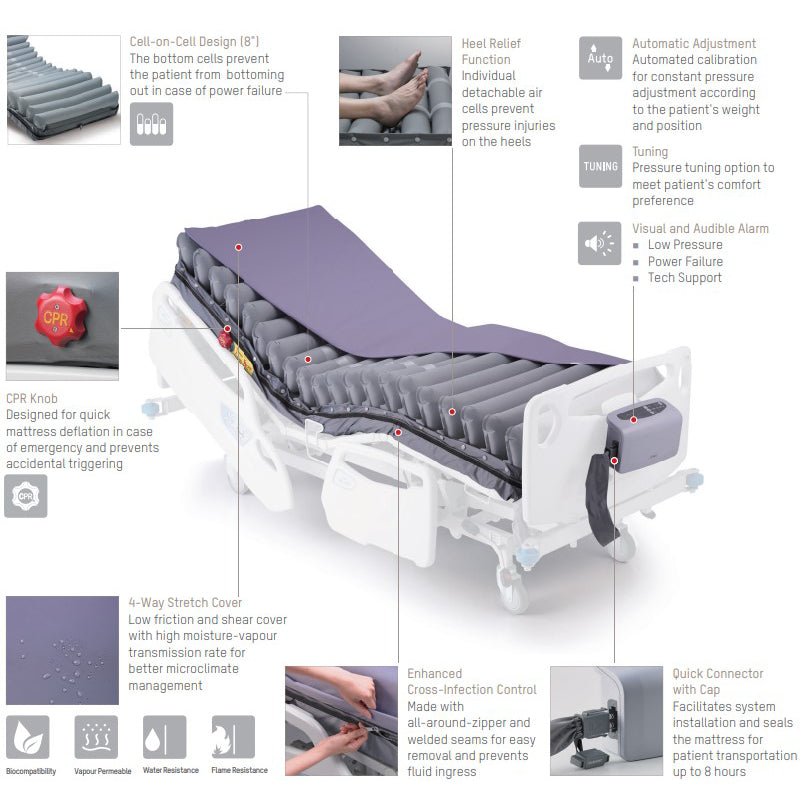

Features

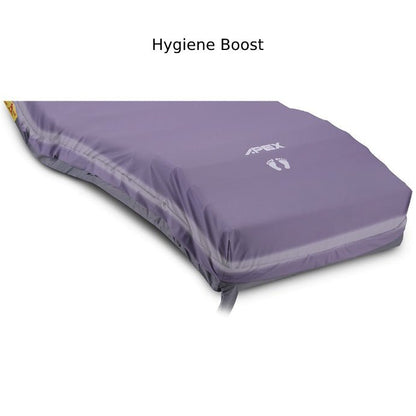

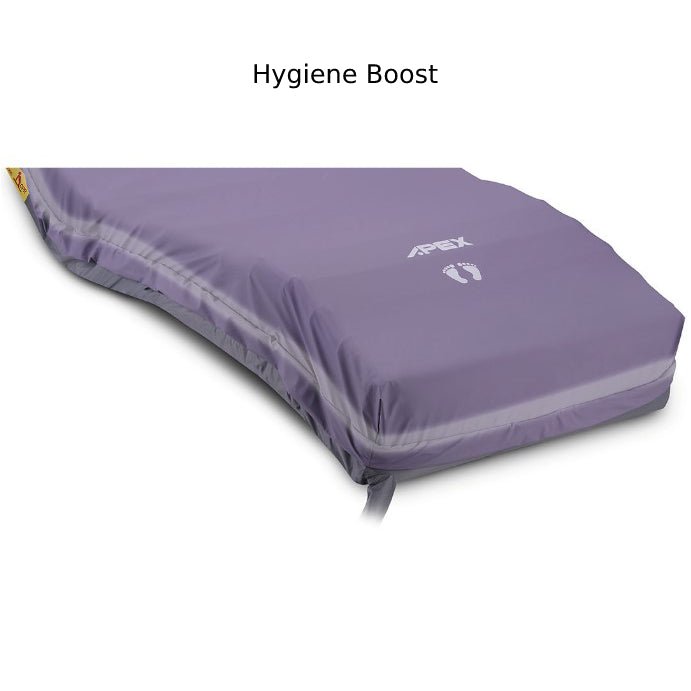

  • Hygiene Boost: Cover with Welded Seams enhanced Cross-Infection Control by Preventing Fluid Ingress

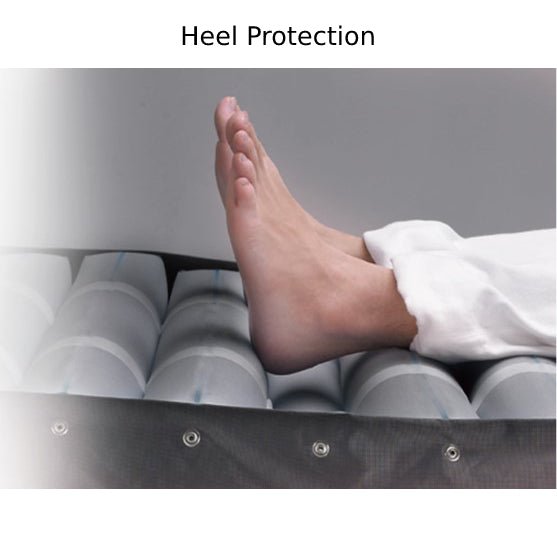

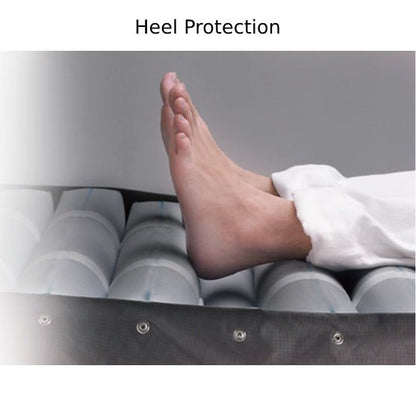

  • Total Heel Protection: Heel Zone Cells allow the Patient's Heels to Float with Zero Pressure Applied

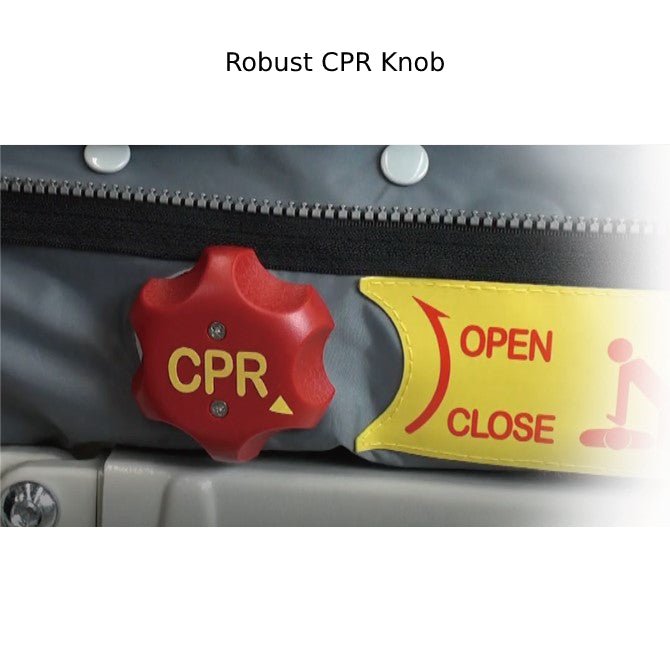

  • Robust CPR Knob: Designed to Ensure Quick & Easy Access During Emergency and Prevents Accidental Triggering

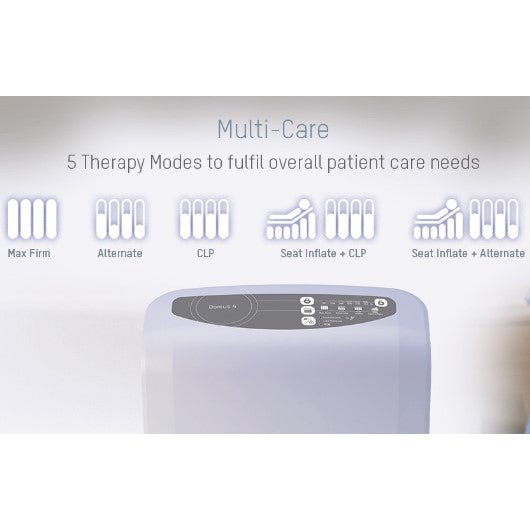

  • Multi-Care:5 Therapy Modes to Fulfil Overall Patient Care Needs

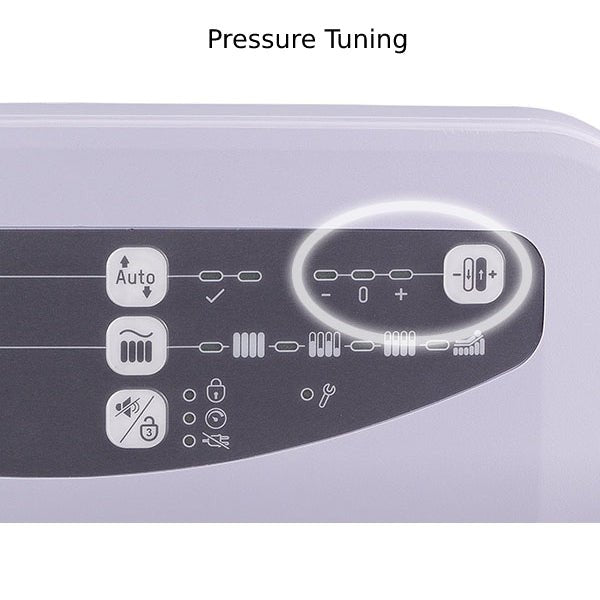

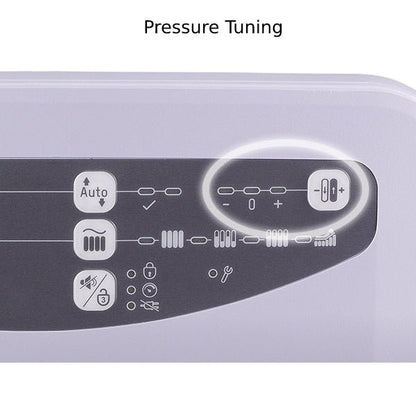

  • Pressure Tuning:After automated pressure calibration, tuning option is available for adjustment according to the patient's comfort preference

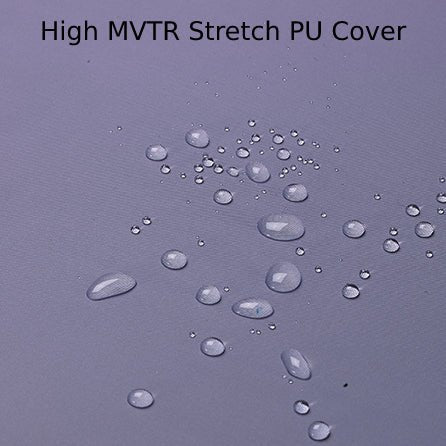

  • High MVTR Stretch PU Cover: Low friction and shear cover with high moisture-vapor transmission rate for better microclimate management

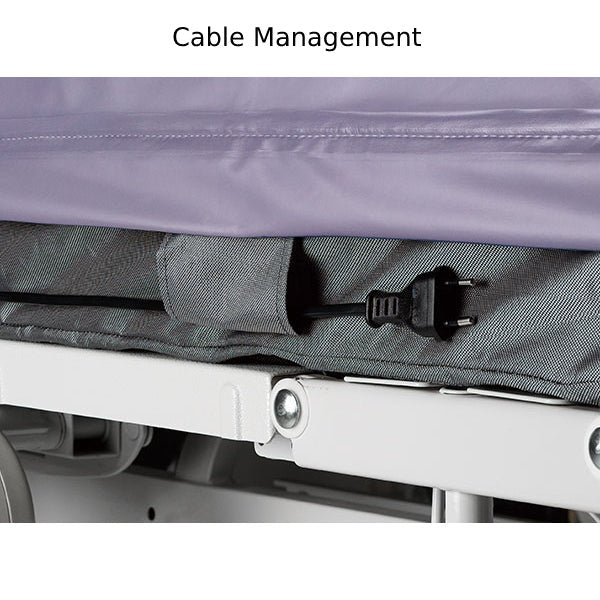

  • Cable Management: Manage your cable and avoid tripping hazard with five loops located on the side of the mattress
  • Visual and Audible Alarms: Identify abnormality immediately for quick and precise troubleshooting decision
    • Low Pressure
    • Power Failure
    • Technical Support

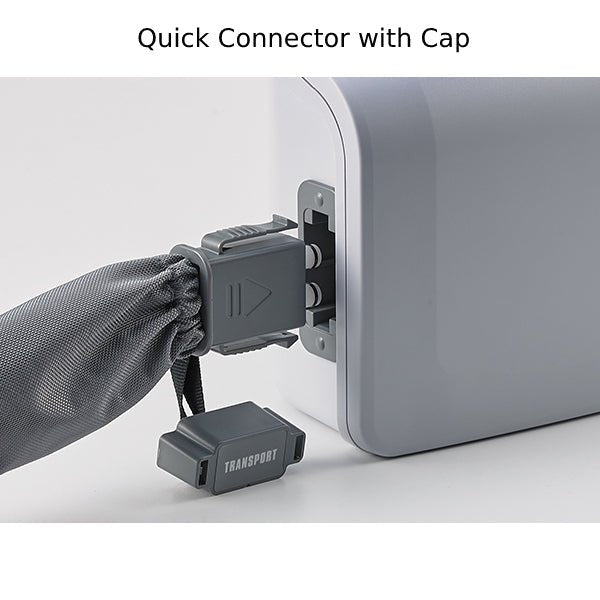

  • Quick Connector with Cap: Fasten the cap and transform the mattress into a stable surface for safe patient transport

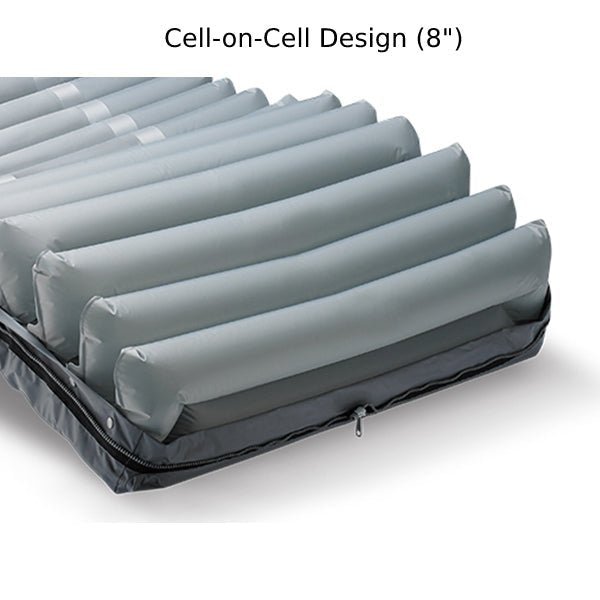

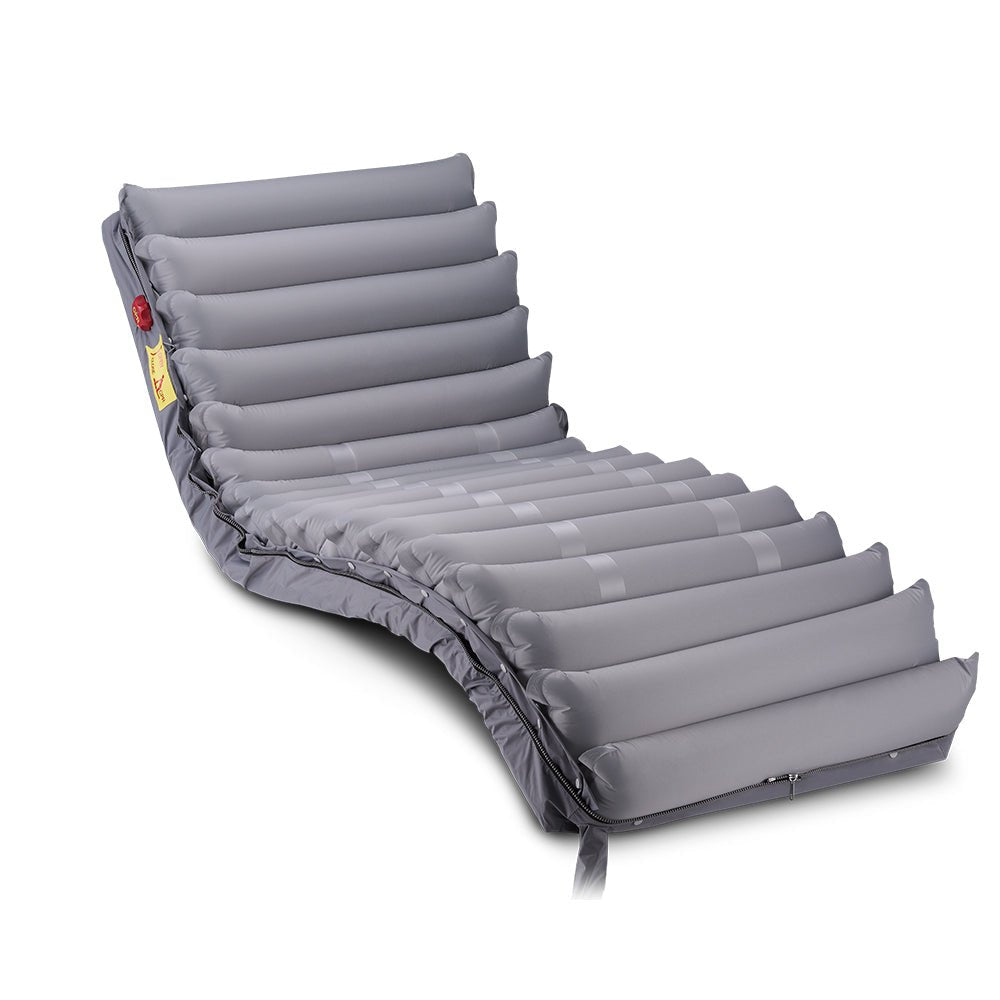

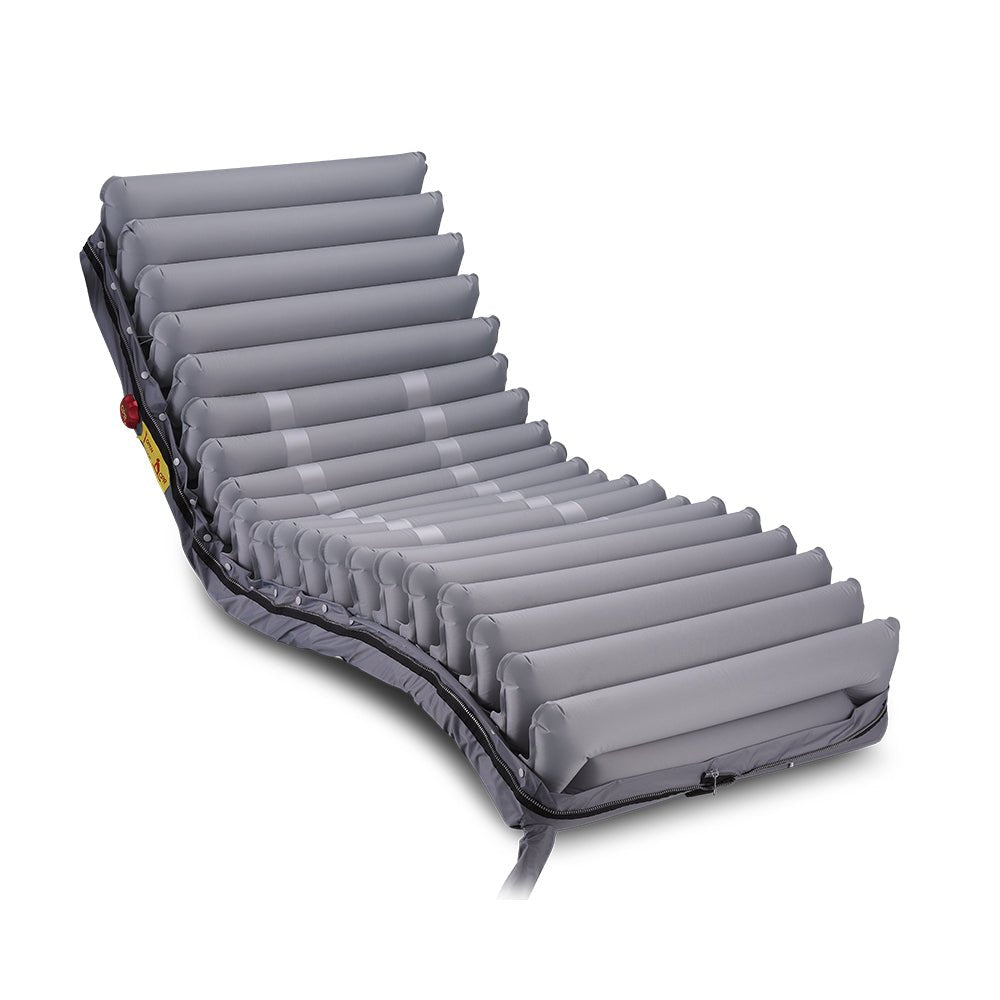

  • Cell-on-Cell Design (8"): The bottom cells prevent the patient from bottoming out in case of power failure

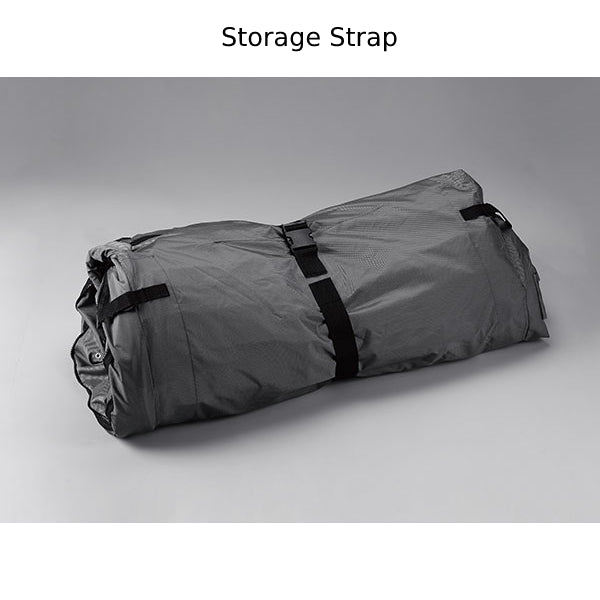

  • Storage Strap: Roll the pump in the mattress and fasten the storage strap for secure & organized mattress storage
Specification

Size

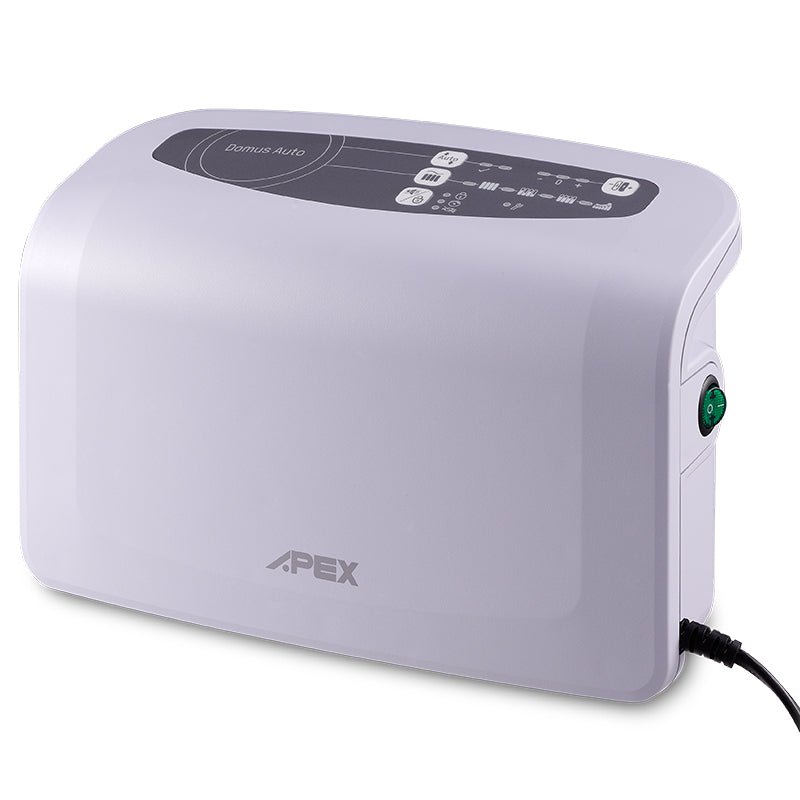

  • Pump: 11" x 7" x 5" (29x18.5x12.6cm)
  • Mattress 1:
    • 79" l x 31" w x 8" h (200x80x20.3cm)
    • 79" l x 35" w x 8" h (200x90x20.3cm)
    • 79" l x 37" w x 8" h (200x95x20.3cm)
    • 79" l x 39" w x 8" h (200x100x20.3cm)
  • Mattress 2:
    • 79" l x 31" w x 5" h (200x80x12.7cm)
    • 79" l x 35" w x 5" h (200x90x12.7cm)
    • 79" l x 37" w x 5" h (200x95x12.7cm)
  • Cell Height:
    • Mattress 1: 20" x 8" (51x20cm)
    • Mattress 2: 17" x 5" (43x13cm)
  • Weight:
    • Pump: 5 lbs.
    • Mattress 1: 15 lbs.
    • Mattress 2: 12 lbs.
  • Maximum Patient Weight:
    • Mattress 1: 551 lbs.
    • Mattress 2: 441 lbs.

Material

  • Pump: Flame retardant ABS
  • Mattress:
    • Cover: Stretch PU
    • Cell: Nylon / TPU

Details

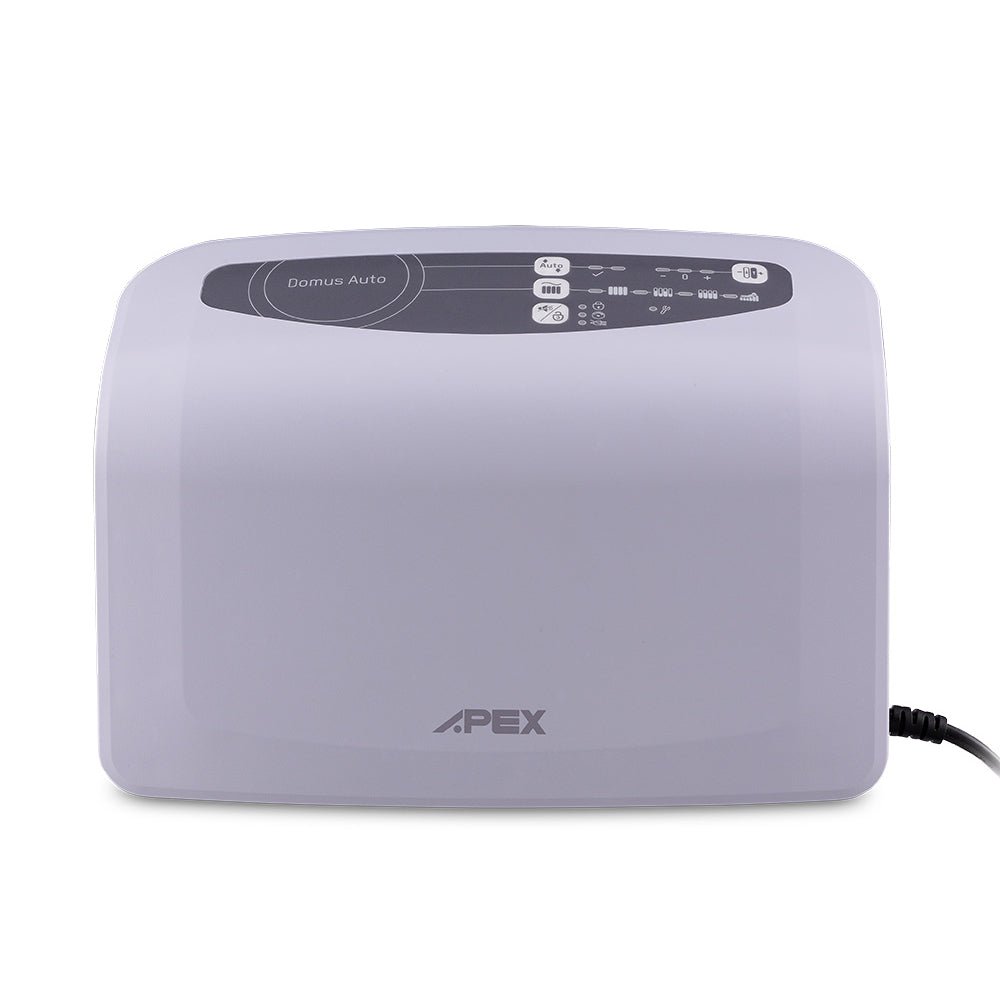

  • Pump:
    • Supply Voltage: AC 220 - 240V, 50Hz
    • Operating Cycle: 10 mins
  • Mattress 1:
    • Mattress type: 8" Replacement
    • Alternating: 1 - in - 2
    • Flame Retardant: EN 597-1 & EN 597-2
  • Mattress 2:
    • Mattress type: 5" Overlay / 5" + 3" Replacement
    • Alternating: 1 - in - 2
    • Flame Retardant: EN 597-1 & EN 597-2
